KIDWELL ORBIT - Seat Adjustments and Rotation

34
A. Find the red backrest inclination adjustment handle
B. Pull the handle to adjust the inclination position of the safety seat
C. Red indication signifi es positions 1, 2, 3 which are designated for forward placement
of the child to the direction in which the vehicle is moving
D. Blue indication signifi es position 4 which is designated for rearward placement of the
child to the direction in which the vehicle is moving

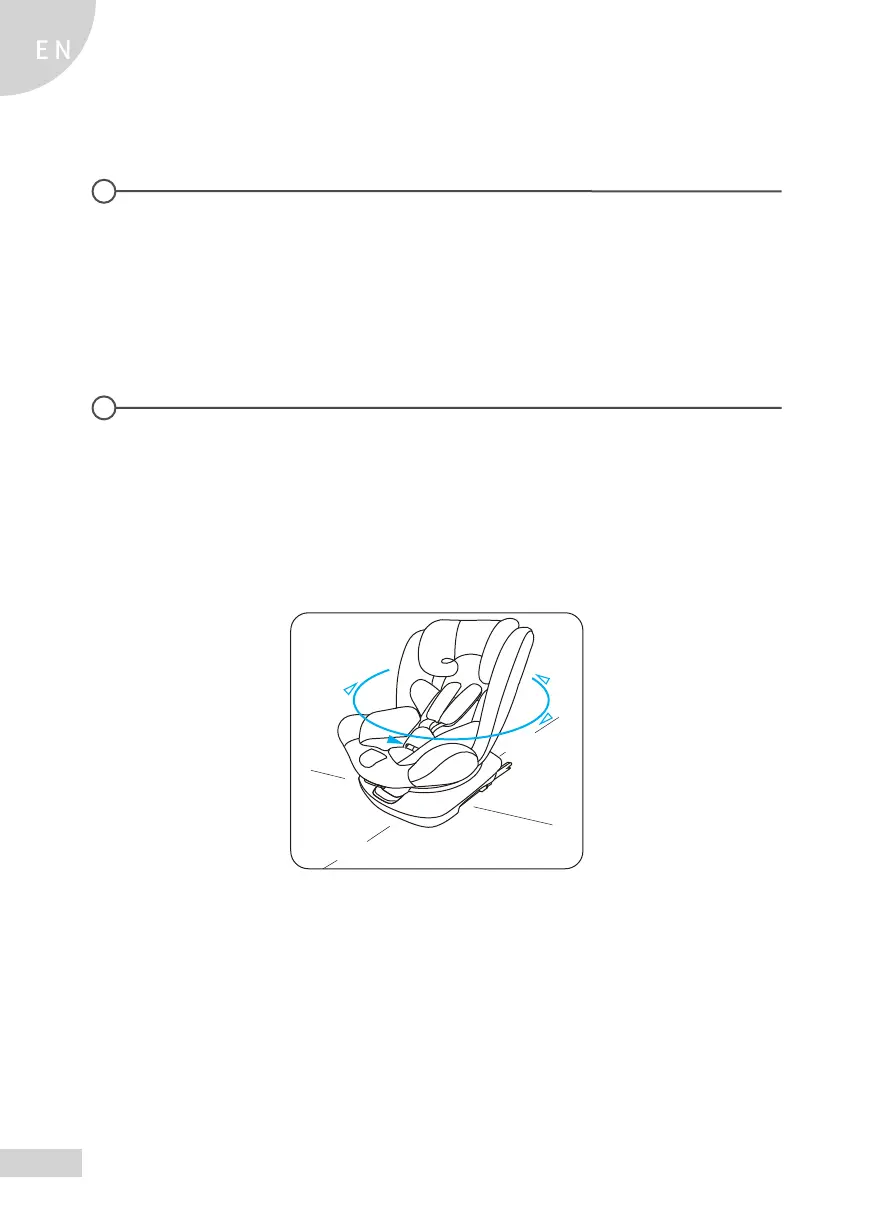

The safety seat is able to be fully rotated by 360 degrees. In this 360-degree rotation there
are 4 safe positions.
ATTENTION: Never use the safety seat if it is situated in a diff erent position than the one
shown in the picture below:
A. Facing rearward to the direction in which the vehicle is moving – only for Groups 0, I
B. Facing forward to the direction in which the vehicle is moving – only for Groups I, II, III
C, D.Lateral position – using this position is forbidden, when the vehicle is moving. This
position can be used when the vehicle is parked.
E. Pull the rotation handle placed under the safety seat (see the Product Components,
element 9) to unlock the rotation mechanism. Rotate the safety seat, select one of the
positions and release the handle. A “Click” sound will signify that the rotation mechanism
is locked. Grab the entire safety seat fi rmly and make sure that the rotation mechanism
is properly locked and the safety seat cannot be rotated at this time.
ADJUSTING BACKREST INCLINATION
ROTATING THE SAFETY SEAT
4
5
REMEMBER: All of the parts of the harness system needs to be put in a secure place and
saved for potential use in the future.
Forward
Rearward
Lateral
Lateral
