KII AUDIO THREE - Page 17

English
Setup examples A | Kii THREE used with computer + USB to digital interface.
B | Kii THREE used as an active speaker within a regular, classic Hi system.
The Kii THREE simply replaces a poweramp
(or two monoblocks) and the passive speakers.

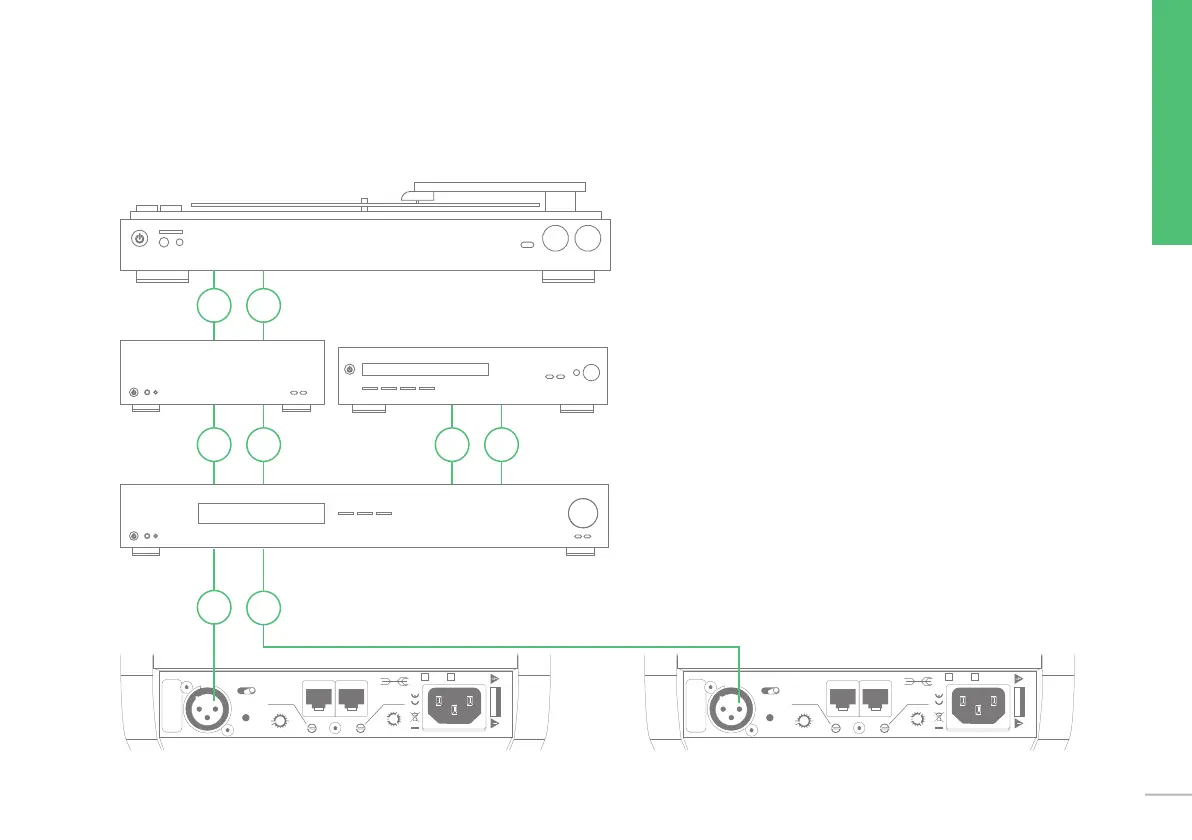

Multiple sources can be connected to an
analog preamp which provides source selection
and volume control.
The preamp outputs are connected to the
analog inputs of the Kii THREE:
Set select switch in middle position
No CAT5 connection is necessary.
