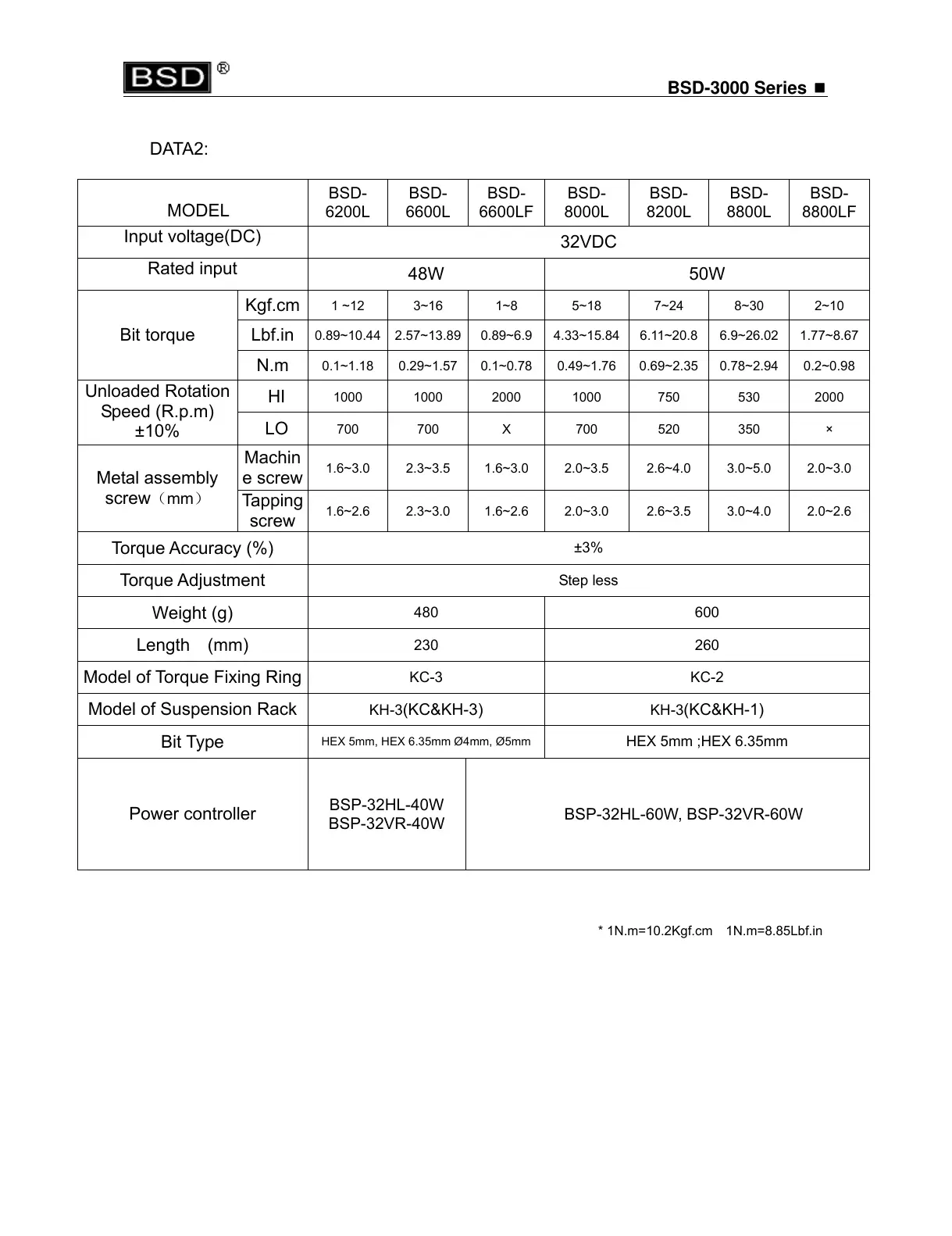

BSD-3000 Series
DATA2:
MODEL
BSD-
6200L
BSD-
6600L
BSD-
6600LF
BSD-
8000L
BSD-
8200L
BSD-
8800L
BSD-
8800LF
Input voltage(DC)
32VDC
Rated input
48W 50W
Bit torque
Kgf.cm
1 ~12 3~16 1~8 5~18 7~24 8~30 2~10
Lbf.in
0.89~10.44 2.57~13.89 0.89~6.9 4.33~15.84 6.11~20.8 6.9~26.02 1.77~8.67
N.m
0.1~1.18 0.29~1.57 0.1~0.78 0.49~1.76 0.69~2.35 0.78~2.94 0.2~0.98
Unloaded Rotation
Speed (R.p.m)
±10%
HI
1000 1000 2000 1000 750 530 2000
LO
700 700 X 700 520 350 ×
Metal assembly
screw（mm）
Machin
e screw
1.6~3.0 2.3~3.5 1.6~3.0 2.0~3.5 2.6~4.0 3.0~5.0 2.0~3.0
Tapping
screw
1.6~2.6 2.3~3.0 1.6~2.6 2.0~3.0 2.6~3.5 3.0~4.0 2.0~2.6
Torque Accuracy (%)
±3%
Torque Adjustment
Step less
Weight (g)
480 600
Length (mm)
230 260
Model of Torque Fixing Ring
KC-3 KC-2
Model of Suspension Rack
KH-3(KC&KH-3) KH-3(KC&KH-1)
Bit Type
HEX 5mm, HEX 6.35mm Ø4mm, Ø5mm
HEX 5mm ;HEX 6.35mm
Power controller
BSP-32HL-40W
BSP-32VR-40W
BSP-32HL-60W, BSP-32VR-60W
* 1N.m=10.2Kgf.cm 1N.m=8.85Lbf.in
