SECTION 1
INFORMATION AND REQUIREMENTS
1.0 APPLIANCE INFORMATION
Natural Gas LPG
Main injector : (1 off) 1.65mm (MC) 1.20mm (MC)
1.8mm (RC & EFC)
Pilot Type - S.I.T.140 Series Size 27 Size 19
Max. Gross Heat Input : 4.6kW 4.8kW
Min. Gross Heat Input : 3.2kW 3.4kW
Gas Rate : 0.427 m
3
/hr 0.180 m
3
/hr
Cold Pressure : 20.0+/-1.0 mbar 37.0+/-1.0 mbar
Ignition : Push-button Piezo (MC models only)
Ignition : Electronic (RC & EFC models only)
Electrode Spark Gap : 4.0mm
Weight (without fender) : 25.5 kg inclusive of flue pipe and terminal

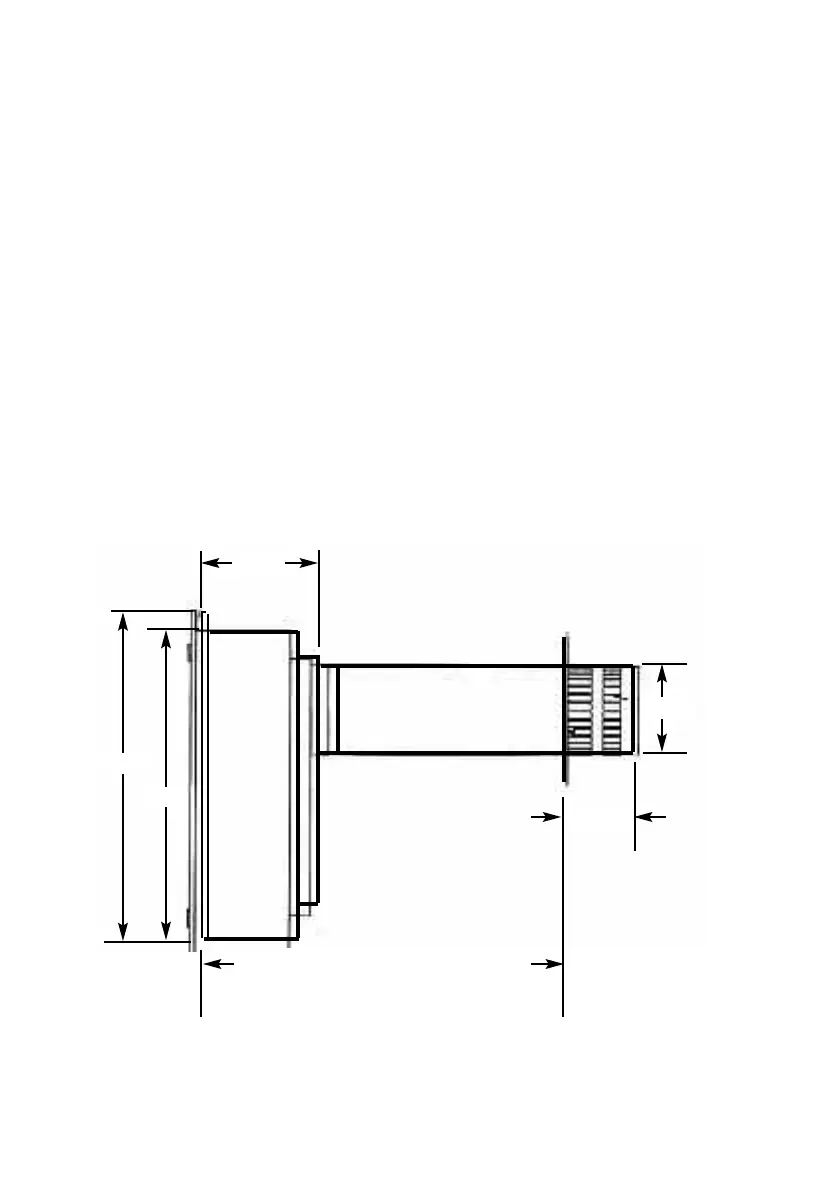

Fig. 1
3
185mm
285mm Min, 625mm Max with standard flue
duct on MC / RC models. 248mm Min,
588mm Max with standard flue duct on EFC
models. A cost option extended flue duct (part
no. CV-MARLT) can be purchased to increase
this dimension on NG MC / RC models to
1010mm or 973mm on NG EFC models)
120mm
580mm
562mm
150mm
