From Main Supply
Bypass
Inlet
To Drain
Outlet
To Home
Overflow
To RO Storage
Tank
To Drain
From
Main Supply
By-pass
To Drain
Overflow
To Drain
To home
To RO Storage tank
Air Gap
To Drain
Air Gap

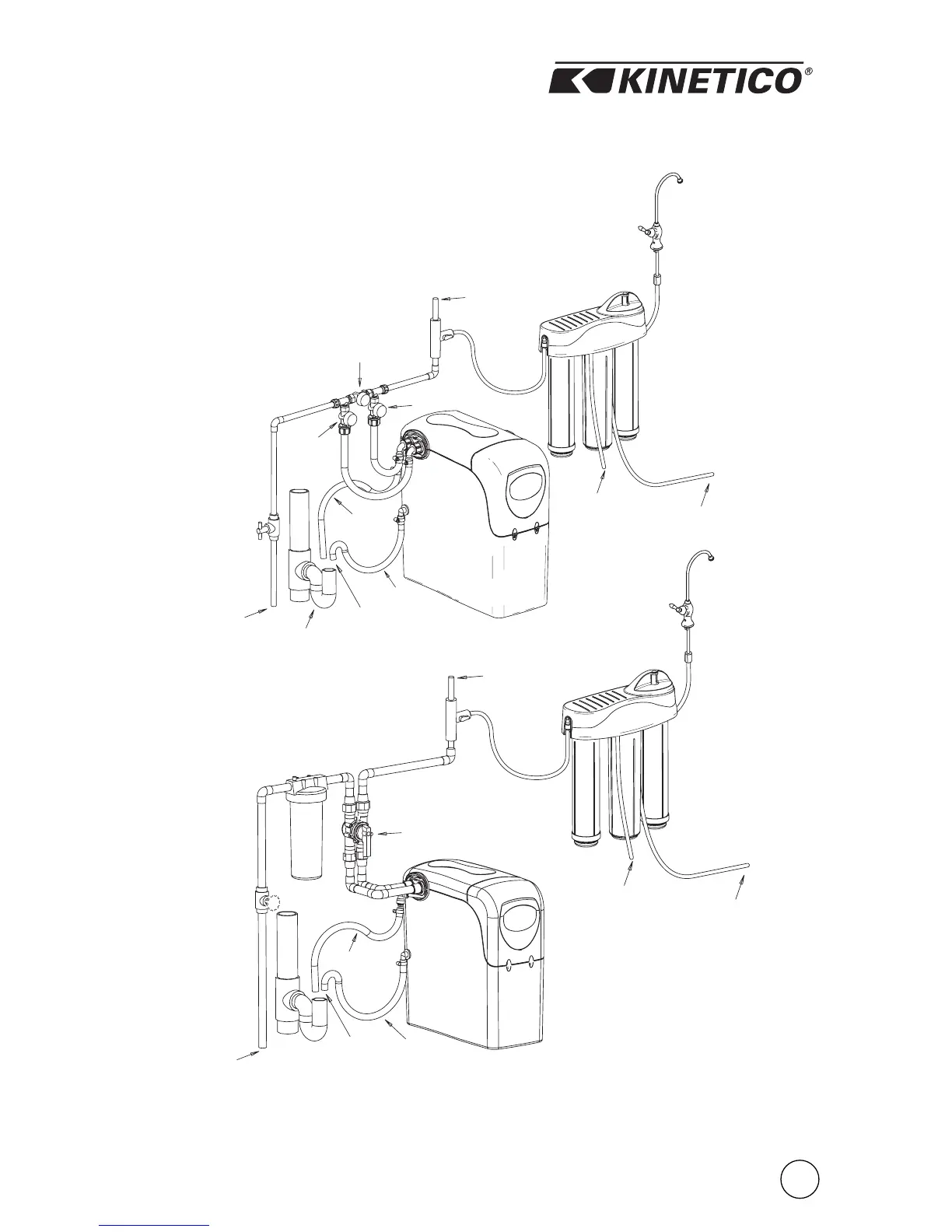

Two typical Kinetico 2020c installations shown with Kinetico reverse
osmosis Drinking Water System.Your installation may vary.
Note: waste connections or drain outlets shall be designed and constructed to provide
for connection to the sanitary waste system through an air gap of 2 pipe diameters
or 1 inch, whichever is larger.
