King Canada KC-902C - GETTING TO KNOW YOUR 9 BANDSAW

GETTING TO KNOW YOUR 9” BANDSAW

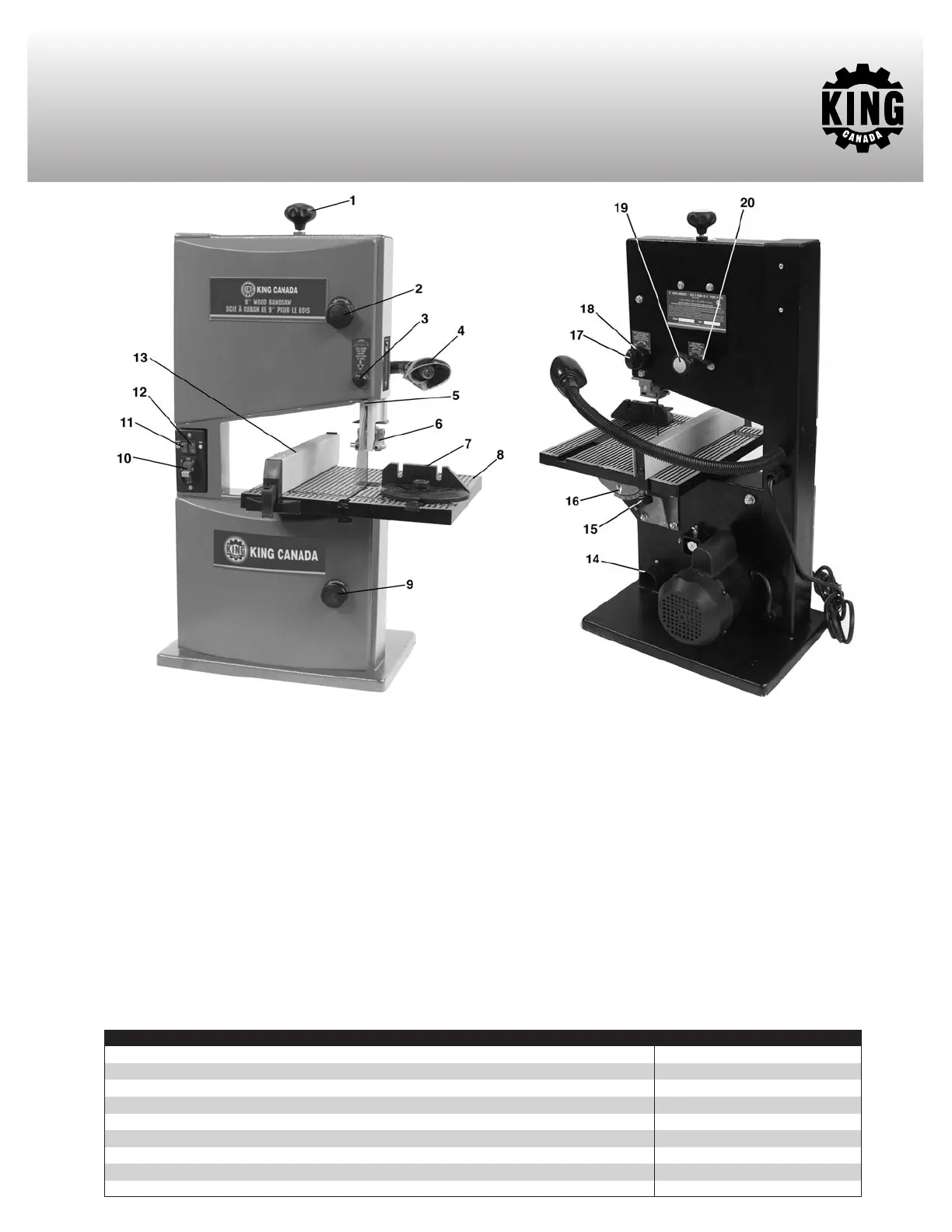

1. Tension adjustment knob. This feature controls the amount of
blade tension. Proper blade tension is important to make accurate
cuts.
2.
Upper hinged door lock knob. Gain access to blade.
3.
Laser adjust knob. Allows position of laser to be adjusted.
4. Work light.
5.
Laser.
6.
Upper blade guide assembly . The blade guides support the blade
and prevent it from twisting during operation. An adjustment is
necessary when the blade is changed or replaced.
7. Miter gauge. Used to push workpiece towards blade or for miter cuts.
8.
T
ilting table
.
9.
Lower hinged door lock knob. Gain access to blade.
10. Main
On/Off switch.
The On/Of
f switch has a locking feature. This
feature is intended to help prevent unauthorized use.
1
1.
W
ork light On/Off switch
.
12. Laser On/Off switch.
13. Rip fence. Use as a support guide for ripping operations.
14.
Dust port. This feature helps eliminate sawdust from inside the
machine. A 1-1/4” vacuum hose or dust collector adaptor can be
used for optimal sawdust removal.
15.
Table lock knob. Loosening this knob allows the table to be tilted
for bevel cutting.
16.
Bevel scale pointer. The bevel scale shows the degree to which
the table is tilted for bevel cutting.
17.
Upper blade guide lock knob. Loosen this knob before adjusting
blade guide height.
18.
Upper blade guide adjust wheel.
The upper blade guide
assembly should be lowered to just above the workpiece while
cutting.
Always adjust and then lock it by tightening the upper blade
guide lock knob before turning on the bandsaw.
19.
Blade tracking lock knob. Locks the blade tracking adjustment.
20.
Blade tracking adjust handle.
This adjust handle should be
adjusted to maintain proper blade tracking and locked using the
blade tracking lock knob.
MODEL
K
C-902C
Cutting capacity frame to blade
9
”
Speed 2,750 SFPM
Dimensions (LxWxH)
1
9 1/2” x 1
5” x 28 3/4”
Weight
3
7
.5 lbs
Maximum depth of cut 3 1/2”
Table size 11 3/4” x 11 3/4”
Blade size
59 1/2” x (1/4” - 3/8”) x .0
1
4
Motor
2 Am
p., 1
,700 RPM
Voltage 110V, 1 phase, 60 Hz
