ENGLISH
1. PRODUCT DEFINITION
Control unit for controlling 1 motor to be used for moving rolling gates, with maximum power of 500W.
The Star B plus version control unit is equipped with 433.920 MHZ radio receiver and an EEPROM memory with a 50-user capacity, and
is able to operate with all transmitters in the Multipass, Multipass Roll and Easyroll families at 433.920 MHz.
4. OPERATION
The 4 dip-switches are used to set the operating mode and the radio channel enabled.
2. TECHNICAL SPECIFICATIONS

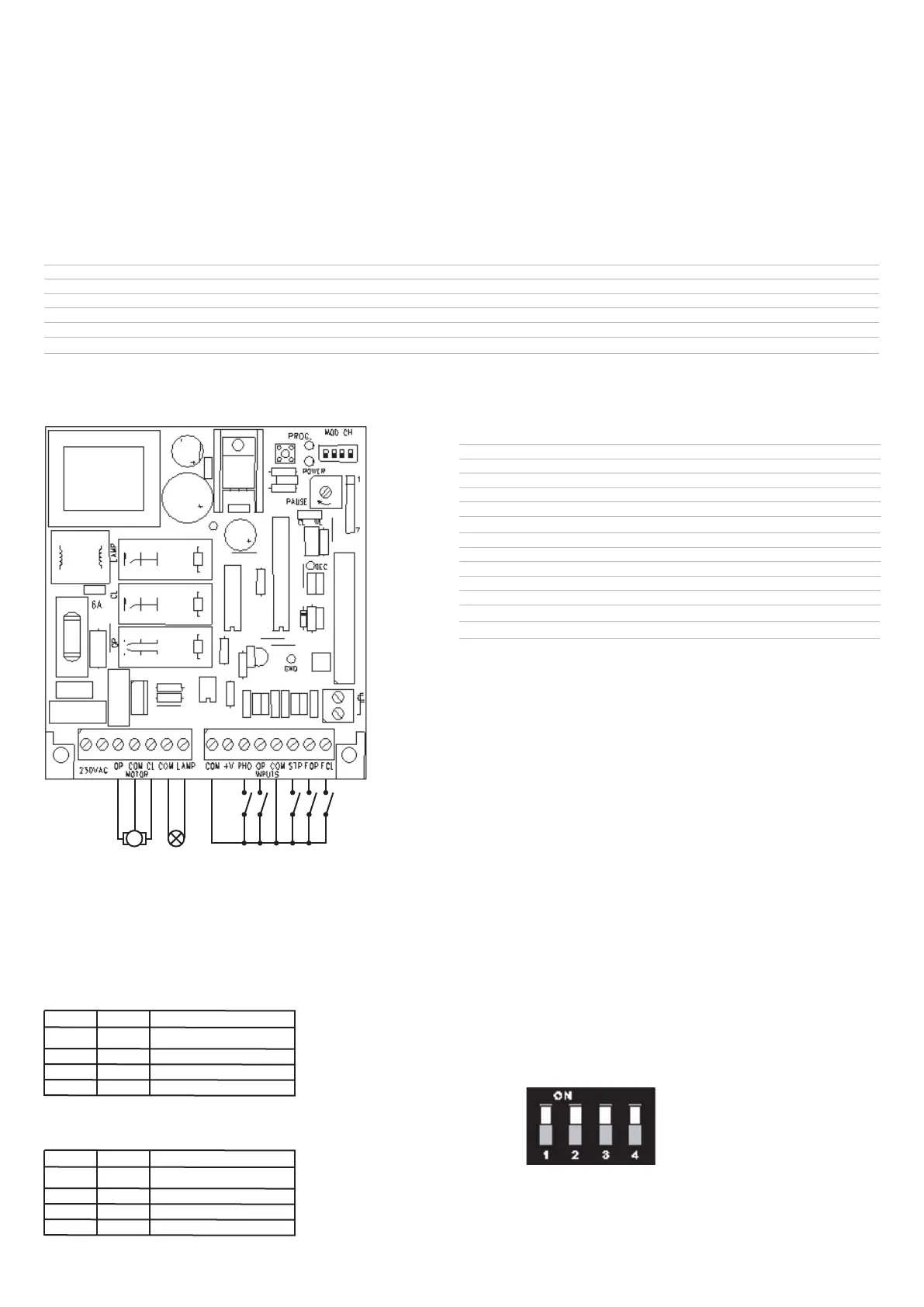

3. CONNECTIONS
Power supply
230 Vac
Motor output
230 Vac, max 500W
Radio receiver
433.920 MHz
Memory capacity
Safety devices
Inputs
50 users
Photocell
OPEN contact, STOP contact, opening limit switch, closure limit switch
Outputs
Courtesy light and autonomous flashing light (max 500W), accessories power supply (24VDC, max 90mA)
4.1 SETTING THE MODE
230Vac
230Vac power supply
OP
MOTOR – OPEN terminal
COM
MOTOR – COMMON
CL
COM
LAMP
MOTOR – CLOSE terminal
Courtesy light/flashing light common
Uscita luce di cortesia / lampeggiante
COM
Photocell contact common
+V
24Vdc photocell power supply
PHO
Photocell input
OP
STP
COM
FOP
OPEN command input
Limit switch common and OPEN and STOP commands
STOP command input
FCL
Opening limit switch input
Closure limit switch input
I
I
STEP-BY-STEP
AUTOMATIC
SEMIAUTOMATIC CL.
SEMIAUTOMATIC OP.
4.2 SETTING THE RADIO CHANNEL ENABLED
M
MOD CH
