The Wall Mount Power Inserter:
• Can be mounted in most standard electrical boxes.
• Requires a +12 Volt DC power source. (Inadequate voltage may cause the green LED to not illuminate and the unit to
not function properly.
• Requires .25” female spade connectors for power and ground connections.
• Has an internal fuse rated @ 400 mA max. If tripped, the fuse will reset when the circuit cools.
• Is not an amplier. No devices other than those shown below should be connected.
IMPORTANT!
Make sure power inserter is turned off
(button not depressed)
while making connections.

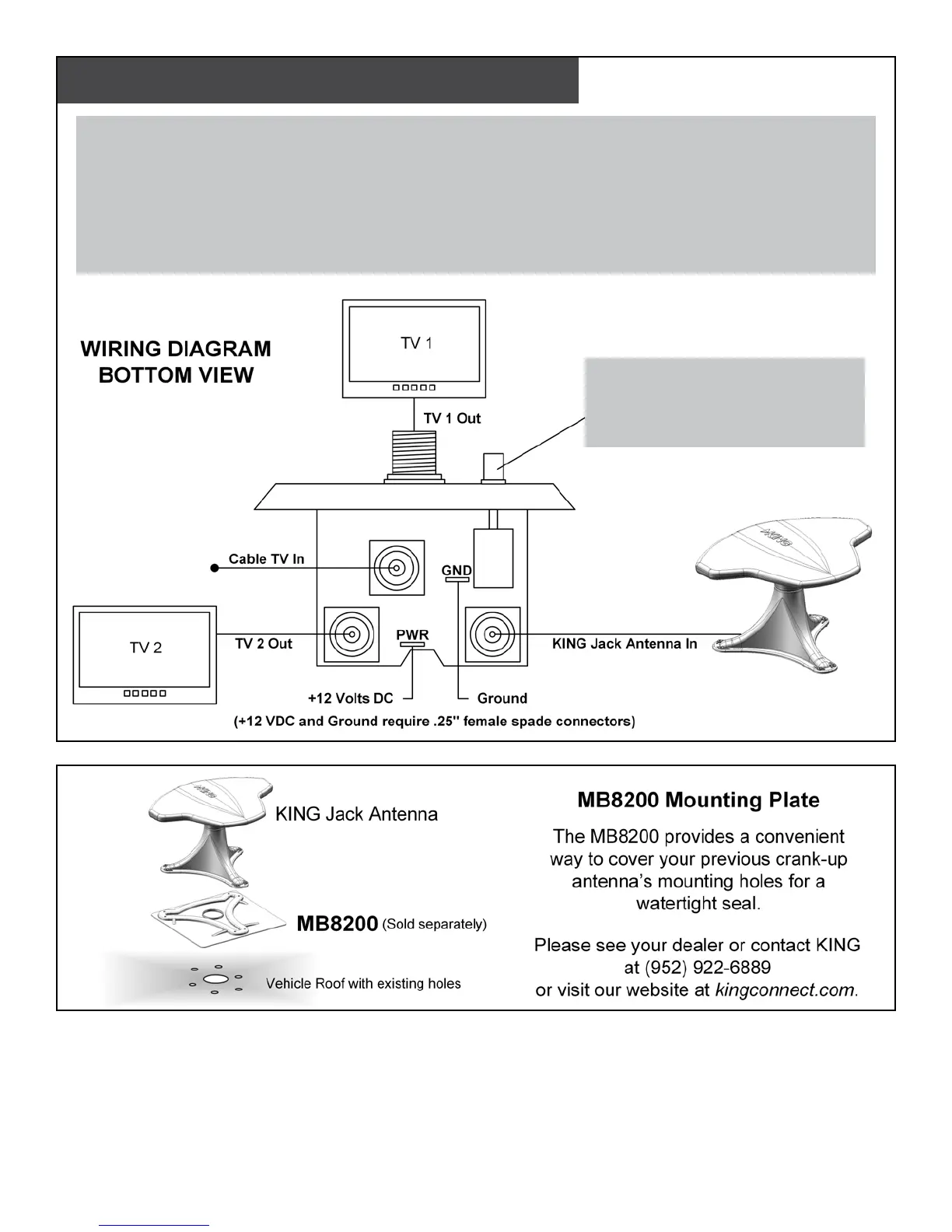

POWER INSERTER INSTALLATION
