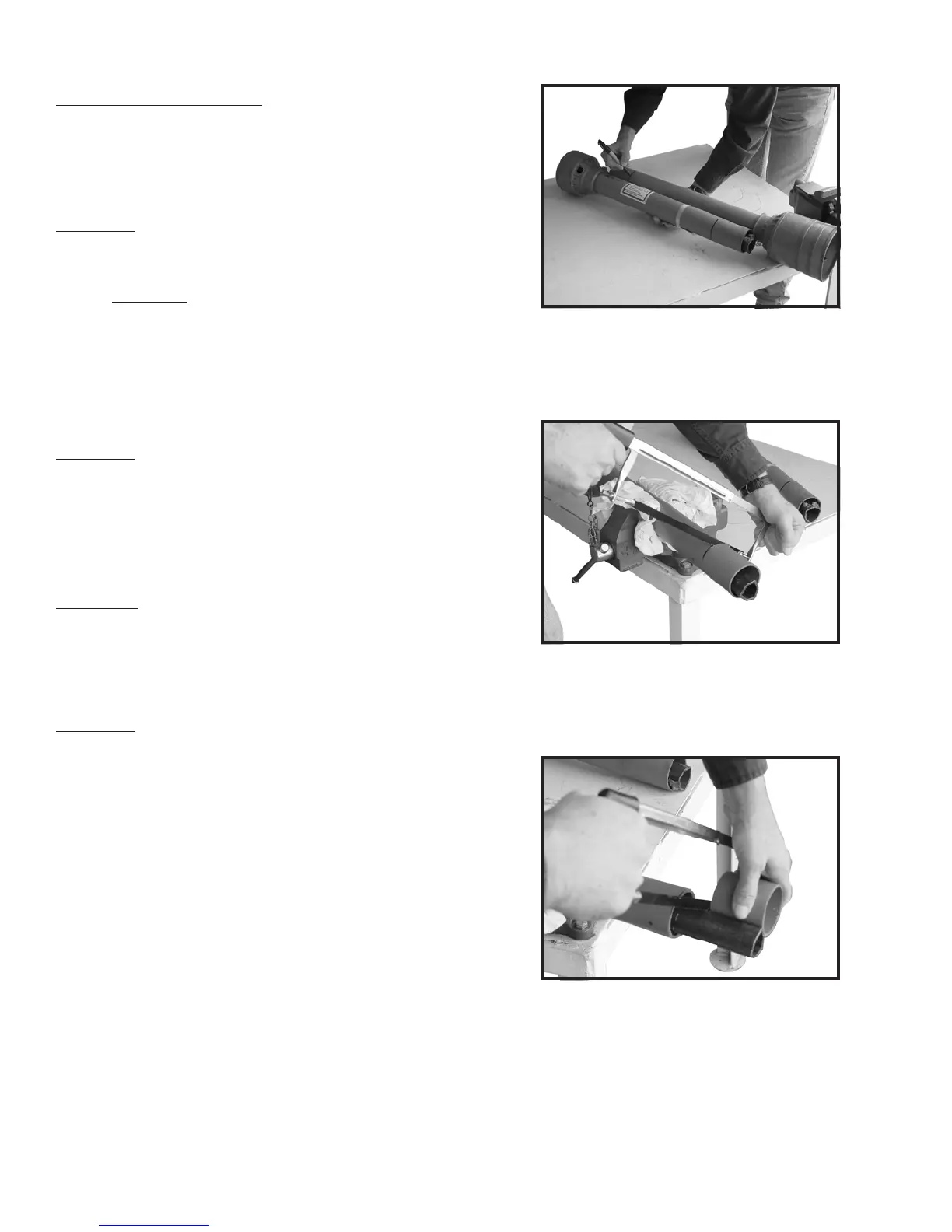

STEP 1
Cutting the PTO shaft to length.
NOTE: Be sure to cut equal
lengths of each PTO shaft section.
Clamp end of PTO shaft in a vice
and cut off shield where marked.
(Figure 1-A & 1-B)
STEP 2
Using cut section of the shield as
a guide cut shaft off the same
amount. (Figure 2)
STEP 3
Repeat steps 1 and 2 for other
PTO shaft section.
STEP 4
Use a file to deburr PTO shafts.
Clean up all chips, burrs and fil-
ings from both ends of the PTO
shaft.
Note: If you shear the bolt that attaches
the PTO shaft to the gearbox re-
place with a grade 2 bolt only. Re-
placement with another grade of
bolt will void your warranty and may
cause terminal damage to the
PTO shaft, gearbox, or tractor.
SIZING PTO SHAFT
Figure 1-A
Figure 1-B
Figure 2
