King Technology Pool Frog 6100 - POOL FROG Cycler Maintenance; Replacing Control Dial O-Rings

21
Center of locking pin

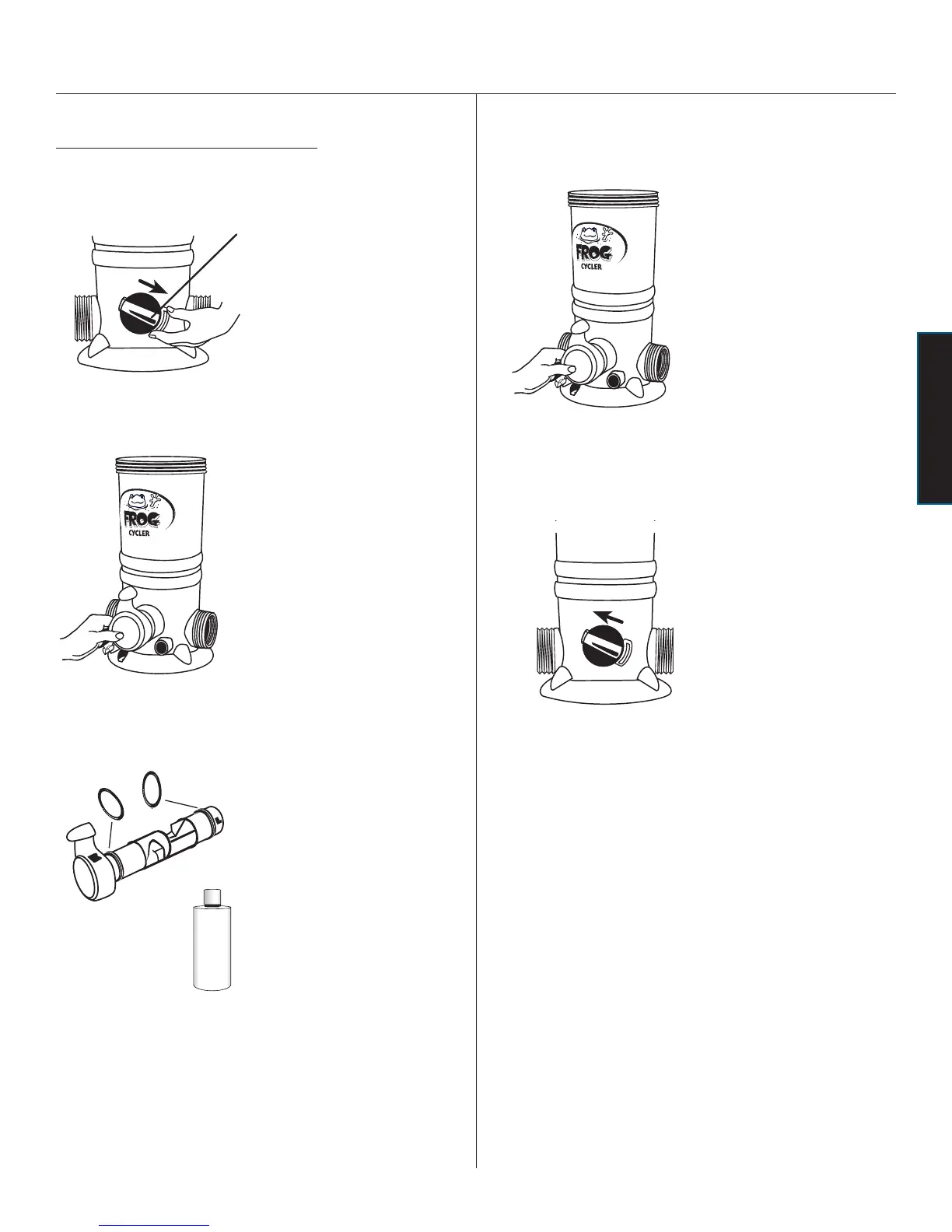

In the back of the POOL FROG
Cycler, depress center of locking
pin with a  nger and pull pin out
of dial.
Turn control dial back and forth
as you pull it out of the housing.
Replace both o-rings. Apply
silicone lubricant that came
with your POOL FROG Cycler
on o-rings.
Carefully insert control dial
back into housing.
Replace locking pin by
pushing it through the slots
on the dial until it locks into
place.
POOL FROG Cycler Maintenance
S
I
L
I
C
O
N
E
L
U
B
R
I
C
A
N
T
5.
1.
3.
2.
4.
Product # 01-22-9971
Troubleshoot
Replacing the Control Dial O-Rings
