King Electrical Floor Heating Cable Installation Manual
10

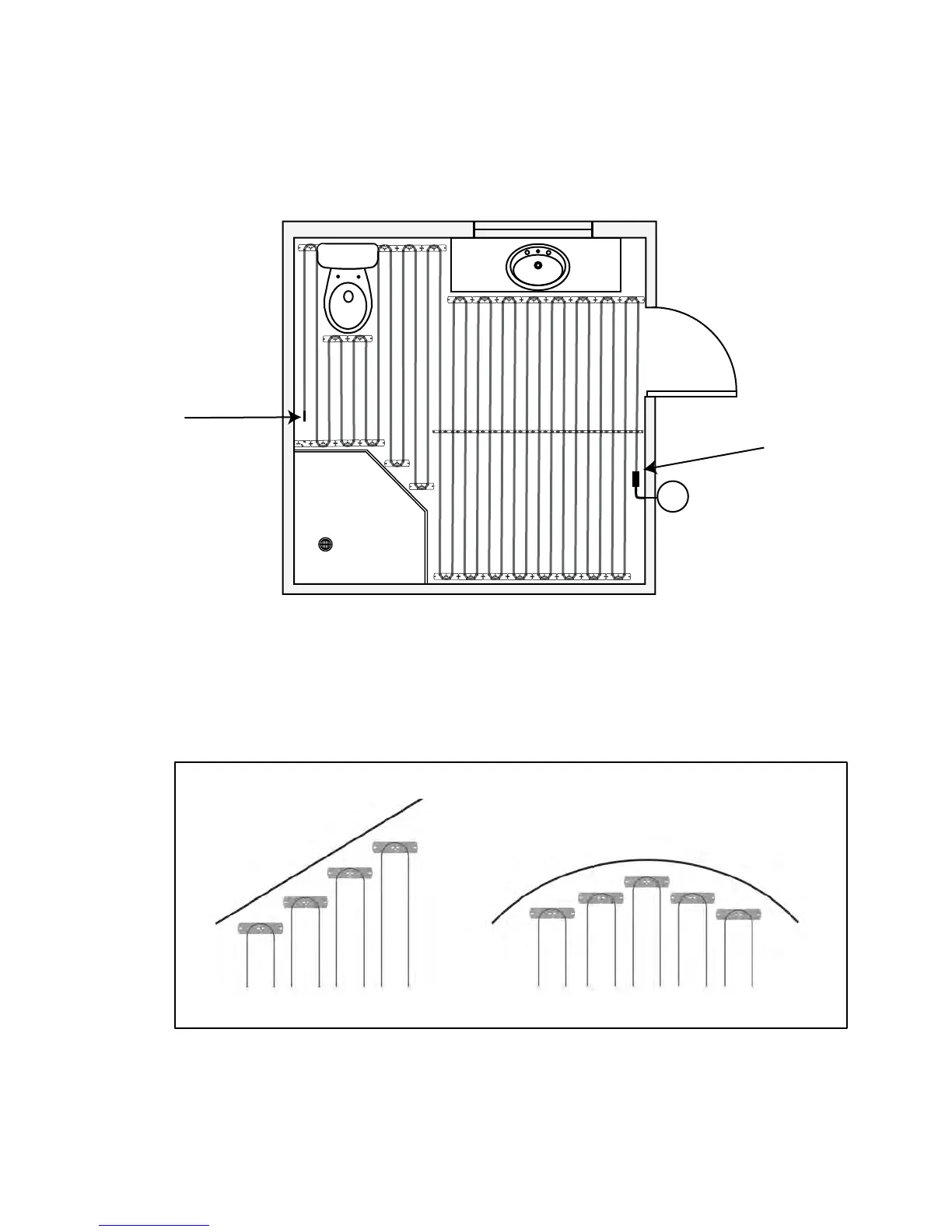

3.2 Mark the location of the thermostat on the drawing. This is where the cold lead will drop from the
wall box and become the starting point for the heating cable as well as where the floor sensor will
be installed.
(continued)
STEP 3: Thermostat location and strapping layout
T
End Splice
Cold Lead
Thermostat
3.2 For walls or obstructions with angles or curves, the strapping can be cut into smaller sections and
installed as demonstrated in figure 1.7
Figure 1.7
To Next Page
