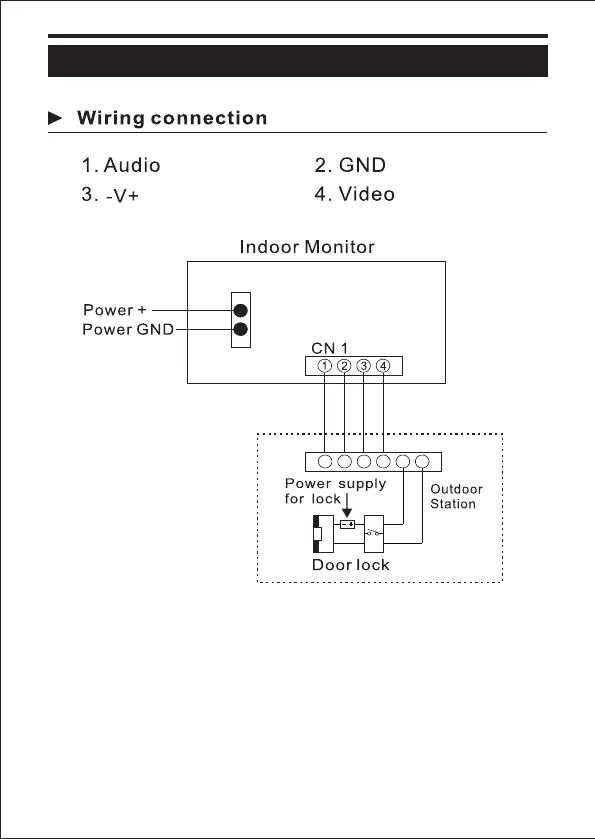

KING KS - System Diagram and Wiring; Wiring Connection Details

1.Maximum 3 Indoor Monitors and 1 Outdoor Station .
3.Each monitor is individually powered.
4.Cables of system: wire ≥0.5 mm , from outdoor station to the farthest
indoor monitor distance ≤70m.
2.Parallen connection.
NOTES:
SYSTEM DIAGRAM
-5-
2
