Fig. 14: Fitting in column
FO 0290
Only qualified personnel should
install the appliance (place in cabinet
and make electrical connection).
Every operation must be carried out
with appliance disconnected from
the electricity supply; when this is not
possible the maximum care is
required when working on the
appliance.
Fixing the oven into kitchen cabinets
Any cabinet containing an electrical appliance
must have the charcteristics held suitable for
this purpose to permit the appliance to operate
to its best potential.
Protection against any possible contact with
the electrical parts must be assured through the
correct installation of the appliance into the
cabinet, in accordance with the current safety
regulations. All parts which assure protection,
even a cover panel (where for example the
appliance is positioned at the beginning or at the
end of the cabinet composition) must be fixed in
such a way that they cannot be removed without
the aid of tools.

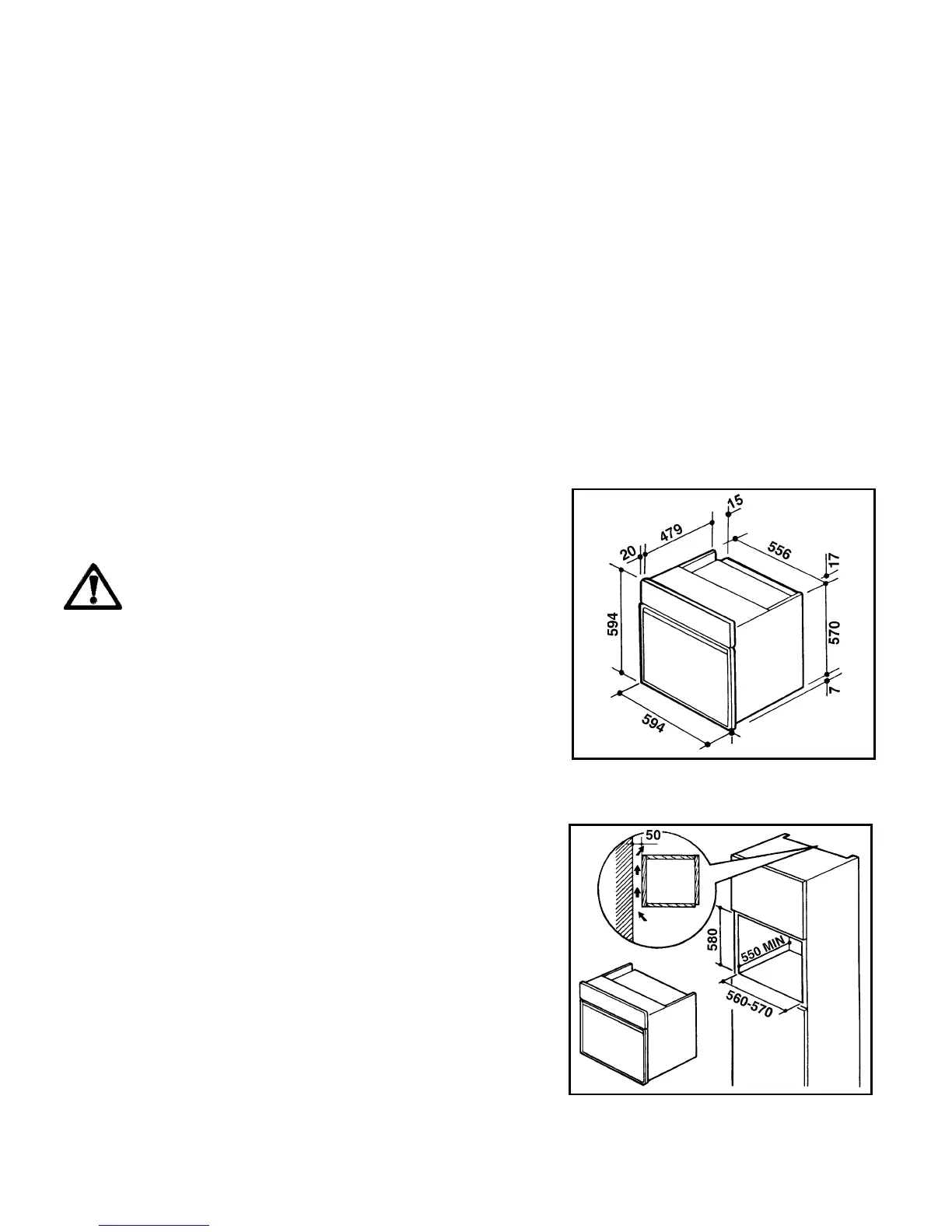

Fig. 13: Dimensions of the oven
FO 0208
Building in
Instructions for the installer
Technical Data
Recess dimensions:
Height in coloumn cm 59,1
undertop cm 58,0
Width cm 55,0
Depth cm 56.0
Internal oven dimensions:
Height cm 32,5
Width cm 42,0
Depth cm 39,0
Volume dm
3
53
Oven elements
Bottom heating element 1000 W
Top heating element 800 W
Full Oven (Top+Bottom) 1800 W
Grill heating elements simple 1750 W
double 2550 W
Fan Oven heating element 2000 W
Oven lamp 25 W
Convection fan 30 W
Cooling fan 20 W
Maximum power rating 2600 W
Voltage tension (50 Hz) 230 V
