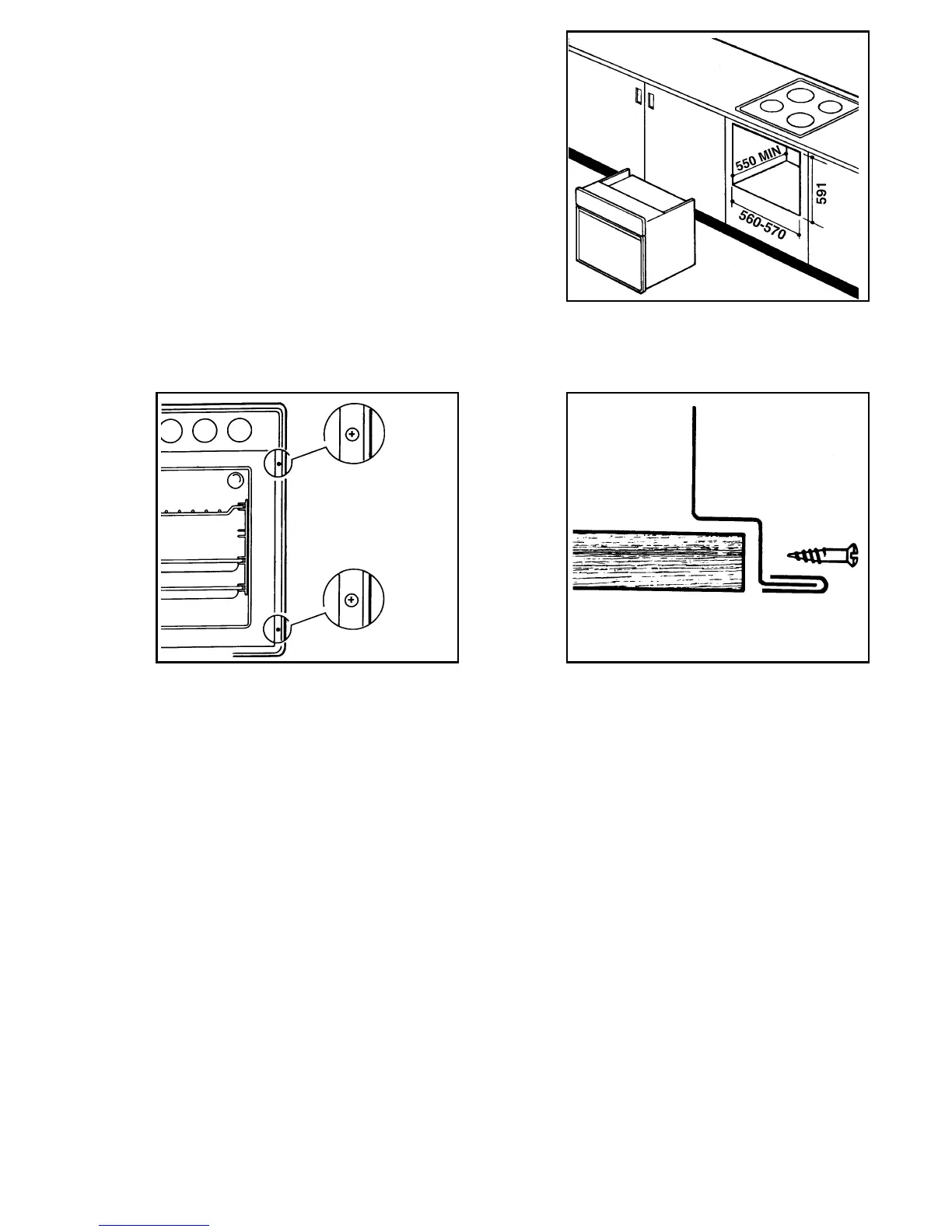

Fig. 15: Fitting under work-surface
FO 0292
Fitting and assembly
- Insert the appliance into the cabinet space;
- open the oven door and fix the body of the
oven to the cabinet using four wood screws
of a suitable size for the holes already made
around the oven (see figs 16 and 17).
Where both an oven and a cooking hob are being
fitted, the electrical connection for each of these
appliances must be made separately, both for
electrical reasons and to facilitate the frontal
extraction of the oven.
Any extension leads needed should be made
out of cable suitable for carrying the prescribed
power.
Fig. 16
Fig. 17
FO 0039
FO 0986
Electrical connection
Before the appliance is connected:
1) check that the main fuse and the
domestic installation can support the
load;
2) check that the power supply is properly
earthed in compliance with the current
rules;
3) check the double pole switch used for
the electrical connection can be easily
reached with the appliance built in the
forniture unit.
The appliance is supplied with connection
cable provided with plug. The plug has to be
fitted into a proper socket.
In case of a direct connection to the mains,
it is necessary that you install a double pole
switch between the appliance and the
electricity supply, with a minimum gap of 3
mm. between the switch contacts and of a
type suitable for the required load in
compliance with the current rules.
The connection cable has to be placed in
order that, in each part, it cannot reach a
temperature 50 °C higher than the room
temperature.
Should the supply cable need to be
replaced, use only the following cable types
(section 3 x 1,5mm
2
): - H05 RR-F; - H05
VV-F;- H07 RN-F; -H05 RN-F; - H05 BB-F;
- H05V2V2-F (T90).
After the connection is carried out, test the
heating elements for about 3 minutes.
