ROTARY MOWER ASSEMBLY INSTRUCTIONS continued...
STEP 8
At this time, tighten the four (4) 5/8" x 3-1/2" bolts attaching the lift arms and
the lift arm braces to the mower. Also tighten the 5/8" x 6-1/2" bolt that joins
them with the swivel link assembly.
STEP 9
Lift the rear of the mower high enough for the tail wheels to be out of contact
with the ground. Use blocks to ensure that the mower doesn’t fall. Loosen
tail wheel arm adjusting bolts and jamb nuts. The tail wheel arms will slide in

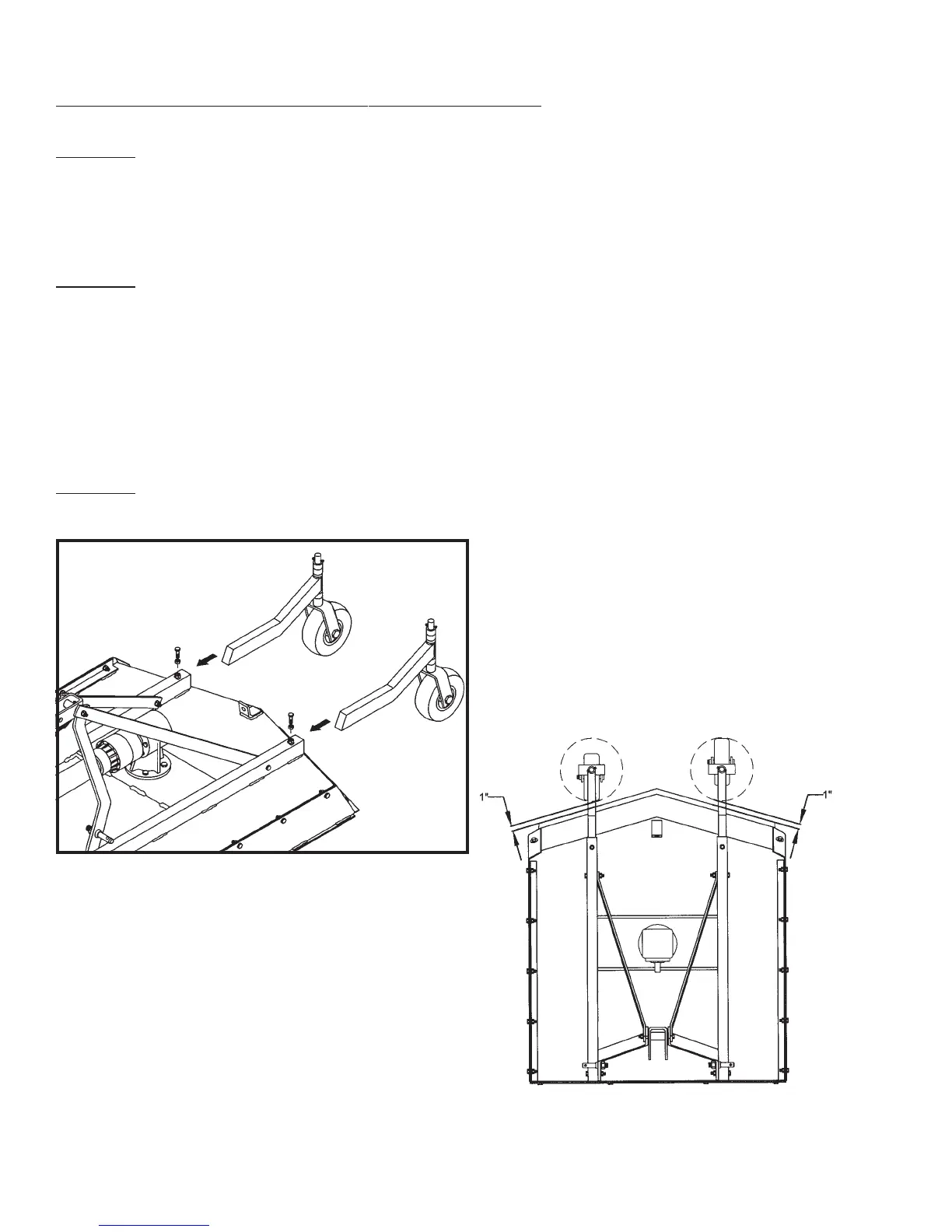

or out of the deck tubes. See Figure C. Adjust tail wheel arms in such a
manner that at the closest position the tail wheel is at least 1" from any
portion of the rear deck. See Figure D.
STEP 7
Tighten tail wheel arm adjustment bolts and jamb nuts.
Figure C
Figure D
10
