11
BEFORE PUTTING ROTARY MOWER INTO SERVICE
(
IMPORTANT-INSTRUCTIONS PRIOR TO START UP)
SHIPPED WITHOUT OIL IN GEAR BOX AND WITHOUT BEING
GREASED. UNIT MUST BE SERVICED BEFORE USING.
• Fill Gearbox using Multi-Purpose Gear Oil (I.E. S.A.E. 80w/90 or
S.A.E. 85w/140 Multi-purpose gear oil.)
• For all Grease Fittings use TYPE/grade II tube grease.
STEP 1 Place mower so that the deck is secure and level.

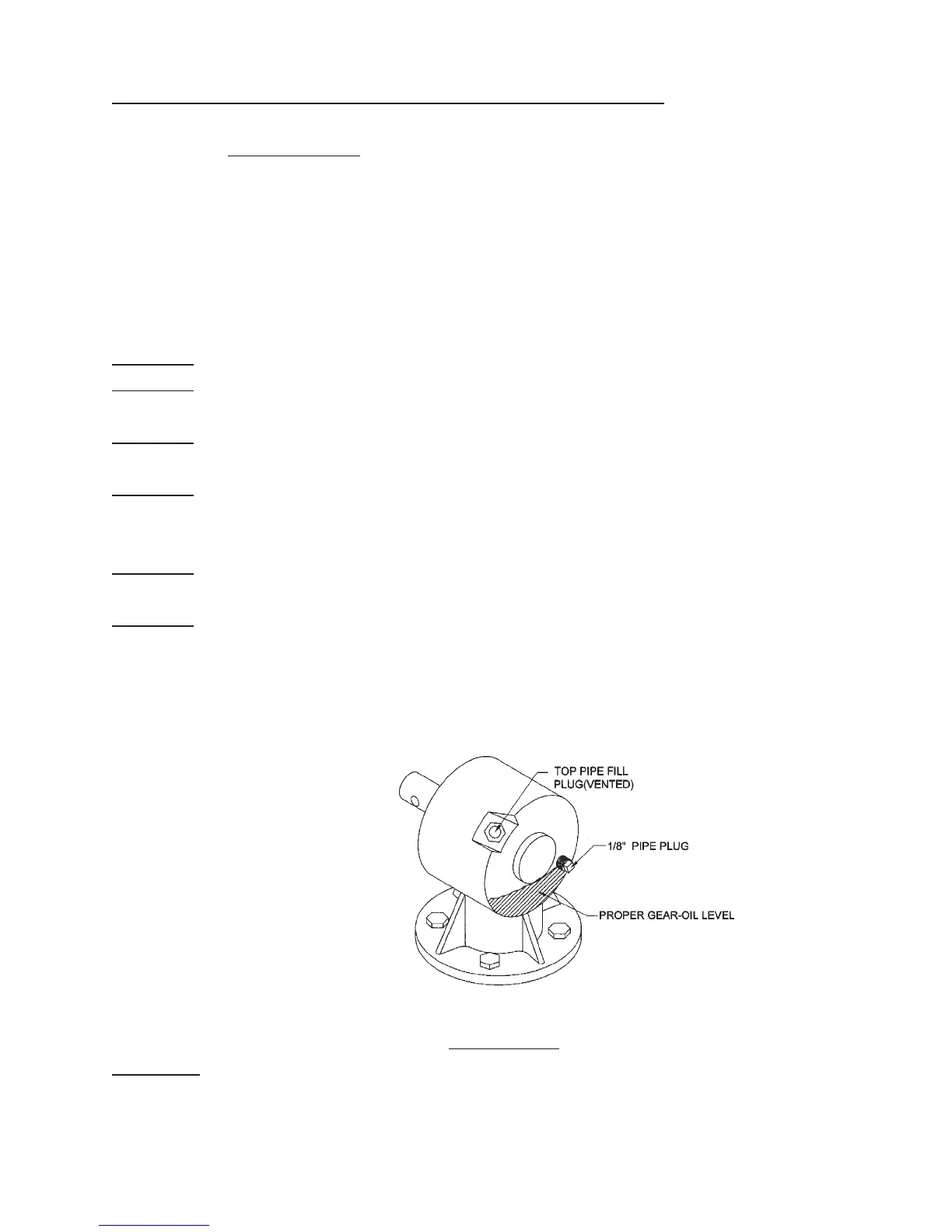

STEP 2 Remove 1/2” Pipe Plug (Located at top of gearbox) and 1/8” Pipe
Plug (located at lower 1/3 of gearbox.
STEP 3 Fill gearbox using multi-purpose gear oil through top 1/2” fill hole
until gear oil is level with lower 1/8" hole.
STEP 4 Replace both the 1/2” pipe plug (located at top of gear box) and 1/
8" pipe plug (located at lower 1/3 of gear box) and clean away any
excess oil.
STEP 5 Grease wheel axles (2), wheel forks (2), and PTO shaft universal
joints (2). (Figure E on page 24)
STEP 6 Check all bolts and nuts to insure they are tight.
CAUTION:
DO NOT over fill gearbox. This could cause damage to oil seals and can
cause permanent damage to the gearbox. This issue will not be covered
under warranty.
