KINGROON KP3S PRO - Layer Fan Installation; Back Wiring Management

Instagram Printables

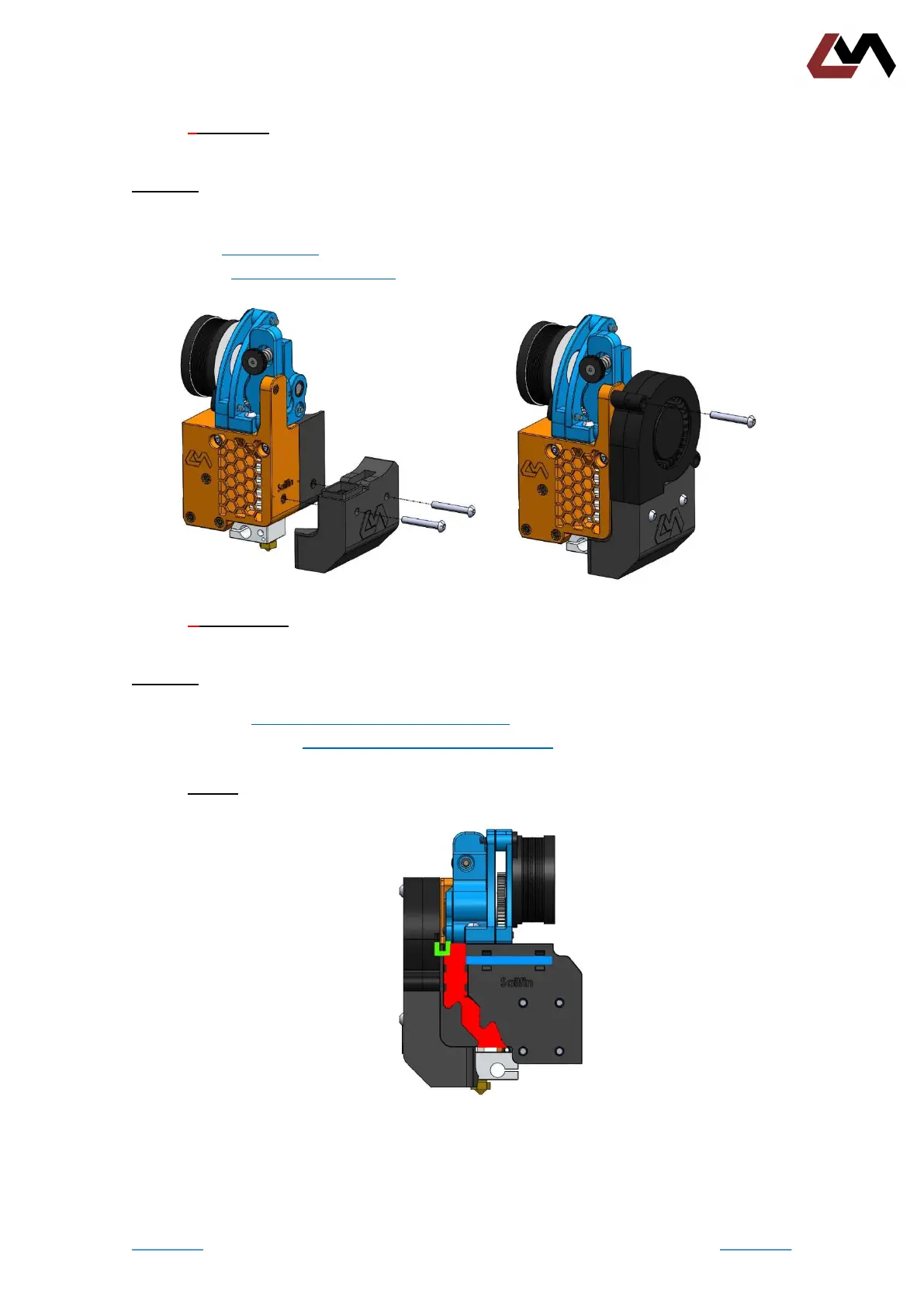

3.5 Layer fan
Parts list
 1unit – Layer_fan_sailfin_pro
 1 unit – Fan 5015 24V
 3 units -- Screw DIN 7380 M3x20
3.6 Back wiring
Parts list
 4 units – Self-Locking Cable Ties 2,5x100 mm
 Opcional : 1 m – Cable Sleeve Self Closing PET 13mm
NOTE: Fix the hotend fan wiring even if it is not assembled
 Green – Layer fan wiring
 Blue – Stepper motor & hotend fan wiring
 Red – Heater Cartridge & thermistor wiring
