KINTERA KF Series - Specifications

KINTERA FLOOR MODEL GAS FRYERS OWNER’S/INSTALLER MANUAL
Page 5
Owner’s/Installers Manual Rev 20180822 For Warranty Service Call 866-909-2855
S
PECIFICATION

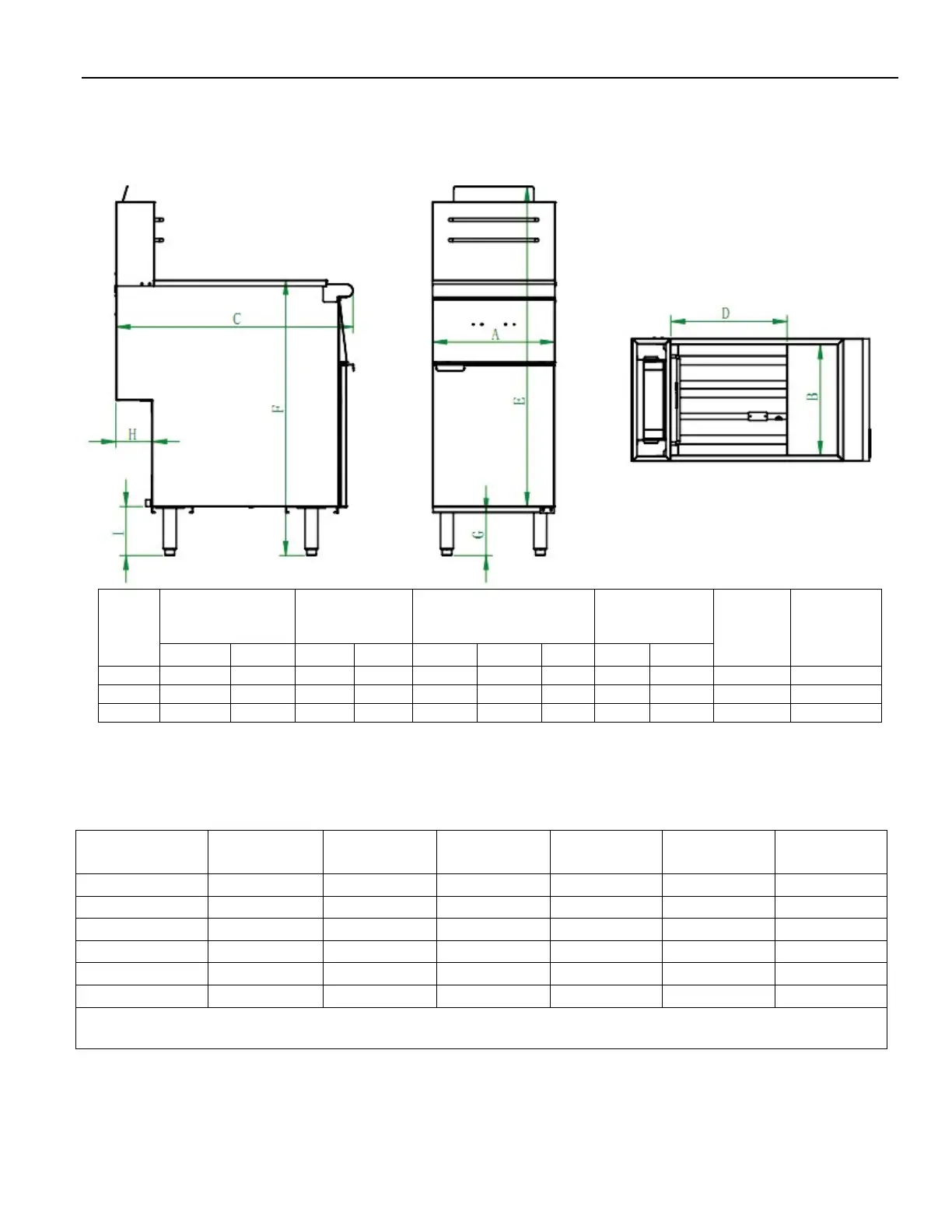

Dimensions
Model
Width (in) Depth (in) Height (in)
Gas
Connection
(in)
Total
BTU/Hr
Crated
Weight
(lbs.)
A
B
C
D
E
F
G
H
I
KF3
15.5”
14.0”
30.3”
14.0”
47.2”
34.7”
6.0”
4.2”
7.0”
90,000
169
KF4
15.5”
14.0”
30.3”
14.0”
47.2”
34.7”
6.0”
4.2”
7.0”
120,000
183
KF5
21.0”
18.0”
34.3”
18.0”
47.2”
34.7”
6.0”
4.2”
7.0”
150,000
209
GAS SUPPLY AND BURNER INFORMATION
Supply pressure should be a minimum of 6” W.C. for Natural Gas and 12” W/C. for propane. The
fryer comes with ¾” NPT male connector on a ½” pipe, allowing you to connect with either a ¾” or
½” NPT female connector.
Model Gas Type
Manifold
Pressure
Number of
heat tubes
BTU Rate
per Burner
Total BTU
Rating
Orifice
Size
KF3-N
NATURAL
4” W.C.
3
30,000
90,000
#39
KF3-P
PROPANE
10” W.C.
3
30,000
90,000
#52
KF4-N
NATURAL
4” W.C.
4
30,000
120,000
#39
KF4-P
PROPANE
10” W.C.
4
30,000
120,000
#52
KF5-N
NATURAL
4” W.C.
5
30,000
150,000
#39
KF5-P
PROPANE
10” W.C.
5
30,000
150,000
#52
Minimum supply pressure is 6" W.C. for natural gas and 12"W.C. for propane.
Orifice sizes are for units installed at altitudes between 0 and 2000 feet above sea level.
