10
-17PERIODIC SERVICE

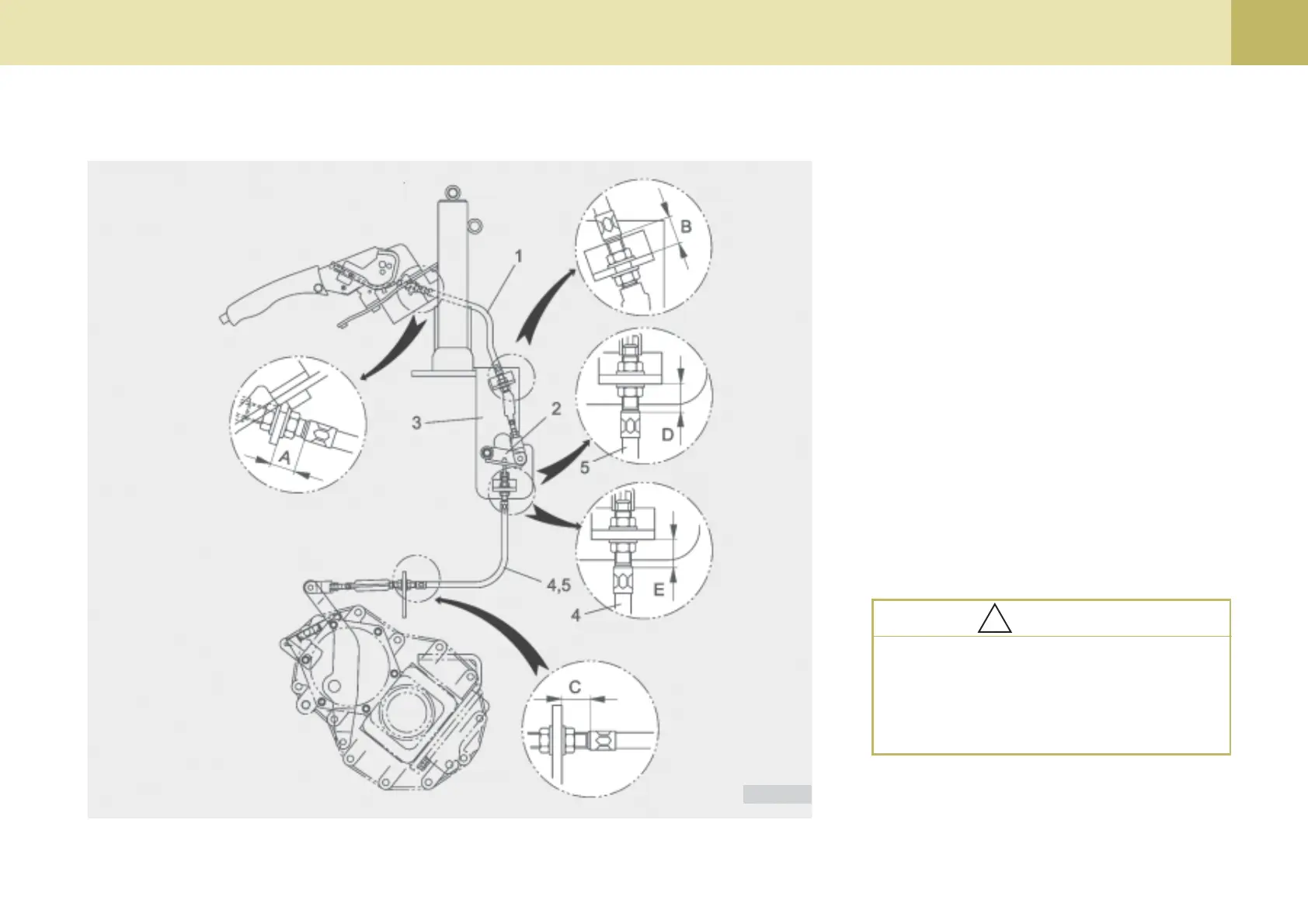

(1) Parking Brake Wire
(2) Parking Brake Bracket
(3) Parking Brake Bracket 1
1. Please adjust the parking brake wire
by following the assembling dimen-
sions as shown.
(A) : 19 mm
(B) : 17 mm
(C) : 15 mm
(D) : End play Adjustment
(E) : End play Adjustment
2. Please be careful not to bend the
parking brake wire for assembling it.
3. Please fasten the nut securely not
to be loosen the parking brake wire.
4. Please assemble the ballof wire to
keep on moving freely.
The adjustment of the parking
brake wire should be followed
by adjusting the end play of the
brake pedal.
!!
!!
!
CAUTION
ADJUSTING HANDBRAKE
(ONLY EU-CK20)
(4) Parking Brake Wire 1
(5) Parking Brake Wire 3
051OA31C
To Next Page
