10
-20 CK22
REPLACING HYDRAULIC OIL
FILTER & TRANSMISSION OIL
FILTER
EVERY 200 HOURS
REPLACING ENGINE OIL
FILTER
Proper
fan belt
tension
A deflection of between
0.28 ~ 0.34 in. (7 ~ 9 mm)
when the belt is pressed in
the middle of the span.
1. Stop the engine and remove the key.
2. Apply moderate thumb pressure to
belt between pulleys.
3. If tension is incorrect, loosen the al-
ternator mounting bolts and, using a
lever placed between the alternator
and the engine block, pull the alter-
nator out until the deflection of the
belts falls within acceptable limits.
4. Replace fan belt if it is damaged.
To avoid personal injury:
Be sure to stop the engine be-
fore checking belt tension.

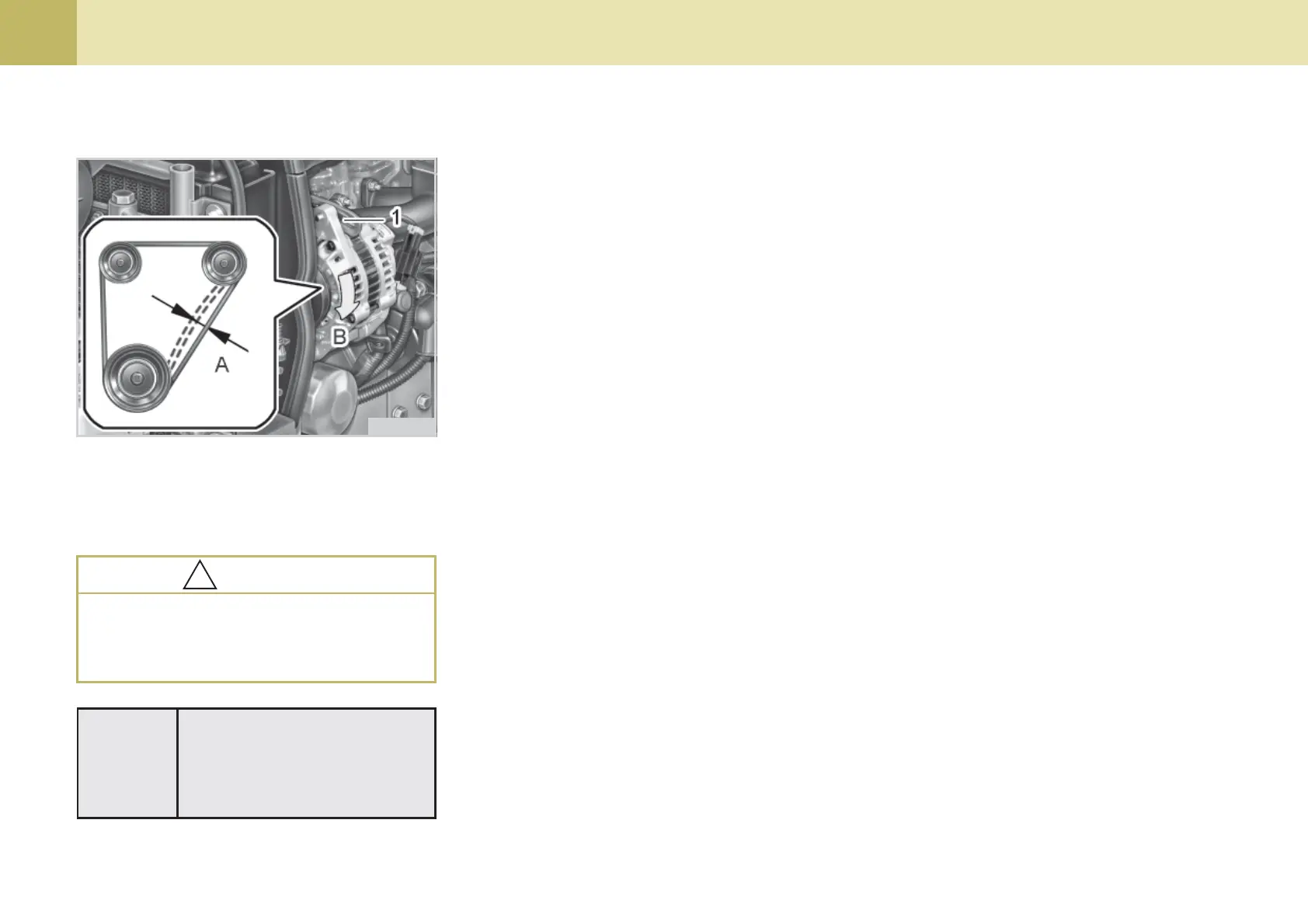

ADJUSTING FAN BELT TENSION
(1) Bolt
(A) Check the Belt Tension
(B) To Tighten
051OA33C
!!
!!
!
CAUTION
See "Initial 50 hours" in page 10-8.
See "Initial 50 hours" in page 10-10.
To Next Page
