Kioti CK22 - Foot and Hand Controls

4 -5DESCRIPTION OF OPERATING SYSTEM

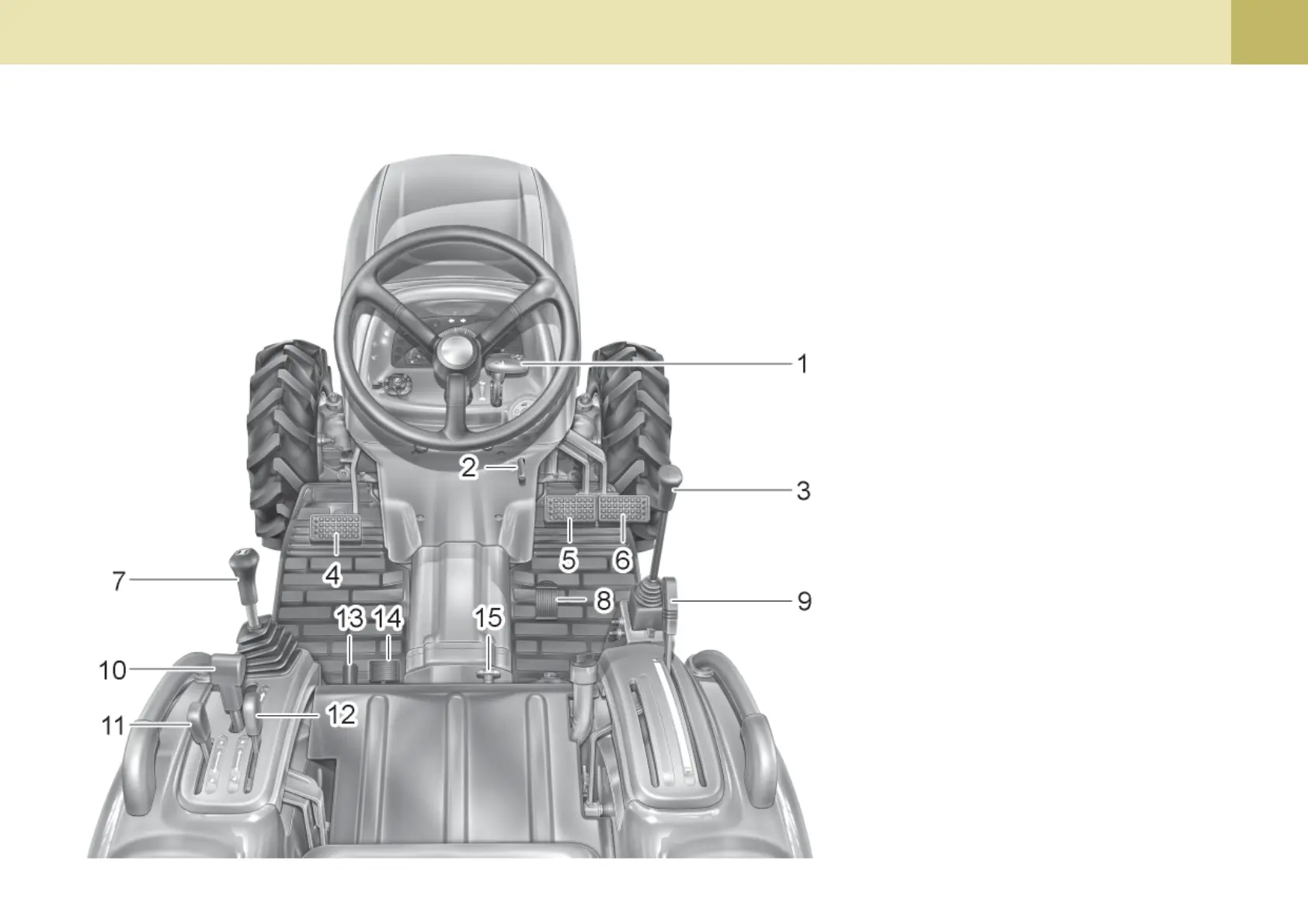

FOOT AND HAND CONTROLS
CK22(AU)
051O404C
(1) Hand Throttle Lever
(2) Speed Set Lever
(3) Joystick Lever
(4) Clutch Pedal
(5) Brake Pedal (L)
(6) Brake Pedal (R)
(7) Main Gear Shift Lever
(8) Foot Throttle
(9) Position Control Lever
(10) Range Gear Shift Lever(Hi-Lo)
(11) Mid PTO Gear Shift Lever
(12) Rear PTO Gear Shift Lever
(13) Front Wheel Drive Lever
(14) Differential Lock Pedal
(15) 3-Point Hitch Lowering Speed Knob
