5
-24 CK22
If warning lamps come on while oper-
ating the engine, immediately stop the
engine and check for the cause.
Never operate the tractor while warn-
ing lamps are on.

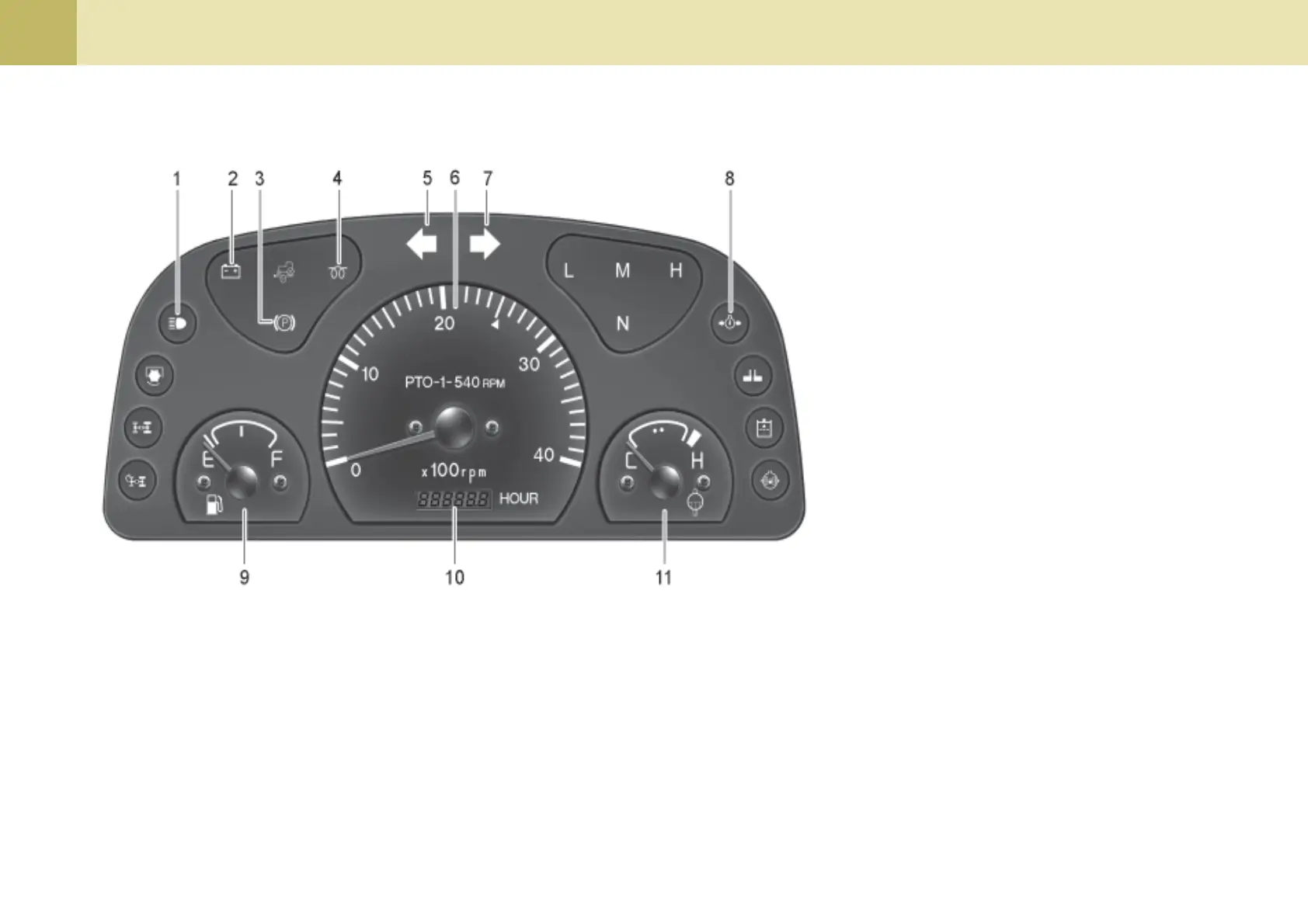

INSTRUMENT CLUSTER
(1) Headlight-High Beam Lamp
(2) Battery Charging Warning Lamp
(3) Parking Brake Lamp
(4) Glow Plug Indicator
(5) Left Turn Indicator
(6) Tachometer
(7) Right Turn Indicator
(8) Engine Oil Pressure Warning Lamp
(9) Fuel Gauge
(10) Hour-Meter Indicator
(11) Coolant Temperature Gauge
051O533C
