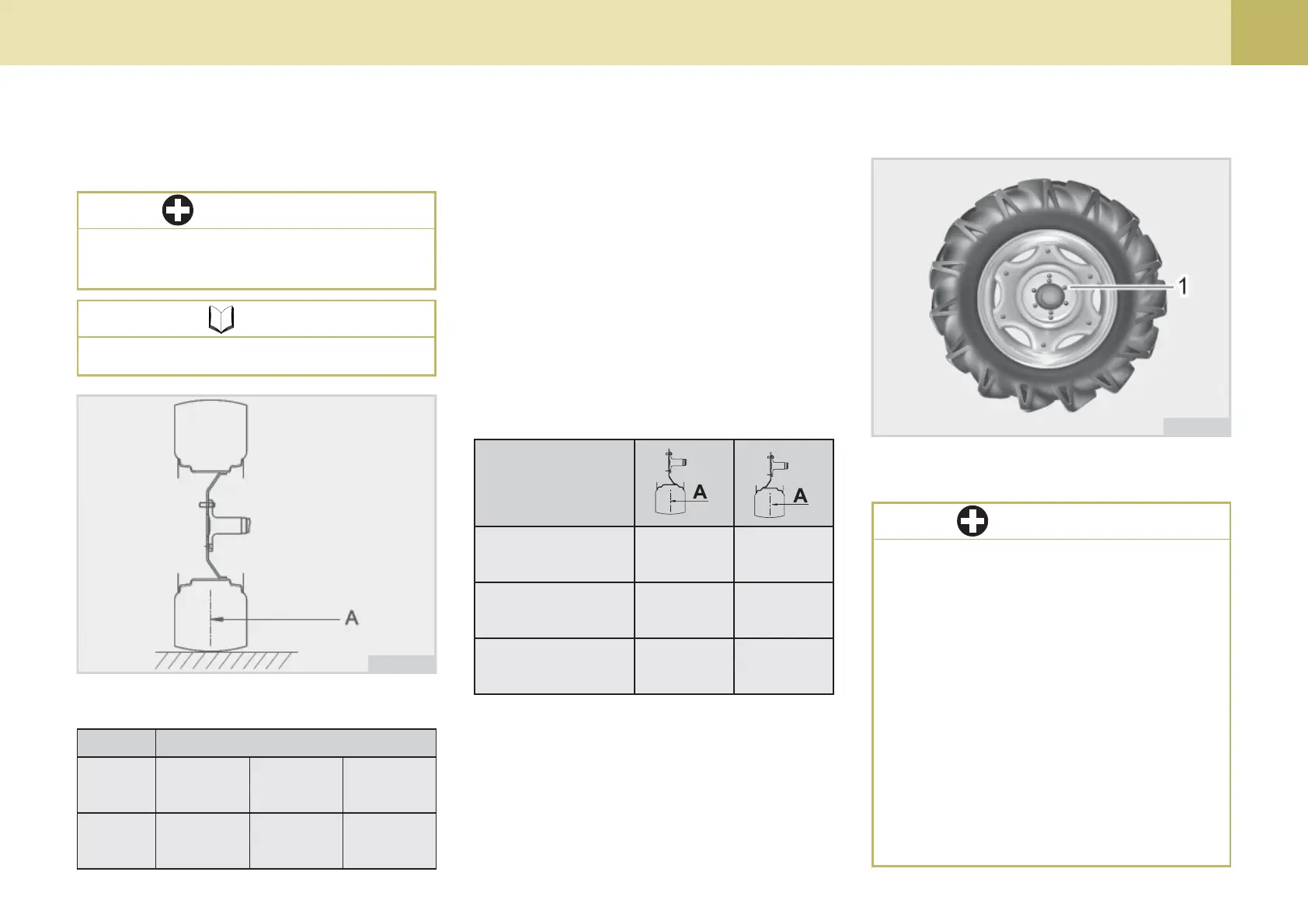

-3TIRES, TREAD AND BALLAST
Front tread can not be adjusted.
TREAD
Do not turn front discs to obtain
wider tread.
IMPORTANT
FRONT WHEELS
Models
Tires
Tread
6 - 12
Ag
909 mm
(35.8 in.)
23x8.50-12
Turf
1,014 mm
(39.9 in.)
23x8.50-12
IND
1,014 mm
(39.9 in.)
CK 22, CK22H
(A) Tread
REAR WHEELS
Rear wheel tread width can be adjusted
as shown with the standard equipment
tires.
To change the tread width.
1. Remove the wheel rim and the disk
mounting bolts.
2. Change the position of the rim and
disk to the desired position, and then
tighten the bolts.
(1) 215 N·m (22 kgf·m, 160 lbs·ft)
CK22, CK22H
9.5 - 16 Ag
CK22, CK22H
33x12.5-16.5Turf
CK22, CK22H
12 - 16.5 IND
-
-
935 mm
(36.8 in.)
995 mm
(39.2 in.)
1,015 mm
(40 in.)
Models
890 mm
(35 in.)
A: Tread
Always attach tires as shown in
the drawings.
If not attached as illustrated,
transmission parts may be
damaged.
When re-fitting or adjusting a
wheel, tighten the bolts to the
following torques then recheck
after driving the tractor 200 m
(200 yards) and thereafter ac-
cording to service interval.
(See “MAINTENANCE” section)
IMPORTANT
051O804C
IND… for Industrial
NOTE
051O801C
