Kioti CK3510 - Packing List and Actual Image

- 2 -
CK3510(H)/4 010(H)

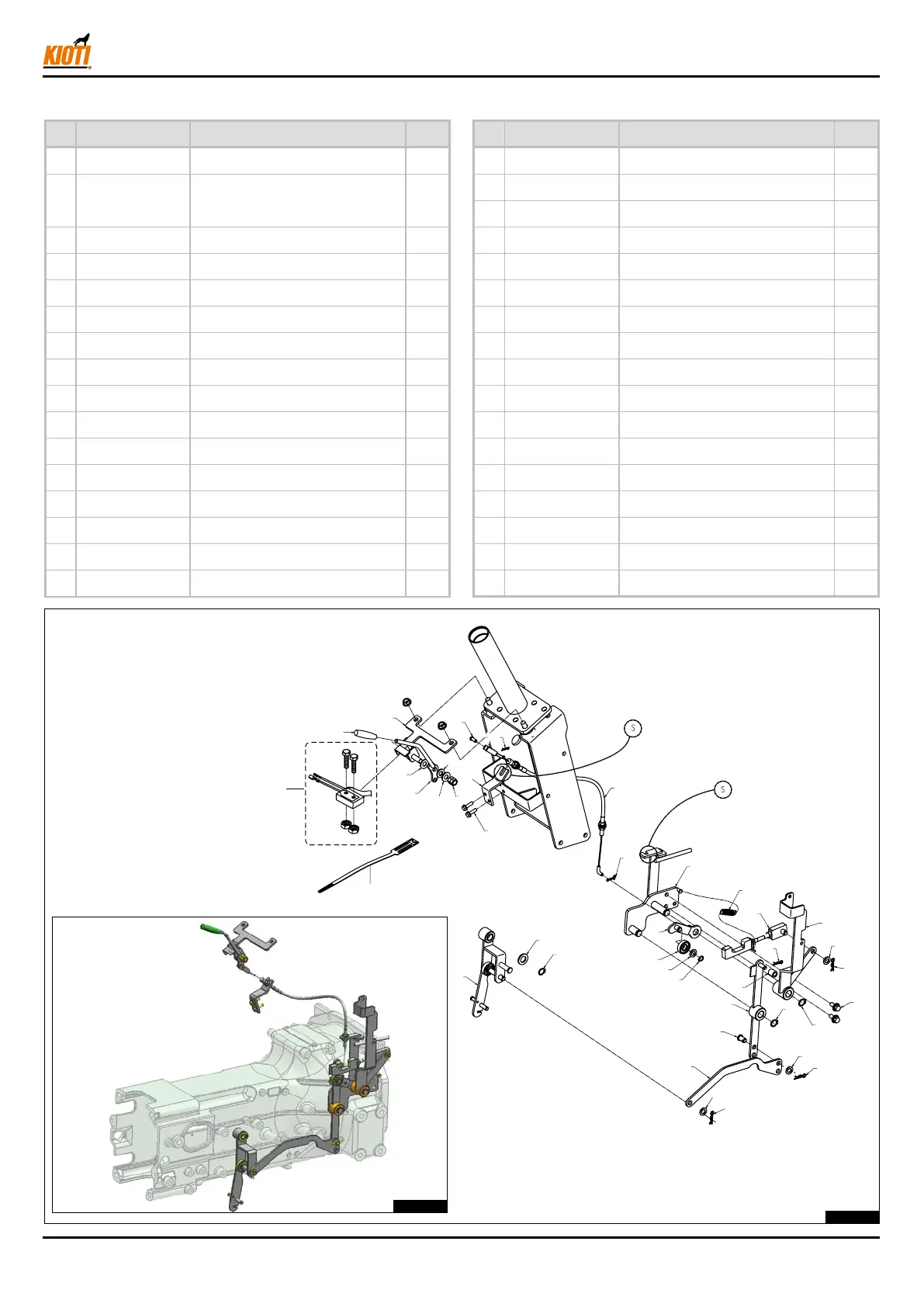

1. PACKING LIST & ACTUAL IMAGE
NO Part No Description Q'TY
1 T5855-69461 WIRE, CONNECTION 1
2 T2198-68811
SWTICH, MICRO NC (BOLTS &
NUTS ARE ENCLOSED WITH)
1
3 T5855-91416 BRACKET,BEARING 1
4 T5855-91422 PLATE. CONNECTING 1
5 T5855-91432 CONNECTING LEVER 1
6 05525-50800 PIN, SNAP 1
7 T5855-91441 ARM,CONNECTING 1
8 T5855-91451 BRACKET, HINGE 1
9 04612-00150 SNAP RING 2
10 T5855-91472 BRACKET, LEVER 1
11 05122-50616 JOINT PIN 1
12 01754-50620 BOLT, FLANGE 2
13 T5855-91481 BRACKET 1
14 T5855-91492 LEVER 1
15 01125-50820 BOLT, WASHER 2
16 05525-50600 PIN, SNAP 1
NO Part No Description Q'TY
17 T5855-91461 LEVER 1
18 08141-06200 BEARING,BALL 1
19 T5855-91502 CONNECTING ROD 1
20 T2305-26641 SPRING 1
21 T5710-81071002 SPACER 1
22 04011-50100 WASHER, PLAIN 4
23 T5855-91511 CABLE 1
24 04612-00100 SNAP RING 1
25 T2368-33192 GRIP 1
26 04612-00140 SNAP RING 1
27 04011-50140 WASHER, PLAIN 1
28 52300-3411-1 CIR CLIP 1
29 04013-50100 WASHER, PLAIN 2
30 T4668-83301 SPRING 2
31 02176-50100 NUT 2
32 05122-51018 DOWEL PIN 1
33 05525-51000 PIN, SNAP 3
2
3
27
28
8
17
18
20
21
5
9
9
15
4
32
19
6
7
22
22
33
22
33
22
33
24
26
1
10
12
11
23
16
13
29
14
25
29
30
31
TC2SZ00E
TC2SO24A
