6-18 DK451/501/551
A12O628A

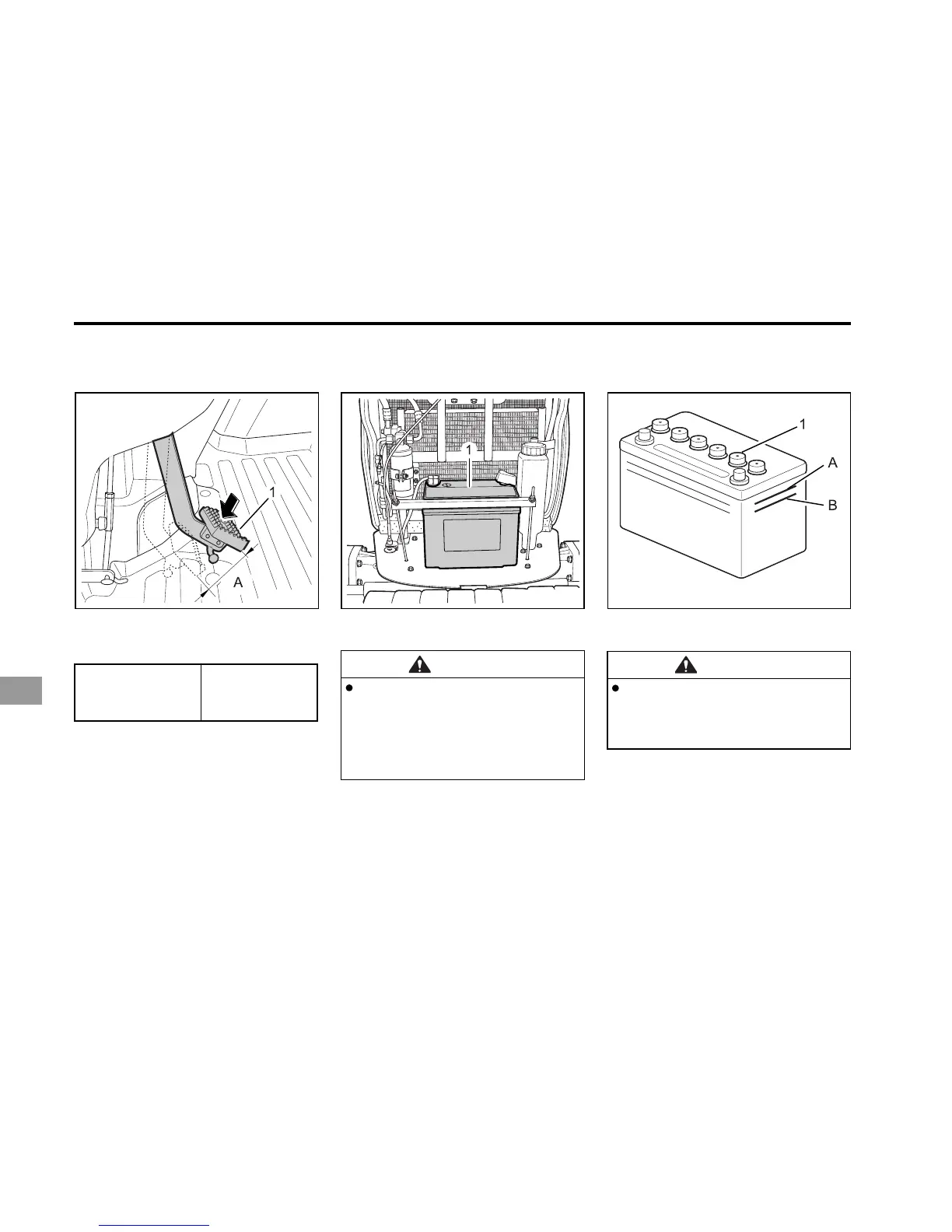

(1) Plug
(A) Highest Level (B) Lowest Level
WARNING
Gas given off by batteries is
explosive. To avoid injury or bat-
tery damage, avoid sparks near
the batteries.
1. If the battery is weak, the engine is
difficult to start and the lamps become
dim. It is important to check the battery
daily and recharge before trouble oc-
curs.
2. The water in the electrolyte evapo-
rates during recharging. Liquid short-
age damages the battery and exces-
sive liquid spills over and damages the
tractor body. If low, be sure to fill up
the battery with distilled water.
A12O627A
(1) Battery
WARNING
Never remove the battery cap
while the engine is running. Keep
electrolyte away from eyes, hands
and clothes. If you are spattered
with it, wash it away completely
with water.
Mishandling the battery shortens the ser-
vice life and adds to maintenance costs.
Be sure to handle it correctly so that it
will develop its full potential performance.
A12O626A
Proper clutch
pedal free travel(A)
20 ~ 30 mm
(0.8 ~ 1.2 in.)
on the pedal
1. Stop the engine and remove the key.
2. Slightly depress the clutch pedal and
measure free travel at top of pedal
stroke.
3. If adjustment is needed, loosen the lock
nut, remove the clevis pin and adjust
the rod length within acceptable limits.
4. Retighten the lock nut and split the
cotter pin.
(1) Clutch Pedal
(A) Clearance
ADJUSTING CLUTCH PEDAL BATTERY
