OPERATING 5-25
IMPORTANT
Always attach tires as shown in
the upper drawings.
If not attached as illustrated,
transmission parts may be dama-
ged.
After changing wheel, nuts should
be torque to 17 ~ 19 kgf·m (166.7 ~
186.3 N·m, 123.0 ~ 137.4 lbf·ft).
WARNING
Do not use tires larger than spe-
cified.
A12O532A

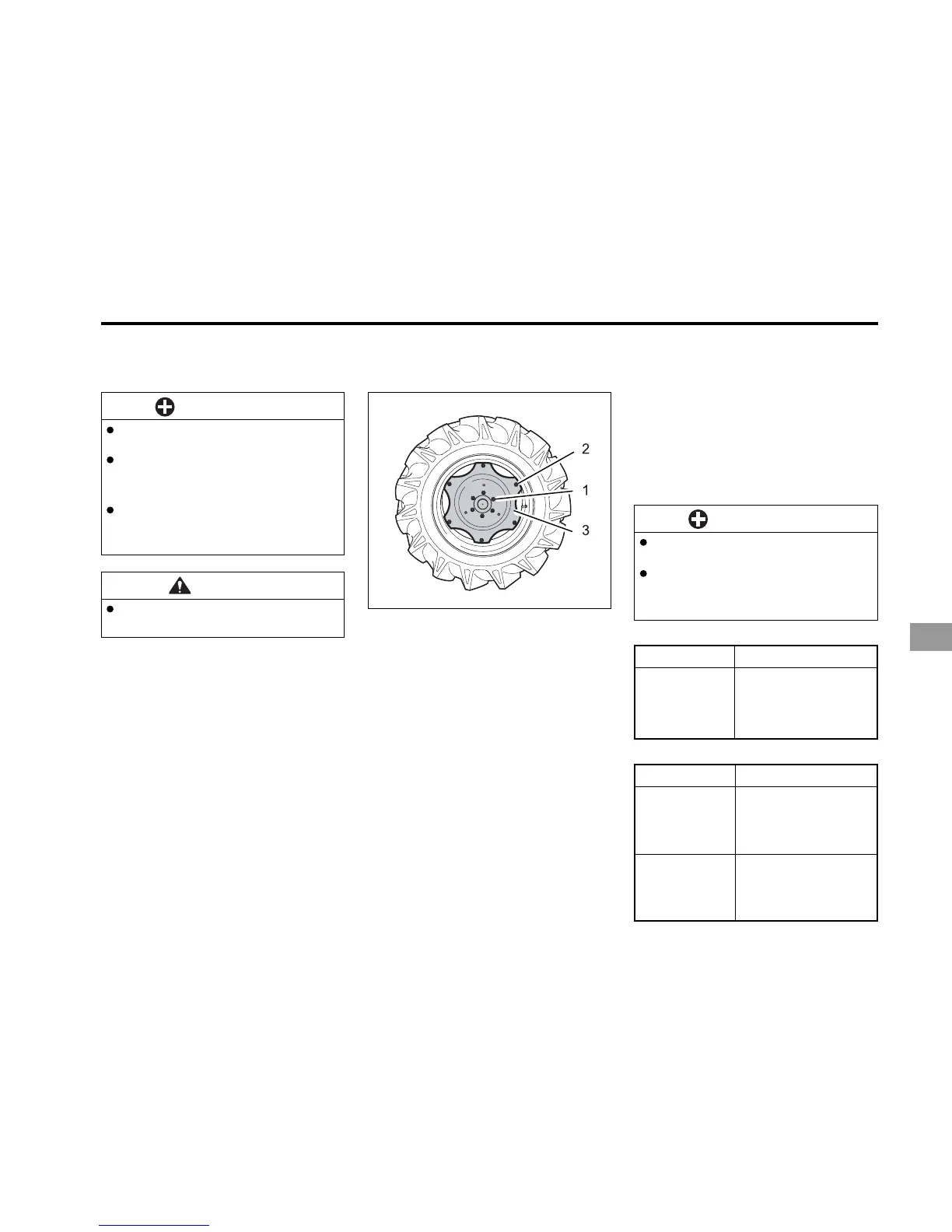

REAR WHEELS
(1) Wheel Bolt (3) Disc
(2) Rim Bolt
The rear axle tread width are adjustable
by changing the installation of the tire
(together with rim) to the disk, to suit the
type or condition of work. In either case,
the tire should be installed so that arrow
mark would show the direction of
rotation. Furthermore, the tire mark on the
ground should be in “V” shape.
To change the present tread to the de-
sired tread, all of the arrow mark would
show the direction of rotation.
Remove rim bolts, slide in peripheral di-
rection to move to outside or inside of
disk and set.
Change the left with the right tire, and
set to the inside or outside of the disk.
Change the direction of the disk.
IMPORTANT
Always attach tires as shown in
the above drawings.
If not attached as illustrated,
transmission parts may be dama-
ged.
28 ~ 32.5 kgf.m
274.6 ~ 318.7 N.m
202.5 ~ 235.1 lbf.ft
DK451
DK501
DK551
20 kgf.m
196.1 N.m
144.6 lbf.ft
26 ~ 34 kgf.m
255.0 ~ 333.4 N.m
188.1~ 245.9 lbf.ft
DK 451
DK501
DK551
Model Torque
Model Torque
WHEEL BOLTS
RIM BOLTS
