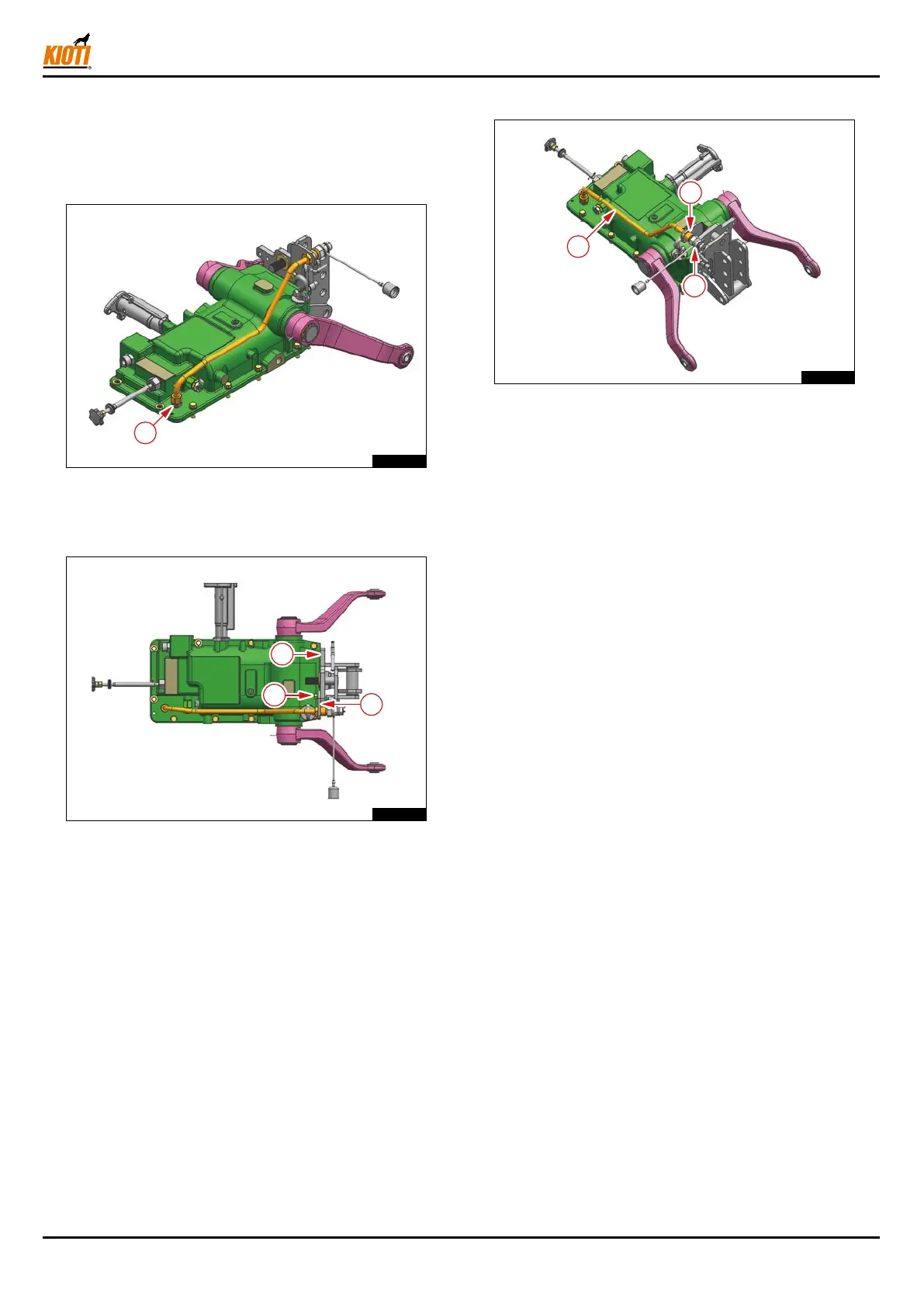

3. INSTALLATION INSTRUCTION
1. Park the vehicle on firm and level ground.
Then, engage the parking brake and stop the
engine.
U20SR02A
2. Assemble a connecting pipe (1) with the body
of the hydraulic cylinder.
TC2SY02A
U20SR02A
3. Attach the optional bracket (4) to the top link
bracket (A) with a washer mounting bolt (3).
TD2SA06A
U20SR02A
4. Install the return tube (2) on the connecting
pipe and bracket and tighten the nut (5) on
the bracket; then, assemble the coupler plug
(6).
TC2SY04A
