6-14 DK451/501/551
A12O621A
Check wheel bolts and nuts regularly
especially when new. If they are loose,
tighten them as above.
CHECKING WHEEL BOLT TORQUE
CAUTION
To avoid personal injury:
Never operate tractor with a
loose rim, wheel, or axle.
Any time bolts and nuts are
loosened, retighten to specified
torque.
Check all bolts and nuts fre-
quently and keep them tight.
(1) 17~19 kgf·m
(166.7~186.3 N·m, 123.0~137.4 lbf·ft)
(2) 28~32.5 kgf·m
(274.6~318.7 N·m, 202.5~235.1 lbf·ft)
A12O618A
A12O620A

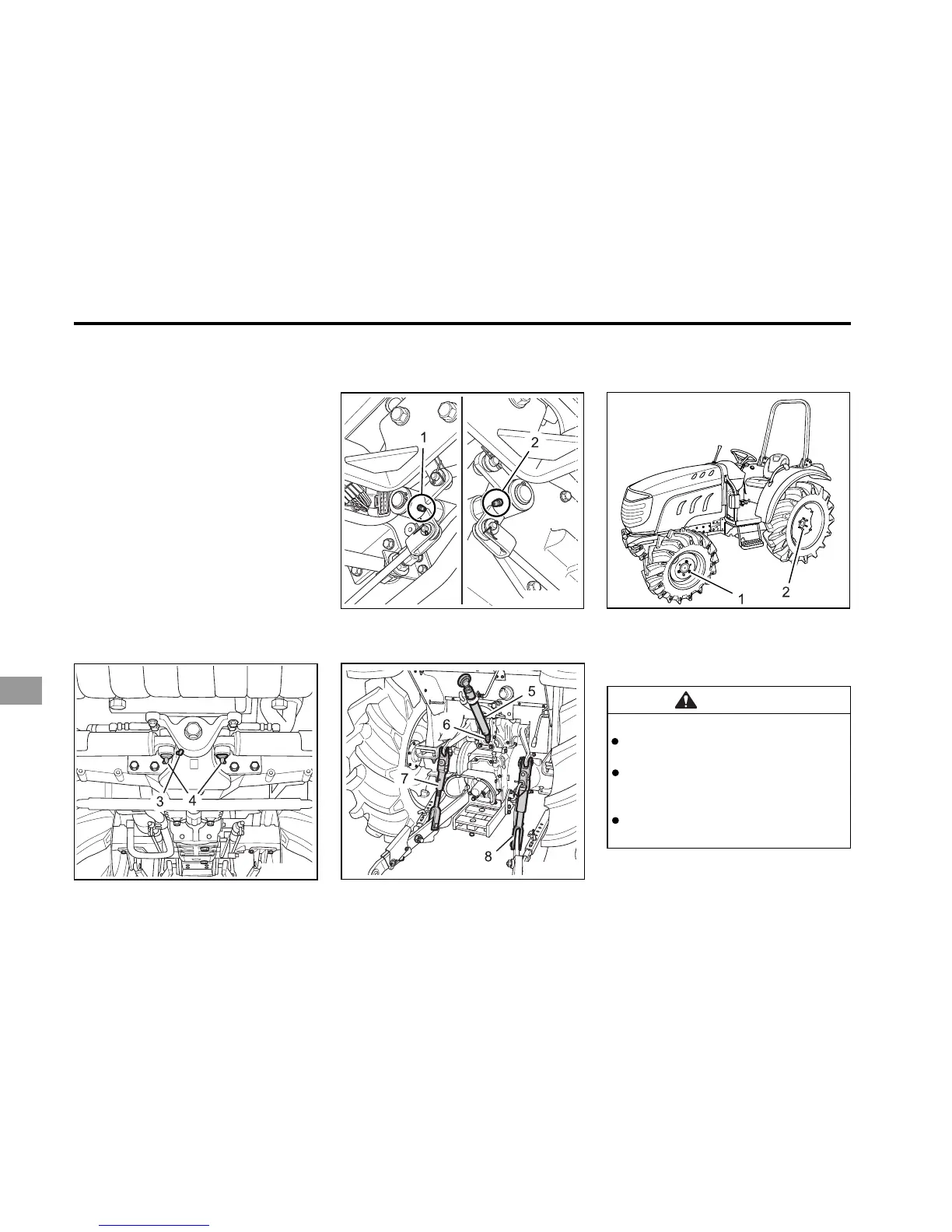

(1) Brake Pedal(LH) (2) Brake Pedal(RH)
(5) Top Link (7) Lifting Rod (LH)
(6) Top Link Holder (8) Lifting Rod (RH)
(3) Bracket(Front/Rear)
(4) Steering Cylinder Pin
You should apply a small amount of multi-
purpose grease to the following points
every 50 hours or as needed.
If your tractor is operated in extremely
wet, muddy, or dusty conditions you
should lubricate the fittings more often.
EVERY 50 HOURS
LUBRICATING GREASE FITTINGS
A12O619A
