7-2 KL120
CAUTION
Never park loader without bucket attached to the
loader.
Never allow weight of tractor to be put on parking leg
when removing loader.
LOADER REMOVAL
Park the tractor and loader on hard level surface.
Raise the boon until the bucket is about 2 feet off the
ground.
Set the parking legs with pivot pin and Keeper.
Lower the boom until the Parking legs make contact on
the ground. Tip the bucket until the bucket cutting edge
touch the ground.

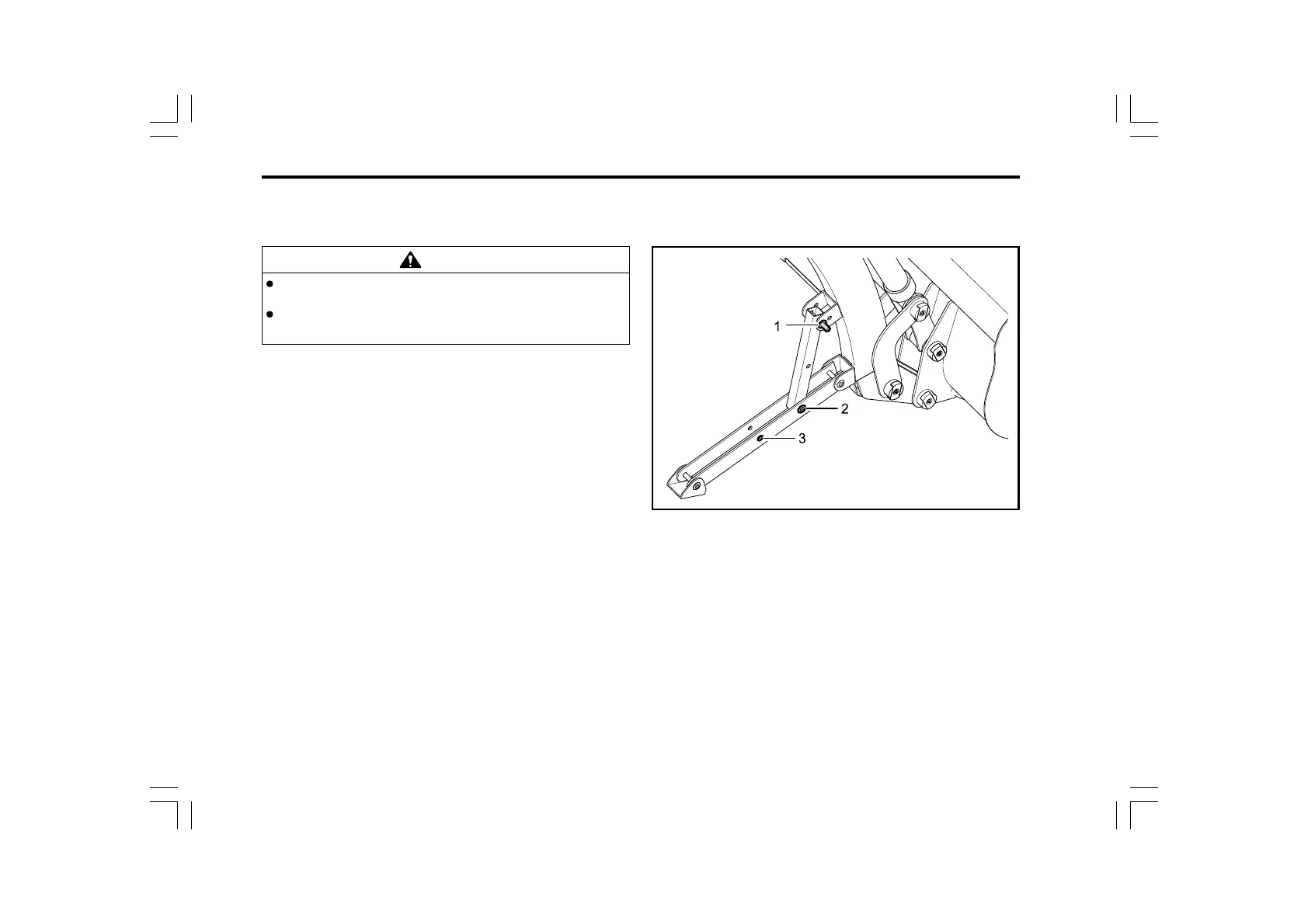

120O701A
(1) Long Pivot Pin (2) Short Pivot Pin
(3) Packing Leg
