8-2 KL120
CAUTION
Never allow weight of tractor to be put on parking leg
when mounting loader.
LOADER MOUNTING
STEP 1. Carefully drive the tractor into the loader to a position
where the hydraulic hoses(Quick coupler) can be con-
nected to the control valve block.
STEP 2. Stop the engine and move the control lever back and
forth, Left and right several times to reduce the pressure
in the hydraulic hoses.
Connect the hydraulic couplers match the color code rings.

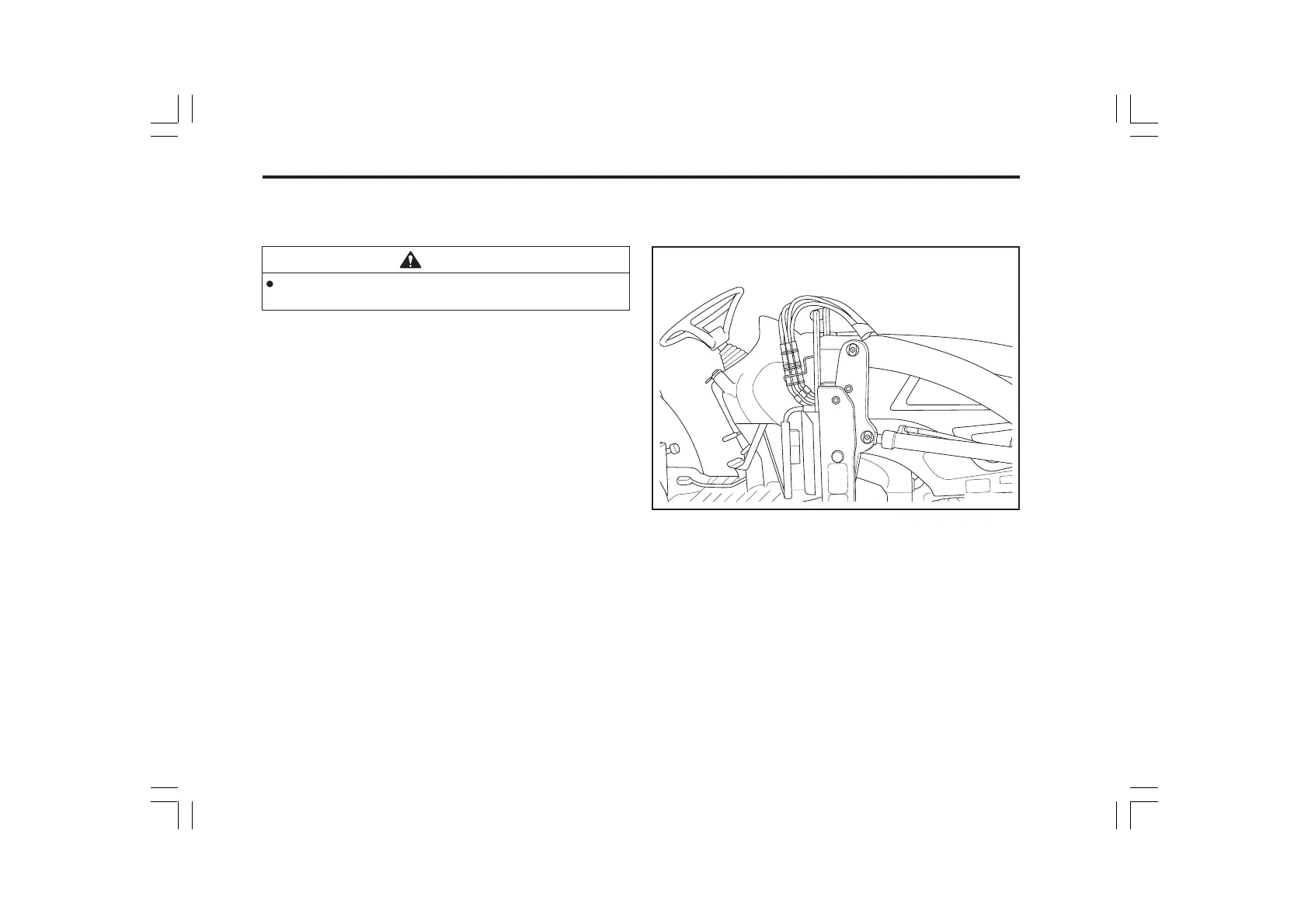

STEP 3. Start the engine and move the boom and bucket to adjust
the height of inner bearing box.
Be sure to check the hook of inner bearing box is slightly
higher than the pin welded on outer bearing box .
120O801A
