Kioti KL120 - Safety Precautions Before Installation; Mounting Bearing Boxes and Brackets

14-2 KL120
CAUTION
See your Loader Operator's manual for Safety Pre-
cautions and Tractor Preparations.
LOADER INSTALLATION
Position tractor on hard level surface.
120OE01A
Release loader, bucket and mount kit box from pallet.

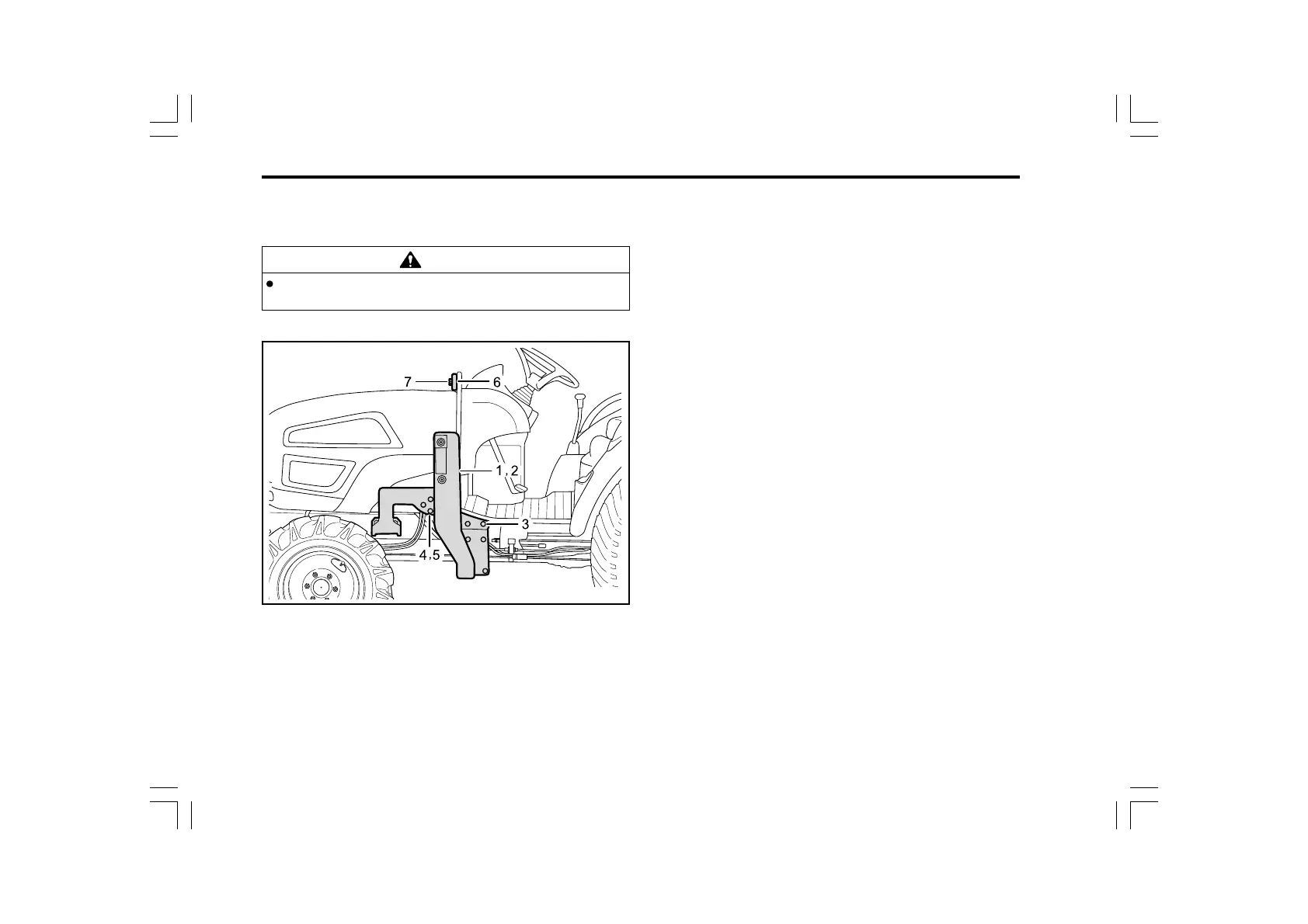

Install Bearing Box LH and Bearing Box RH.
1 Bearing Box LH - 1EA
2 Bearing Box RH - 1EA
3 Hex Head Bolt M14X1.5PX40L - 8EA
Spring Washer ø 14 - 8EA
Install Side Bracket Ass'y LH/RH
4 Hex Head Bolt M14X1.5PX45L - 6EA
Spring Washer ø 14 - 6EA
Hex Head Nut. M14X1.5P - 6EA
5 Hex Head Bolt M12X1.25PX30L - 8EA
Spring Washer ø 12 - 8EA
Install Over Cross Bar.
6 Over Cross Bar. - 1EA.
7 Hex Head Bolt M14X1.5PX40L - 2EA.
Spring Washer ø 14 - 2EA.
Hex Head Nut M14X1.5P - 2EA.
