LOADER INSTALLATION 14-5
14
STEP 9.

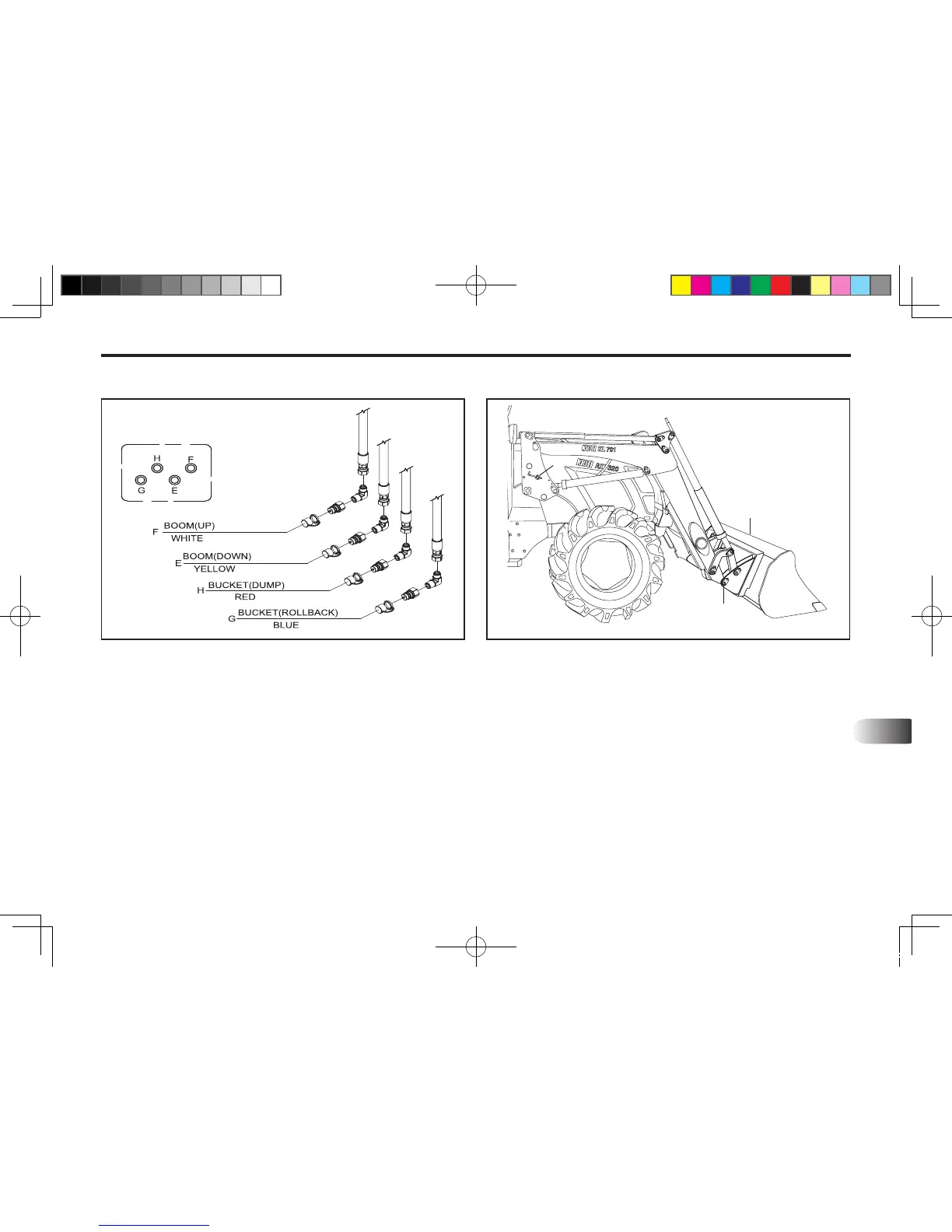

Fit hydraulic hoses as shown diagram above.
STEP 10.
Install Latch pin
3 Latch pin W/Linch Pin - 2Sets
STEP 11.
Install the Bucket Ass’y
701OE03A601OE05B
(1) Bucket Ass`y (2) Pivot Pin
(3) Linch Pin
1
2
3
