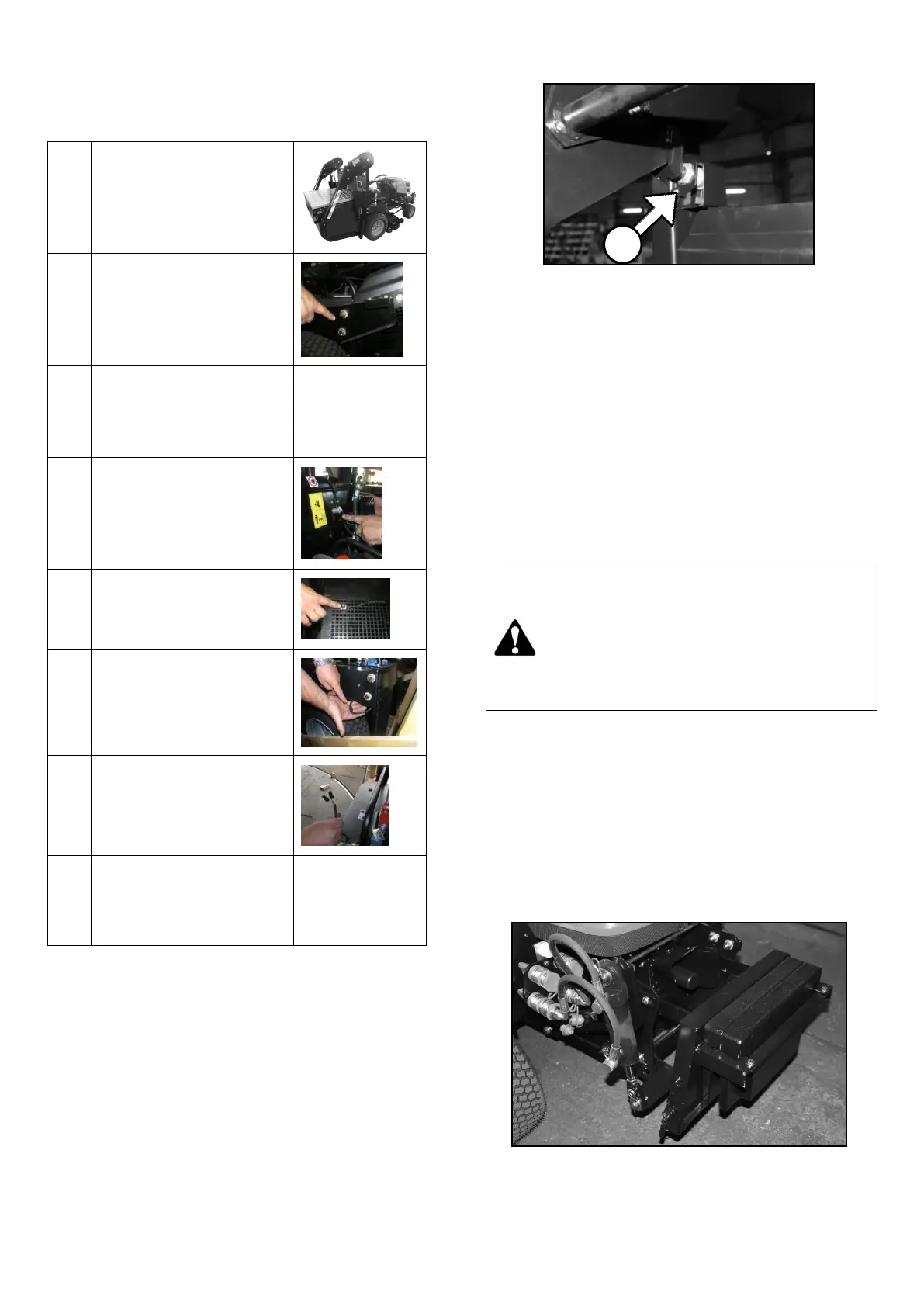

INSTALL DISPERSION HOOD
The Dispersion Hood is installed following these steps:
1.
Remove the High Dump
System by following the
installation steps in
reverse order
2.
Attach the Standard
Collector Brackets on both
sides
3.
Attach the Dispersion
Hood to the Brackets on
both sides
4.
Remove the Interlock
Switch from the High
Dump Collector.
5.
Install the Interlock Switch
in the lower position as for
the Standard Collector
6.
Disconnect the Interlock
Switch wires
7.
Connect the wires to the
Interlock Switch.
8.
Use the Dispersion hood
in accordance with the
operating instructions in
this manual.
Figure 6-4
IMPORTANT: Grass container or dispersing hood
depresses a switch (9), which blocks the
electromagnetic clutch from engaging the blades when
neither the grass container or dispersing hood is
mounted on the machine. Do not remove this switch
from the machine or limit the performance of this
security device. Check and clean the switch from
grass and debris occasionally during operation.
FUEL
The fuel tank holds approximately 20 liters of diesel
fuel. Fuel gauge is located under the seat. To add
fuel, follow instructions in Operating section.
INSTALL FRONT COUNTER-WEIGHT
The Front Counter-weight must be installed at all times
when operating the WD1260 with High Dump System
on uneven terrain or slopes. The Front Counter-weight
is not required if using the normal collector.
To install, put the Counter Weight on the front hitch.
Then secure with pin on each side of the Counter
Weight.
Figure 6-5
CAUTION! Avoid fire. Wipe away any
spilt fuel or oil immediately! Use extra care
when handling fuels. They are extremely
flammable, the vapors can be explosive, and
they can burn skin and eyes. Allow the
engine to cool before refueling. Never smoke
while refueling.
