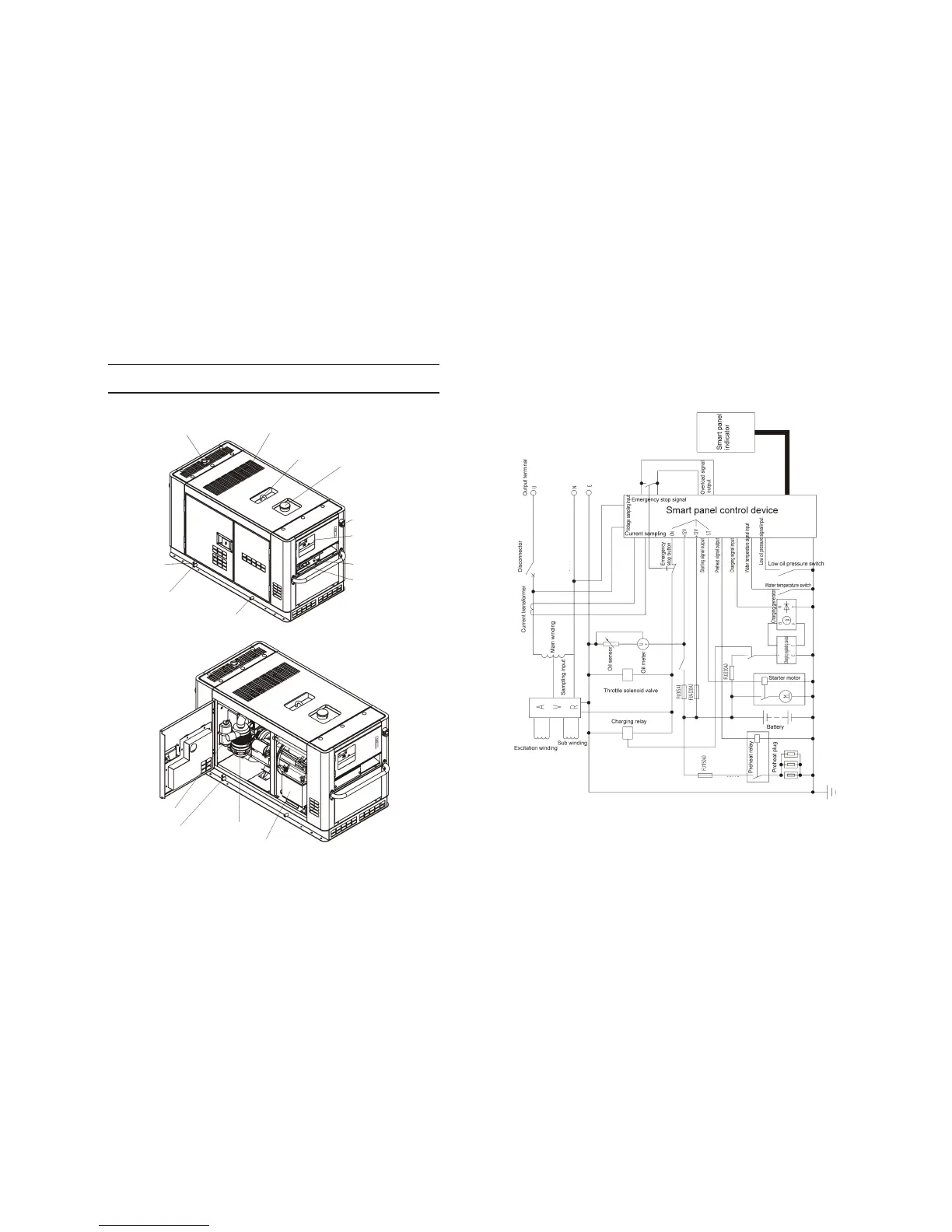

Kipor KDE19STA - Parts and Control Unit; Electrical Wiring Diagram (KDE16 EA;KDE19 EA)

Coolant drain outlet
2
2. PATS NAME AND CONTROL UNIT
2.1 Generator fig.
Cooling air outlet
Exhaust outlet
Lifting hook
Fuel filler cap
Emergent stop button
Operation panel
Grounding bolt
Connection pole
Fuel drain outlet
Engine oil drain outlet
Overflow pot
Engine oil drain bolt
Battery
Air filter
35
3. KDE16EA, KDE19EAElectrical wiring diagram of
