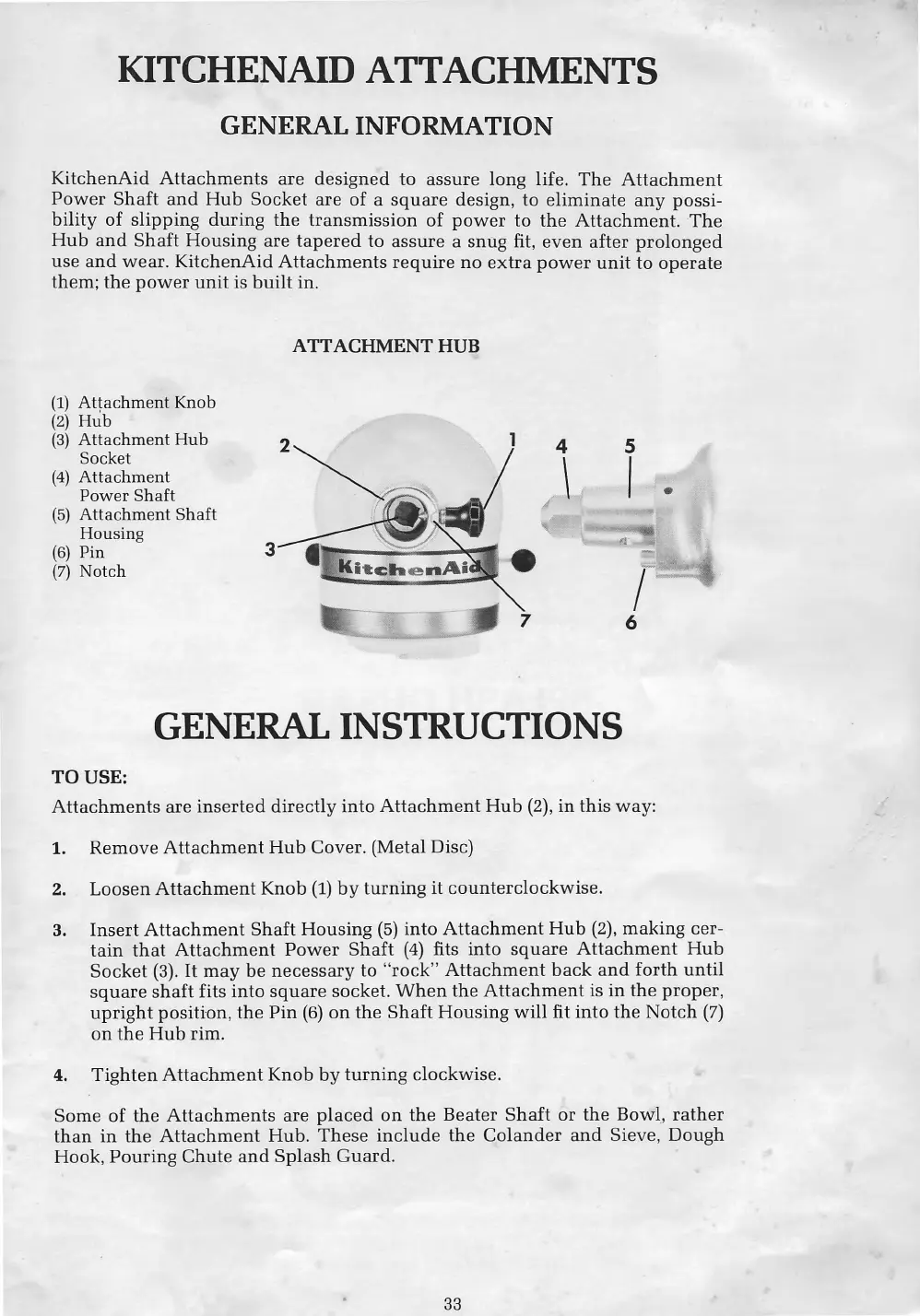

KITCHENAID ATTACHMENTS
GENERAL INFORMATION
KitchenAid Attachments are designed to assure long life. The Attachment
Power Shaft and Hub Socket are of a square design, to eliminate any possi-
bility of slipping during the transmission of power to the Attachment. The
Hub and Shaft Housing are tapered to assure a snug fit, even after prolonged
use and wear. KitchenAid Attachments require no extra power unit to operate
them; the power unit is built in.
ATTACHMENT HUB
(1)
Attachment Knob
(2)
Hub
(3)
Attachment Hub
Socket
(4)
Attachment
Power Shaft
(5)
Attachment Shaft
Housing
(6)
Pin
(7)
Notch
GENERAL INSTRUCTIONS
TO USE:
Attachments are inserted directly into Attachment Hub (2), in this way:
1.
Remove Attachment Hub Cover. (Metal Disc)
2.
Loosen Attachment Knob
(1)
by turning it counterclockwise.
3.
Insert Attachment Shaft Housing (5) into Attachment Hub (2), making cer-
tain that Attachment Power Shaft (4) fits into square Attachment Hub
Socket (3). It may be necessary to "rock" Attachment back and forth until
square shaft fits into square socket. When the Attachment is in the proper,
upright position, the Pin (6) on the Shaft Housing will fit into the Notch (7)
on the Hub rim.
4.
Tighten Attachment Knob by turning clockwise.
Some of the Attachments are placed on the Beater Shaft or the Bowl
'
rather
than in the Attachment Hub. These include the Colander and Sieve, Dough
Hook, Pouring Chute and Splash Guard.
