INSTALLATION REQUIREMENTS
Tools and Parts
Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools
listed here.
Tools Needed
 Tape Measure
 Phillips screwdriver
 Level
Parts Needed
 Screws (quantity and type to be determined by the
requirements of the cabinet material)

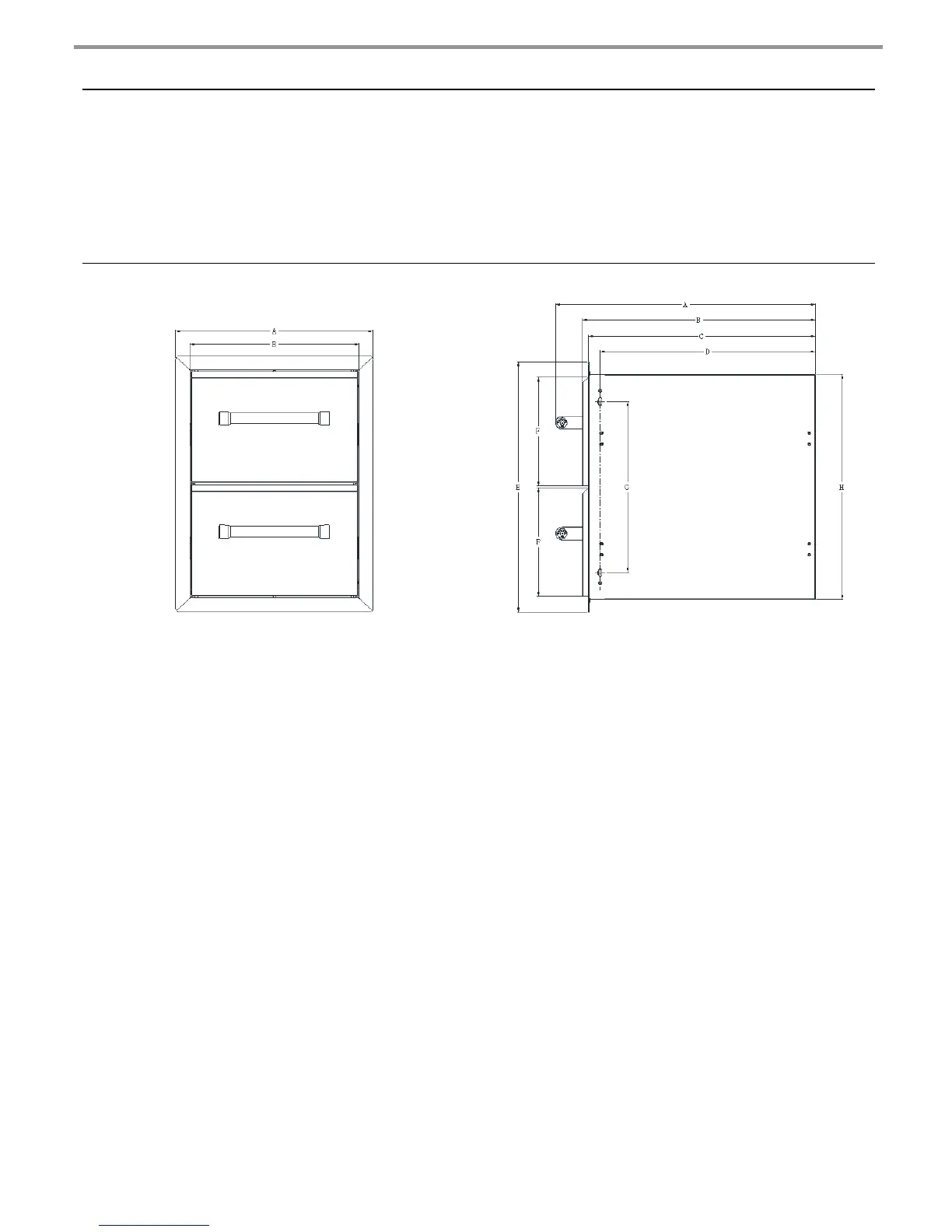

Product Dimensions
A. 17.76” (45.1 cm) B. 15.24” (38.7 cm)
A. 23.5” (59.7 cm)
B. 21.4” (54.5 cm)
C. 20.9” (53.1 cm)
D. 19.81” (50.32 cm)
E. 23.03” (58.5 cm)
F. 10” (25.4 cm)
G. 15.75” (40 cm)
H. 20.72” (52.64 cm)
