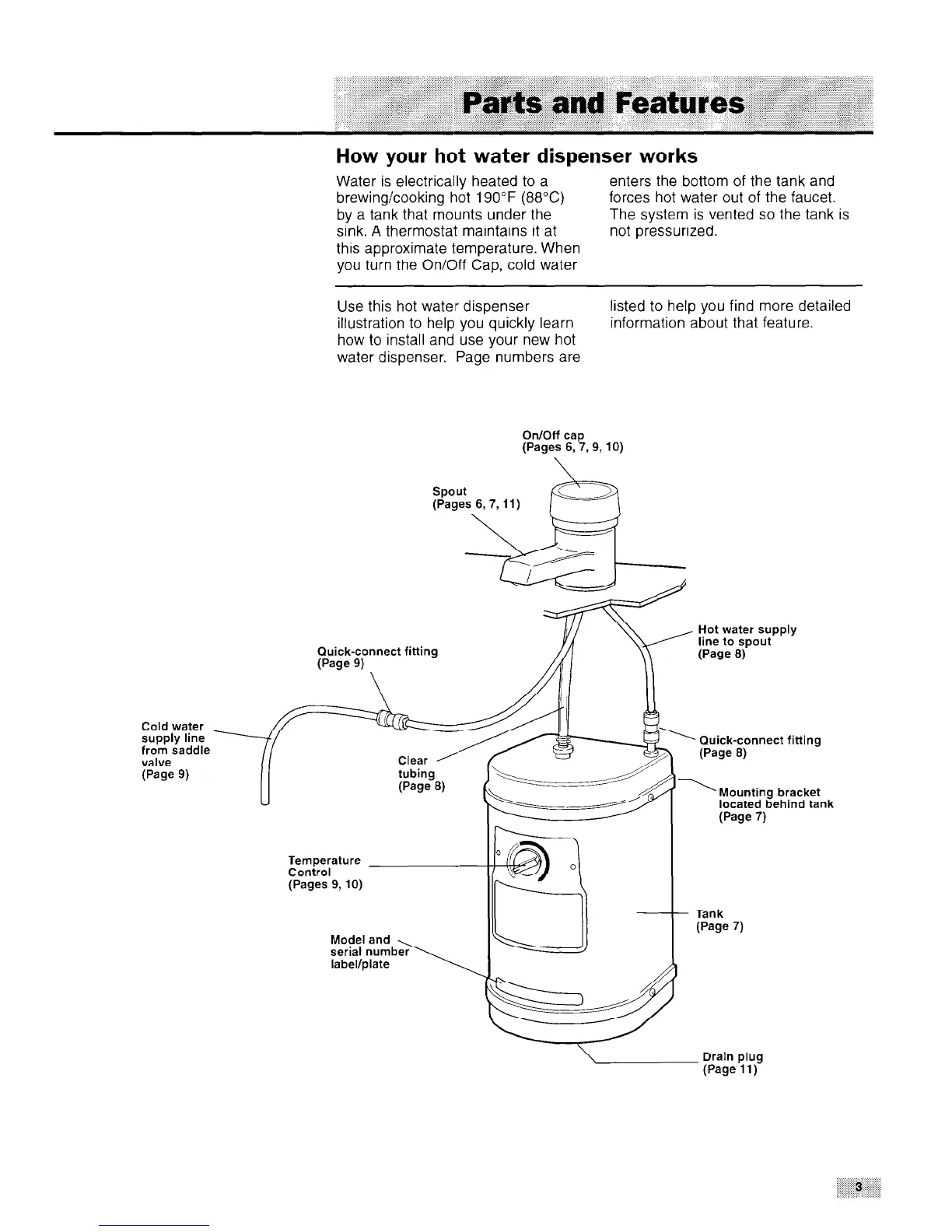

How your hot water dispenser works
Water is electrically heated to a enters the bottom of the tank and
brewing/cooking hot 190°F (88°C) forces hot water out of the faucet.
by a tank that mounts under the
The system is vented so the tank is
sink. A thermostat maintains it at not pressurized.
this approximate temperature. When
you turn the On/Off Cap, cold water
Cold water
supply line .
from saddle
valve
(Page 9)
Use this hot water dispenser
listed to help you find more detailed
illustration to help you quickly learn
information about that feature.
how to install and use your new hot
water dispenser. Page numbers are
On/Off cap
(Pages 6,7,9, 10)
Quick-connect fitting
Hot water supply
Quick-connect fitting
Mounting bracket
located behind tank
Control
(Pages 9,10)
Tank
(Page 7)
Drain plug
- (Page 11)
