KitchenAid KBFC42FSS00 - Cabinet and Breaker Trim Components

3

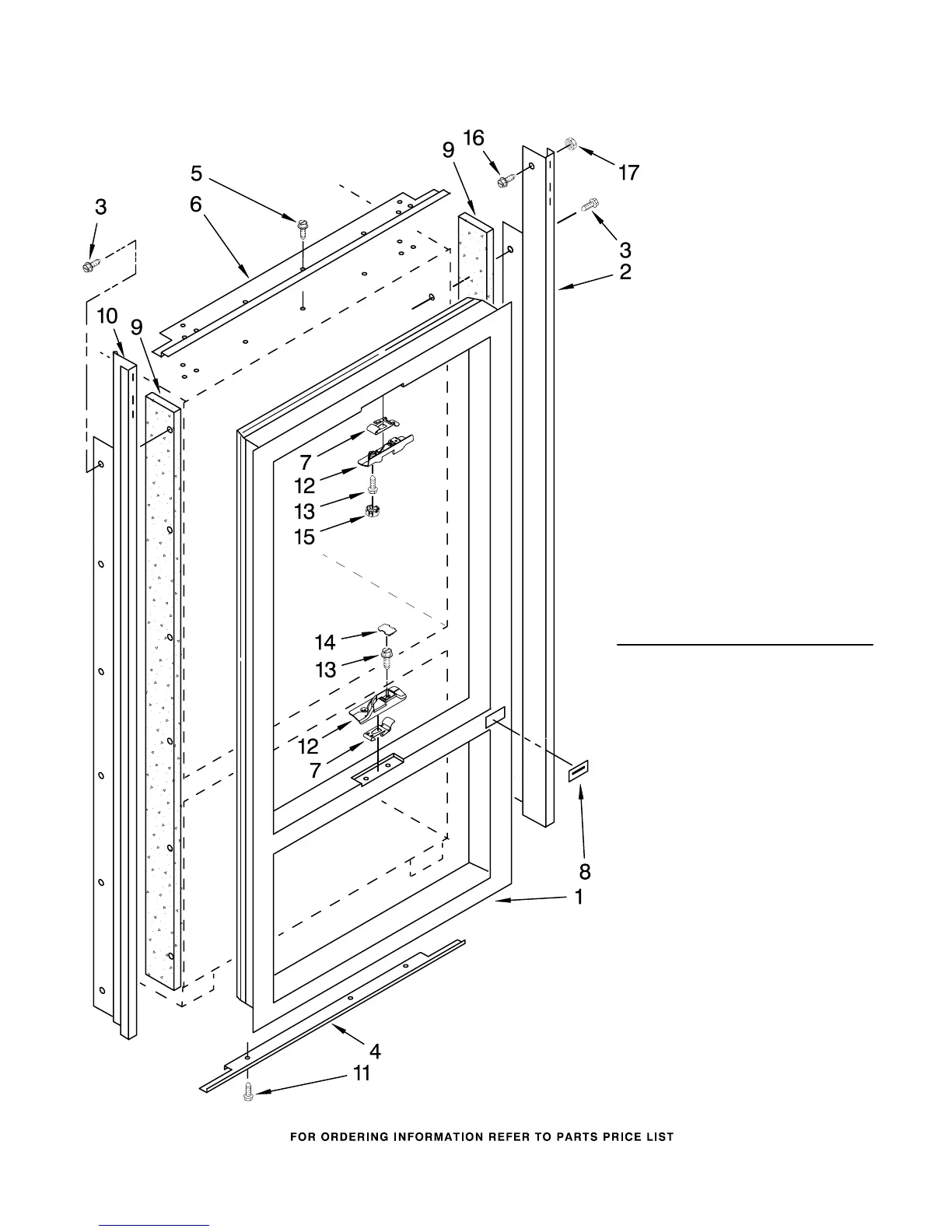

CABINET AND BREAKER TRIM PARTS
For Model: KBFC42FSS00
(Stainless Steel)
W10044170
Illus. Part
No. No. DESCRIPTION
1 Breaker, Trim
(Not Serviced)
2 2313911S Cabinet Trim,
Right Side
3 1163283 Screw
4 2307783 Cabinet Trim,
Bottom
5 486194 Screw
6 2314017 Cabinet Trim, Top
7 Cam, Mullion
2316857 Top
2316858 Bottom
8 2005782 Cover, Hinge
9 2005925 Seal−Trim,Side
10 2313912S Cabinet Trim,
Left Side
11 489464 Screw, 8−18 x 1/2
12 Contact, Mullion
2309230 Top
2309231 Bottom
13 486194 Screw
14 2316899 Cover, Screw (2)
(Square)
15 2317078 Cover, Screw (2)
(Round)
16 3400235 Screw (4)
17 2207415 Nut, Hex (4)
