KitchenAid KBLS36FTX02 - Page 19

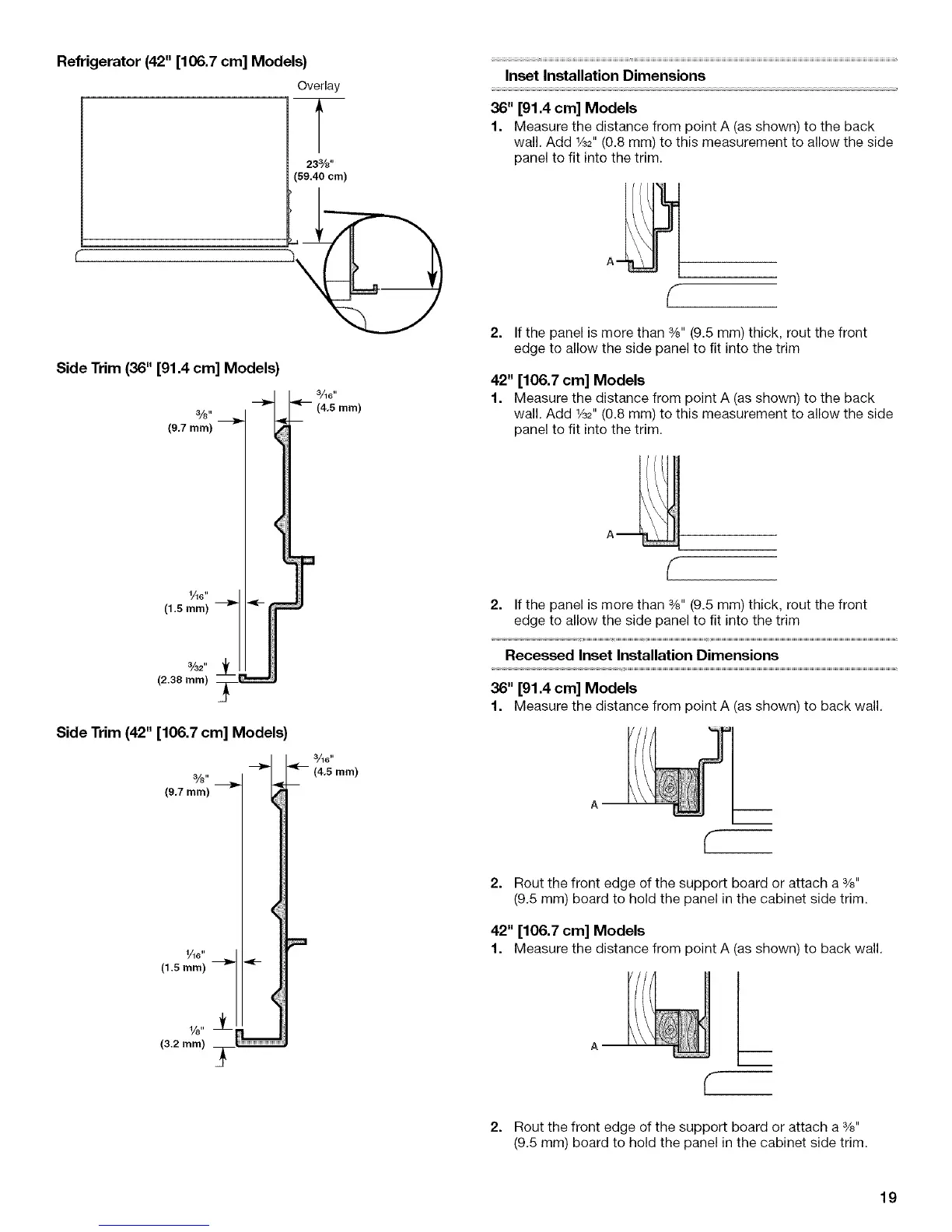

Refrigerator (42" [106.7 cm] Models)
Overlay
(59.40 cm)
Side Trim (36" [91.4 cm] Models)
3/8"
(9,7 mm)
(1.5 ram)
3/32"
(2.38 ram)
3/16"
(4,5 mm)
IT
Side Trim (42" [106.7 cm] Models)
3/8"
(9,7 rnm)
1/161'
(1.5 ram)
3/16"
_ (4,5 mm)
Inset Installation Dimensions
36" [91.4 cm] Models
1. Measure the distance from point A (as shown) to the back
wall. Add 1/32"(0.8 mm) to this measurement to allow the side
panel to fit into the trim.
2. If the panel is more than %" (9.5 mm) thick, rout the front
edge to allow the side panel to fit into the trim
42" [106.7 cm] Models
1. Measure the distance from point A (as shown) to the back
wall. Add 1/32"(0.8 mm) to this measurement to allow the side
panel to fit into the trim.
2. If the panel is more than %" (9.5 mm) thick, rout the front
edge to allow the side panel to fit into the trim
Recessed Inset Installation Dimensions
36" [91.4 cm] Models
1. Measure the distance from point A (as shown) to back wall.
A m
¢
2. Rout the front edge of the support board or attach a %"
(9.5 mm) board to hold the panel in the cabinet side trim.
42" [106.7 cm] Models
1. Measure the distance from point A (as shown) to back wall.
2. Rout the front edge of the support board or attach a %"
(9.5 mm) board to hold the panel in the cabinet side trim.
19
