KitchenAid KBRC36FMS02 - Cabinet and Breaker Trim Parts; Cabinet and Breaker Trim Components

3

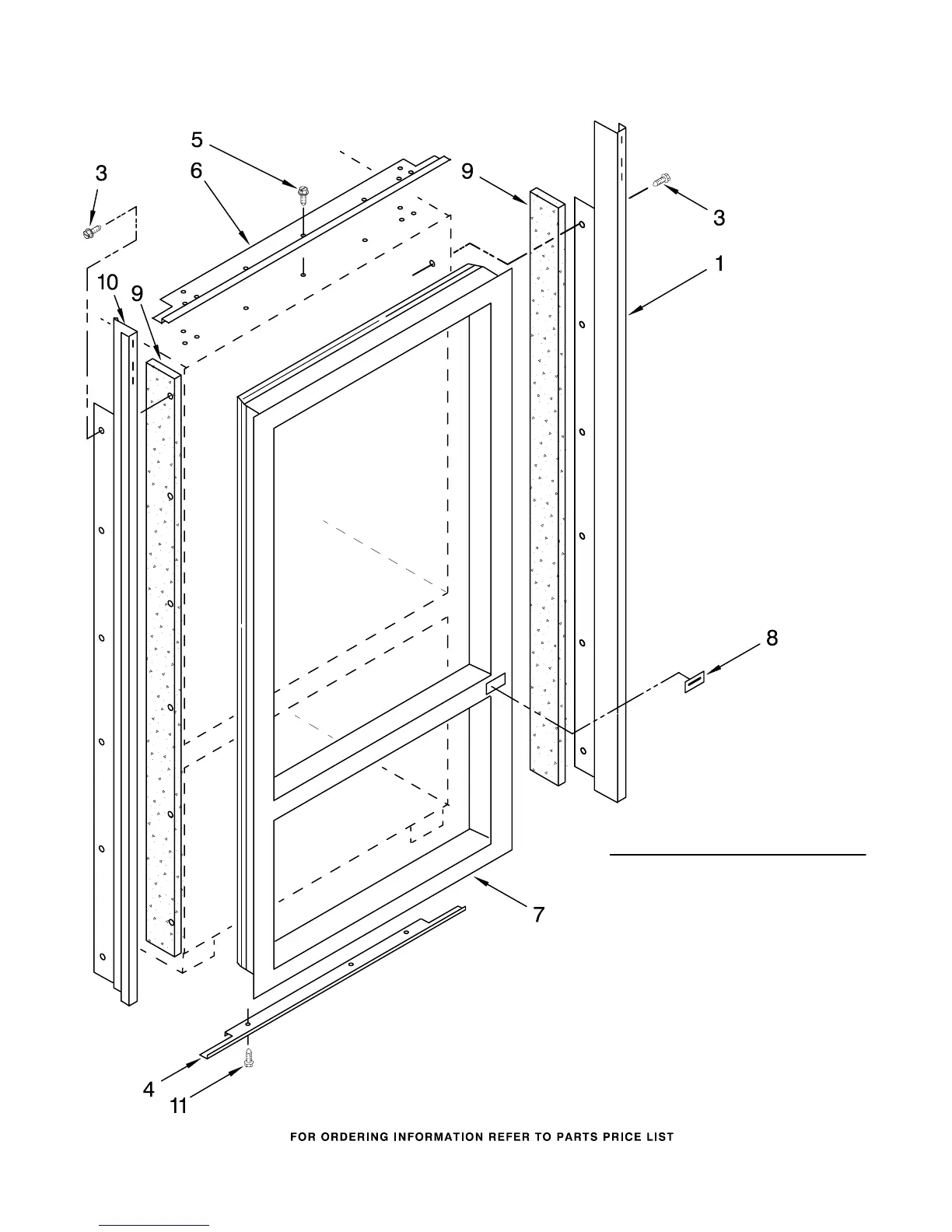

CABINET AND BREAKER TRIM PARTS
For Model: KBRC36FMS02
(Stainless Steel)
8214695
Illus. Part
No. No. DESCRIPTION
1 Cabinet Trim,
Right Side
2222552S Stainless Steel
3 1163283 Screw
4 2254724 Cabinet, Trim
(Bottom)
5 486194 Screw
6 2313994 Cabinet Trim, Top
7 Breaker Trim
(Not Serviced)
8 2005782 Cover, Hinge
9 2005925 Seal−Trim,Side
10 Cabinet Trim,
Left Side
2222553S Stainless Steel
11 489464 Screw, 8−18 x 1/2
