KitchenAid KBRC36FMS02 - Top Grille and Unit Cover Parts; Top Grille and Unit Cover Components

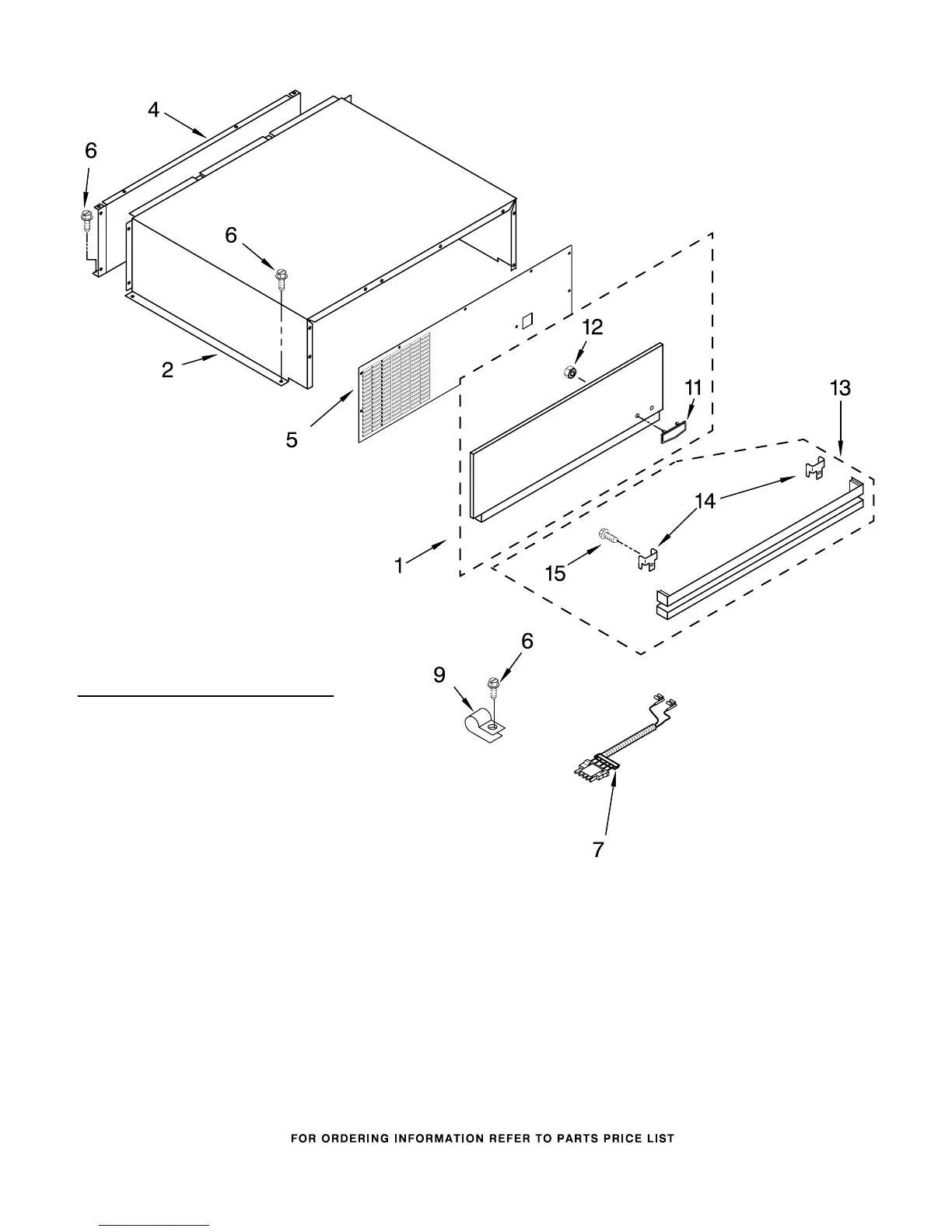

TOP GRILLE AND UNIT COVER PARTS
4
For Model: KBRC36FMS02
(Stainless Steel)
8214695
Illus. Part
No. No. DESCRIPTION
1 Top Grille
Assembly
2257410S Stainless Steel
2 2259320 Cover, Unit
4 2256466 Back Panel
5 2302974 Front,
Unit Cover
6 487415 Screw
7 2187423 Wire Assembly
9 489348 Clamp
11 2005292 Nameplate
12 2004333 Nut
13 Louver, Vent
2254765S Stainless Steel
14 2254759 Bracket, Louver
15 488879 Screw 8−32 x 5/16
