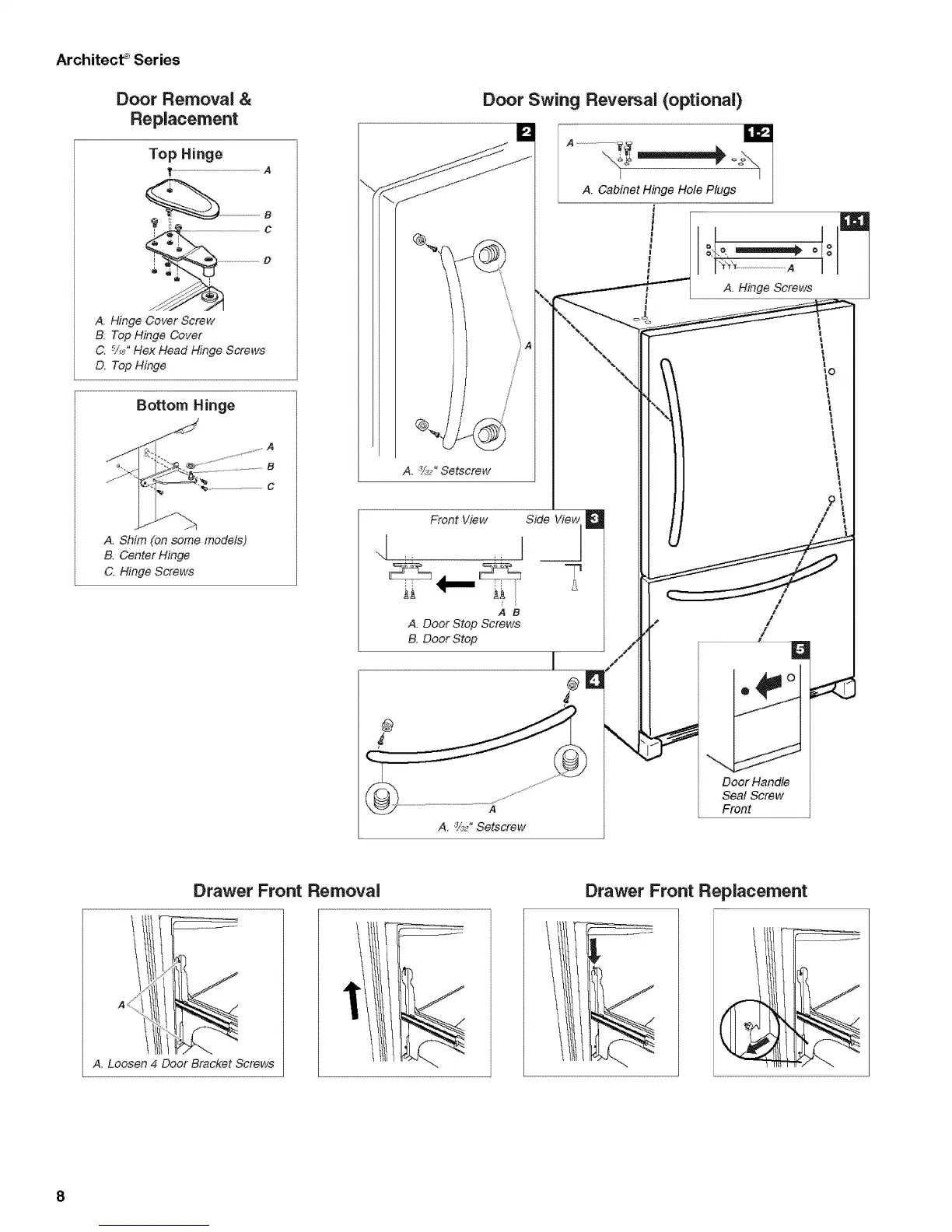

KitchenAid KBRS20EVBL4 - Door Removal & Replacement; Drawer Front Removal

Architect _ Series
Door Removal &
Replacement
Top Hinge
T
i .....
A. Hinge Cover Screw
B. Top Hinge Cover
C. 5if_,,Hex Head Hinge Screws
D. Top Hinge
Bottom Hinge
A. Shim (on some models)
B. Center Hinge
C. Hinge Screws
\
4
@
Door Swing Reversal (optional)
A. 3/32"Setscrew
Front View Side View
A B
A. Door Stop Screws
B. Door Stop
I
I "_£T...............................A
A. Hinge Screws
®
Door Handle
Seal Screw
Front
Drawer Front Removal
A. Loosen 4 Door Bracket Screws
Drawer Front Replacement
