Additional Parts Supplied (on some models)
■ 1.5-volt “D” size alkaline battery
■ Rotisserie motor mounting bracket
■ Rotisserie motor
■ Rotisserie forks
■ Rotisserie spit
■ Smoker box
Location Requirements
Select a location that provides minimum exposure to wind and
traffic paths. The location should be away from strong draft
areas.
Do not obstruct flow of combustion and ventilation air.
Clearance to combustible construction for built-in and
freestanding outdoor grills:
■ A minimum of 24" (58.0 cm) must be maintained between the
front of the grill hood, sides and back of the grill and any
combustible construction.
■ A zero clearance may be maintained on the insulated jacket
surface to combustible construction.
Rotisserie
A 6" (15.2 cm) minimum clearance is needed for the rotisserie
motor.
A grounded, 3-prong outlet located to the left of the grill is
required. See “Electrical Requirements” section.

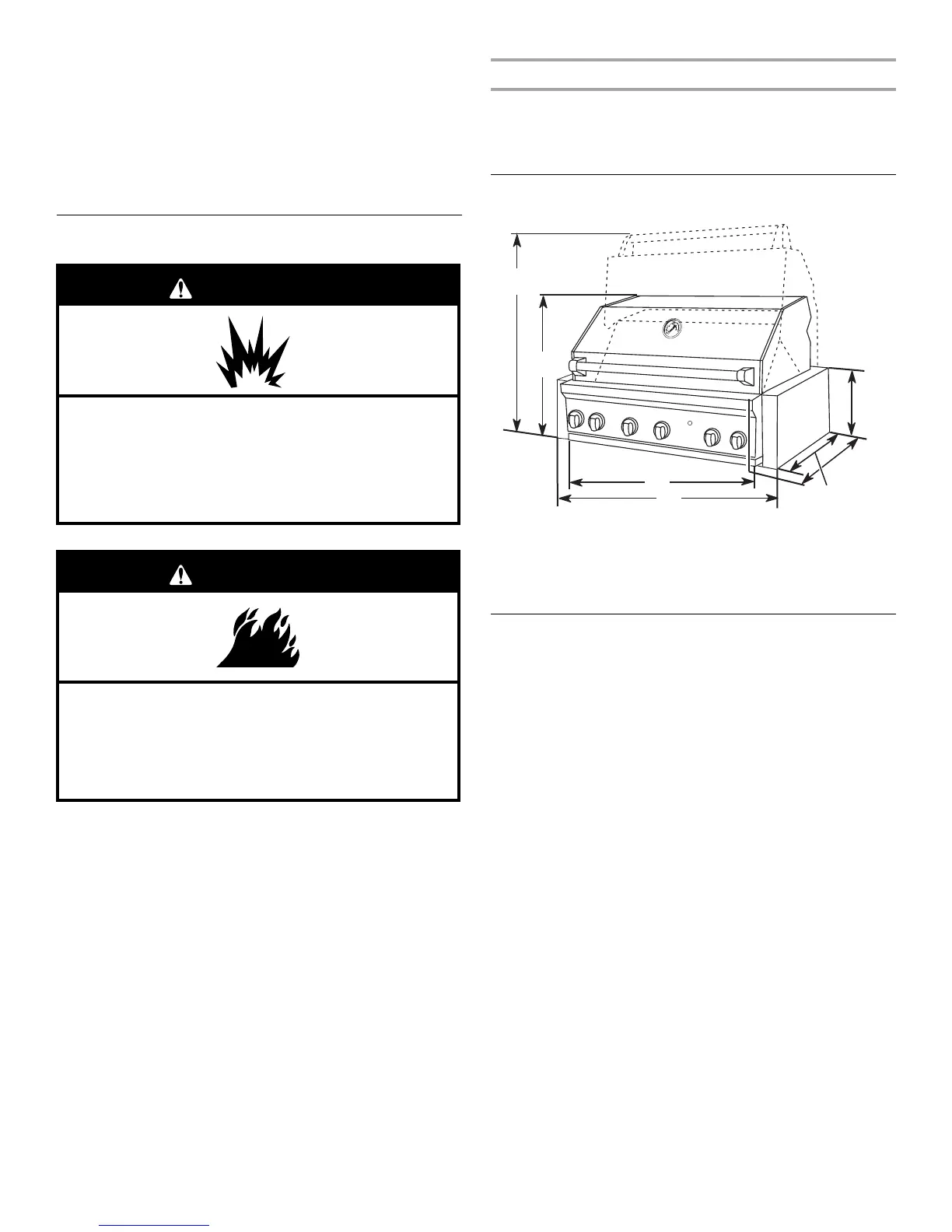

Product Dimensions
Built-In Outdoor Grill Enclosure
This built-in outdoor grill is only for installation in a built-in
enclosure constructed of combustible and non-combustible
materials. Some types of non-combustible materials could be
brick, firewall or steel. Some types of combustible materials
could be wood or laminate.
The enclosure for the built-in outdoor grill is to be a minimum
of 11¾" [29.8 cm] high x 24" [61.0 cm] deep x (33" [83.8 cm] for
27" [68.6 cm] grill and 42" [106.7 cm] for 36" [91.4 cm] grill and
54" [137.2 cm] for 48" [121.9 cm] grill) wide.
WARNING
Explosion Hazard
Do not store fuel tank in a garage or indoors.
Do not store grill with fuel tank in a garage or indoors.
Failure to follow these instructions can result in death,
explosion, or fire.
WARNING
Fire Hazard
Do not use grill near combustible materials.
Do not store combustible materials near grill.
Doing so can result in death or fire.
A. 27" (68.6 cm)
36" (91.4 cm)
48" (121.9 cm)
B. 27" (68.6 cm) models - 32
⁷⁄₈ " (83.3 cm)
36" (91.4 cm) models - 41
⁷⁄₈ " (106.2 cm)
48" (121.9 cm) models - 53
⁷⁄₈ " (136.6 cm)
25⁵⁄₈"
(65.0 cm)
38"
(96.5 cm)
27¾"
(70.5 cm)
23⁷⁄₈"
(60.5 cm)
11¾"
(29.8 cm)
A
B
