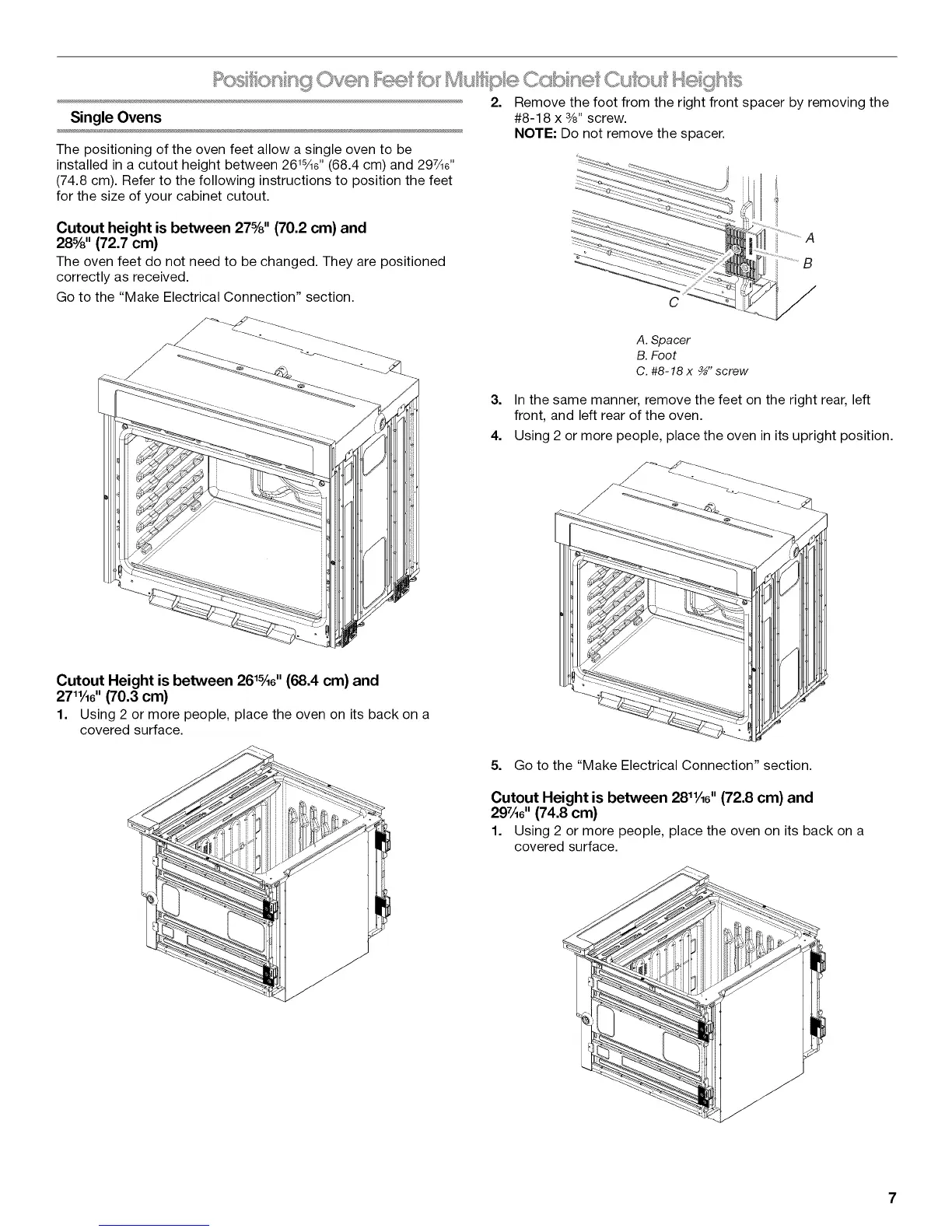

KitchenAid KEBS207BSS00 - Positioning Oven Feet for Multiple Cabinet Cutout Heights

CL£ou i
2. Remove the foot from the right front spacer by removing the
Single Ovens #8-18 x 3/8"screw.
NOTE: Do not remove the spacer.
The positioning of the oven feet allow a single oven to be
installed in a cutout height between 2@sAe'' (68.4 cm) and 297Ae''
(74.8 cm). Refer to the following instructions to position the feet
for the size of your cabinet cutout.
Cutout height is between 27%" (70.2 cm) and
28%" (72.7 cm)
The oven feet do not need to be changed. They are positioned
correctly as received.
Go to the "Make Electrical Connection" section.
A
B
C
A. Spacer
B. Foot
C. #8-18 x _" screw
3. In the same manner, remove the feet on the right rear, left
front, and left rear of the oven.
4. Using 2 or more people, place the oven in its upright position.
Cutout Height is between 26_A6'' (68.4 cm) and
27_A6"(70.3 cm)
1. Using 2 or more people, place the oven on its back on a
covered surface.
5. Go to the "Make Electrical Connection" section.
Cutout Height is between 28_A6"(72.8 cm) and
297A6'' (74.8 cm)
1. Using 2 or more people, place the oven on its back on a
covered surface.
