2.
3.

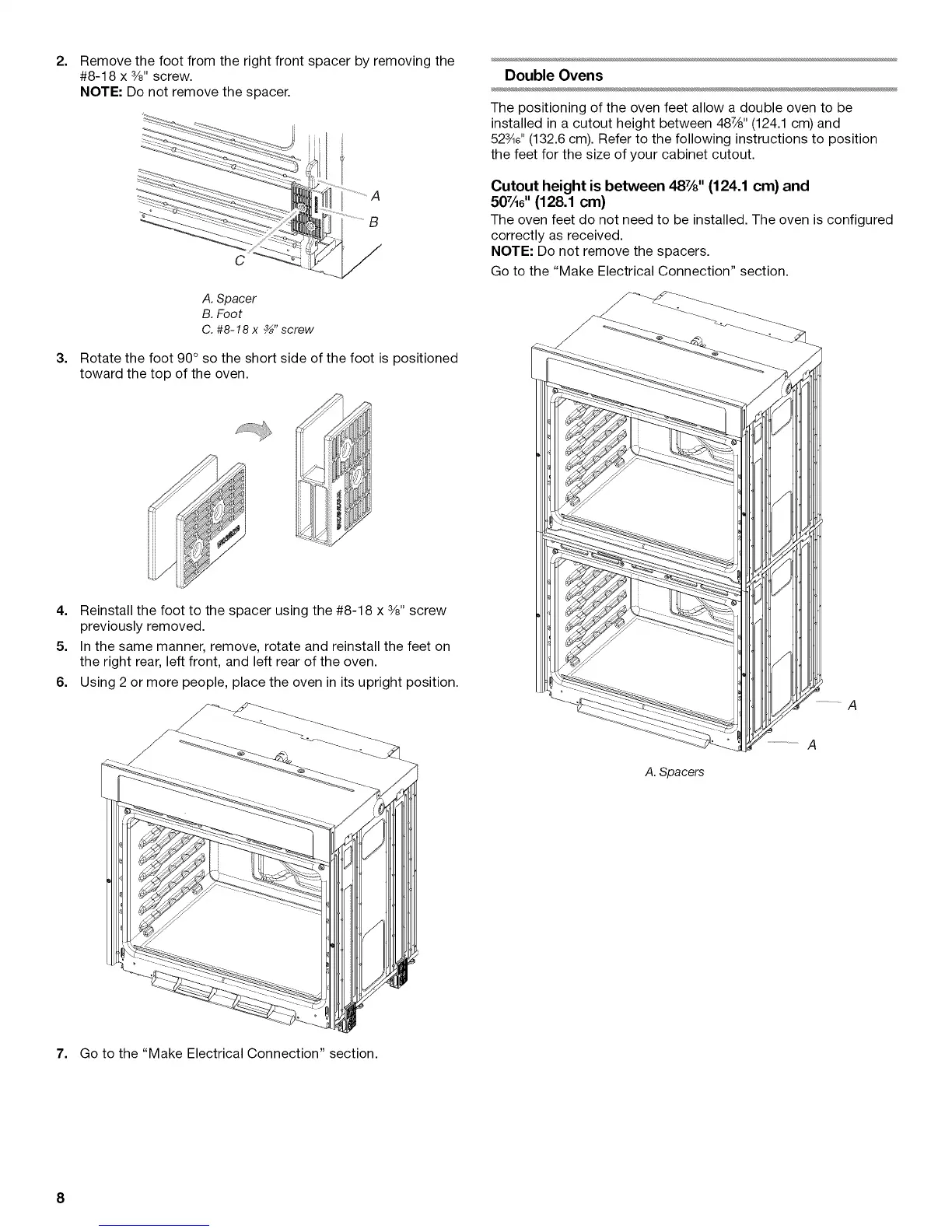

Remove the foot from the right front spacer by removing the
#8-18 x 3/8"screw.
NOTE: Do not remove the spacer.
A
B
C
A. Spacer
B. Foot
C. #8-18 x _" screw
Rotate the foot 90° so the short side of the foot is positioned
toward the top of the oven.
Double Ovens
The positioning of the oven feet allow a double oven to be
installed in a cutout height between 48%" (124.1 cm) and
52¾e" (132.6 cm). Refer to the following instructions to position
the feet for the size of your cabinet cutout.
Cutout height is between 48%" (124.1 cm) and
507A6'' (128.1 cm)
The oven feet do not need to be installed. The oven is configured
correctly as received.
NOTE: Do not remove the spacers.
Go to the "Make Electrical Connection" section.
4. Reinstall the foot to the spacer using the #8-18 x 3/8"screw
previously removed.
5. In the same manner, remove, rotate and reinstall the feet on
the right rear, left front, and left rear of the oven.
6. Using 2 or more people, place the oven in its upright position.
A. Spacers
A
A
7. Go to the "Make Electrical Connection" section.
8
To Next Page
