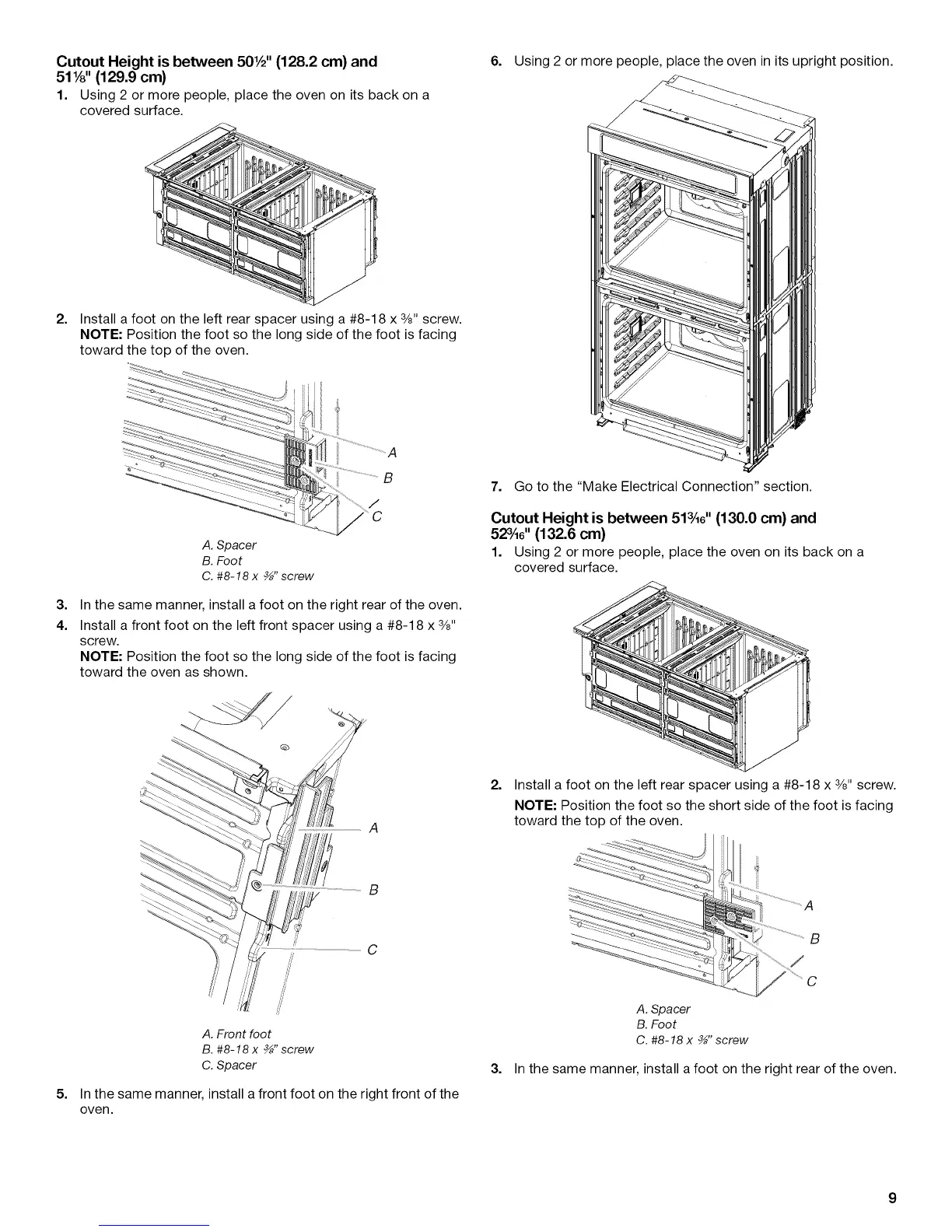

CutoutHeightisbetween501/2''(128.2cm)and
511/8"(129.9cm)
1. Using 2 or more people, place the oven on itsback on a
covered surface.
6. Using 2 or more people, place the oven in its upright position.
2.
Install a foot on the left rear spacer using a #8-18 x 3/8"screw.
NOTE: Position the foot so the long side of the foot is facing
toward the top of the oven.
3.
4.
5.
A. Spacer
B. Foot
C. #8-18 x _" screw
In the same manner, install a foot on the right rear of the oven.
Install a front foot on the left front spacer using a #8-18 x 3/8"
screw.
NOTE: Position the foot so the long side of the foot is facing
toward the oven as shown.
A
B
#
A. Front foot
B. #8-18 x _" screw
C. Spacer
In the same manner, install a front foot on the right front of the
oven.
7. Go to the "Make Electrical Connection" section.
Cutout Height is between 513A6'' (130.0 cm) and
523A6'' (132.6 cm)
1. Using 2 or more people, place the oven on its back on a
covered surface.
2.
Install a foot on the left rear spacer using a #8-18 x 3/8"screw.
NOTE: Position the foot so the short side of the foot is facing
toward the top of the oven.
B
C
A. Spacer
B. Foot
C. #8-18 x _" screw
3. In the same manner, install a foot on the right rear of the oven.
