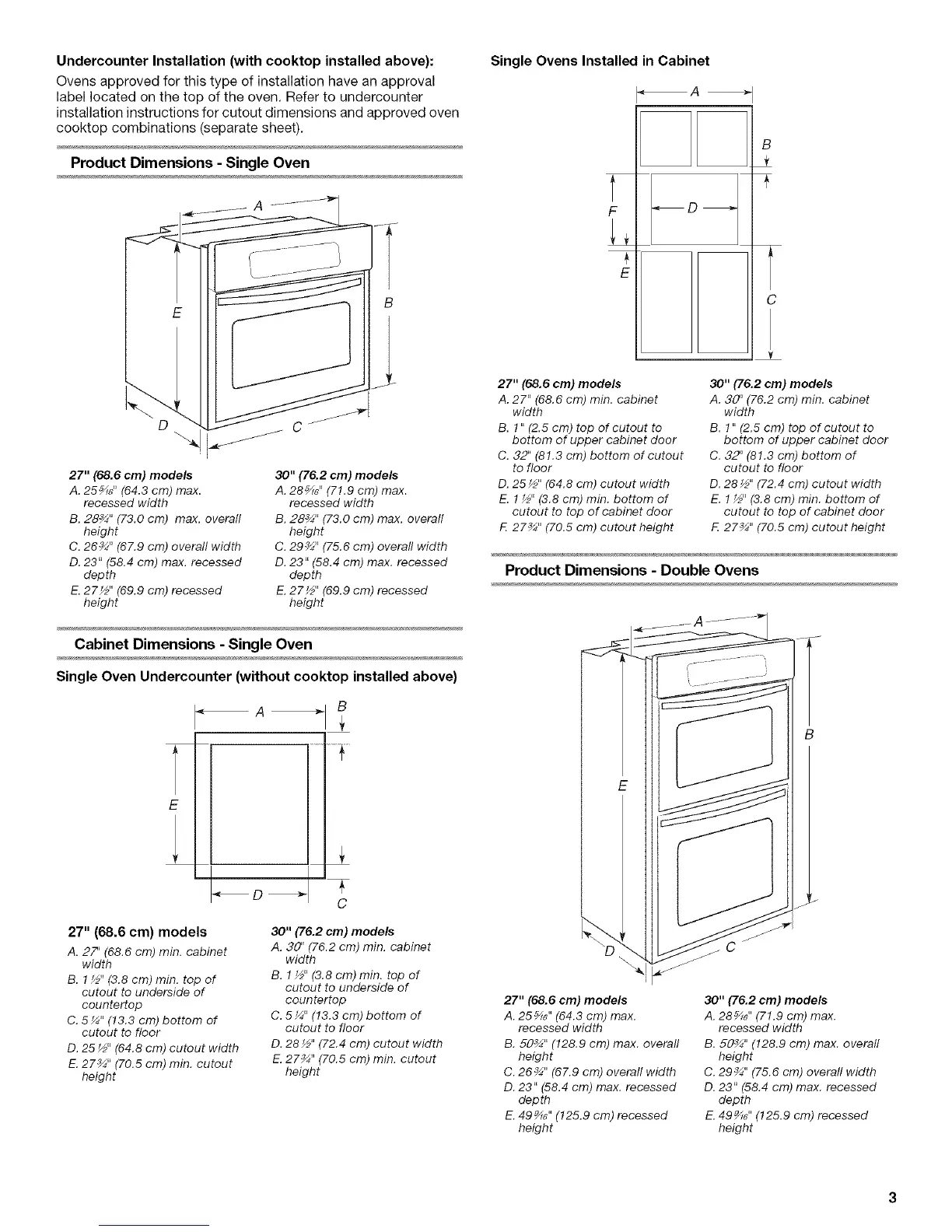

Undercounter Installation (with cooktop installed above):
Ovens approved for this type of installation have an approval
label located on the top of the oven. Refer to undercounter
installation instructions for cutout dimensions and approved oven
cooktop combinations (separate sheet).
Product Dimensions - Single Oven
A
B
D
27" (68.6 cm) models
A. 25 _£' (64.3 cm) max.
recessed width
B. 28¾" (73.0 cm) max. overafl
height
C. 26_" (67.9 cm) overall width
D. 23" (58.4 cm) max. recessed
depth
E. 27½" (69.9 cm) recessed
height
30" (76.2 cm) models
A. 28_" (7!.9 cm) max.
recessed width
B. 28_" (73.0 cm) max. overall
height
C. 29_" (75.6 cm) overall width
D. 23" (58.4 cm) max. recessed
depth
E. 27½" (69.9 cm) recessed
height
Cabinet Dimensions - Single Oven
Single Oven Undercounter (without cooktop installed above)
A
_D_
C
27" (68.6 cm) models
A. 27' (68.6 cm) min. cabinet
width
B. 1½" (3.S cm) min. top of
cutout to underside of
countertop
C. 5_" (13.3 cm) bottom of
cutout to floor
D. 25½" (64.8 cm) cutout width
E. 27_" (70.5 cm) min. cutout
height
30" ('76.2 cm) models
A. 30" (76.2 cm) rain. cabinet
width
B. 1 ½" (3.8 cm) min. top of
cutout to underside of
countertep
C. 5 _" (13.3 cm) bottom of
cutout to floor
D. 28½" (72.4 cm) cutout width
E. 27¾" (70.5 cm) min. cutout
height
Single Ovens Installed in Cabinet
A
B
F -- D_
E
C
v
27" (68.6 cm) models
A. 27" (68.6 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 32' (8!.3 cm) bottom of cutout
to floor
D. 25½" (64.8 cm) cutout width
E. 1½" (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 27_" (70.5 cm) cutout height
30" ('76.2 cm) models
A. 30" (76.2 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 32" (81.3 cm) bottom of
cutout to floor
D. 28½" (72.4 cm) cutout width
E. 1½" (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 27_" (70.5 cm) cutout height
Product Dimensions - Double Ovens
27" (68.6 cm) models
A. 25 _6" (64.3 cm) max.
recessed width
B. 50_" (128.9 cm) max. overall
height
C. 26 _" (67.9 cm) overall width
D. 23" (58.4 cm) max. recessed
depth
E. 49_£' (125.9 cm) recessed
height
30" ('76.2 cm) models
A. 28_" (71.9 cm) max.
recessed width
B. 50_" (128.9 cm) max. overall
height
C. 29_" (75.6 cm) overall width
D. 23" (58.4 cm) max. recessed
depth
E. 49_6" (125.9 cm) recessed
height
