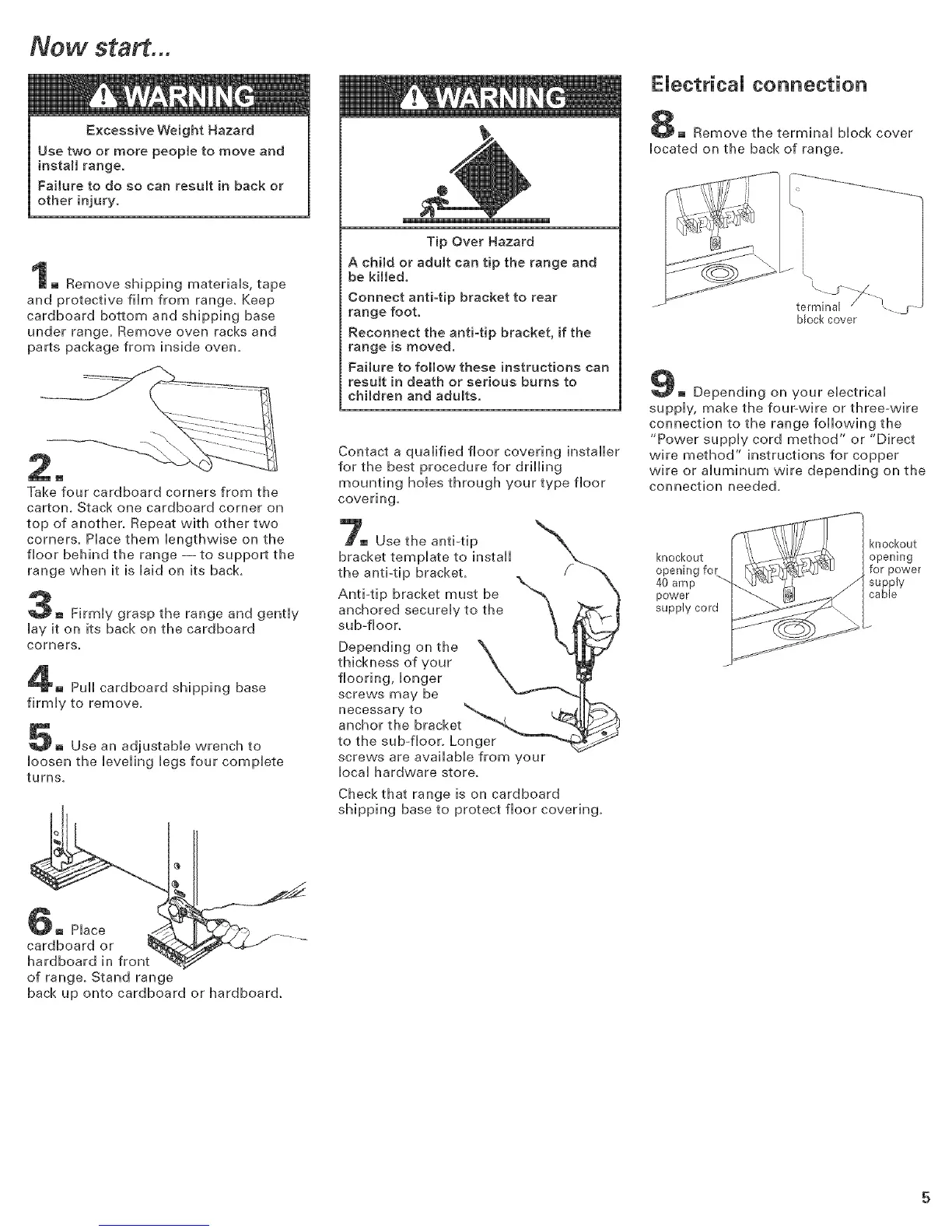

New start...
Excessive Weight Hazard
Use two or more people to move and
install range.
Failure to do so can result in back or
other injury.
I M Remove shipping materiab, tape
and protective film from range. Keep
cardboard bottom and shipping base
under range, Remove oven racks and
parts package from inside oven.
Take four cardboard corners from the
carton. Stack one cardboard corner on
top of another, Repeat with other two
corners. Piace them bngthwise on the
floor behind the range --to support the
range when it is iaid on its back
R Firmiy grasp the range and gently
Hay it on its back on the cardboard
corners.
Pull cardboard shipping base
firmiy to remove.
5[] Use an adjustable wrench to
loosen the leveling legs four complete
turns.
Piace
cardboard or
hardboard in front
of range. Stand range
back up onto cardboard or hardboard.
Tip Over Hazard
A child or aduJt can tip the range and
be kiJ[ed,
Connect anti-tip bracket to rear
range foot.
Reconnect the anti-tip bracket, if the
range is moved.
Failure to follow these instructions can
result in death or serious burns to
children and adults,
Contact a qualified floor covering installer
for the best procedure for drilling
mounting holes through your type floor
covering,
screws may be
necessary to
anchor the bracket
to the sub-floor. Longer
screws are available from your
local hardware store,
Check that range is on cardboard
shipping base to protect floor covering.
EJectricaJ connection
Remove the terminal block cover
located on the back of range.
,irmJTi-- -
block cover
9m Depending on your electrical
supply, make the fouFwire or three-wire
connection to the range following the
"Power supply cord method" or "Direct
wire method" instructions for copper
wire or aluminum wire depending on the
connection needed.
knockout
opening fo _...
40 amp
power
supply cord
knockout
opening
• for power
supply
cable
f
