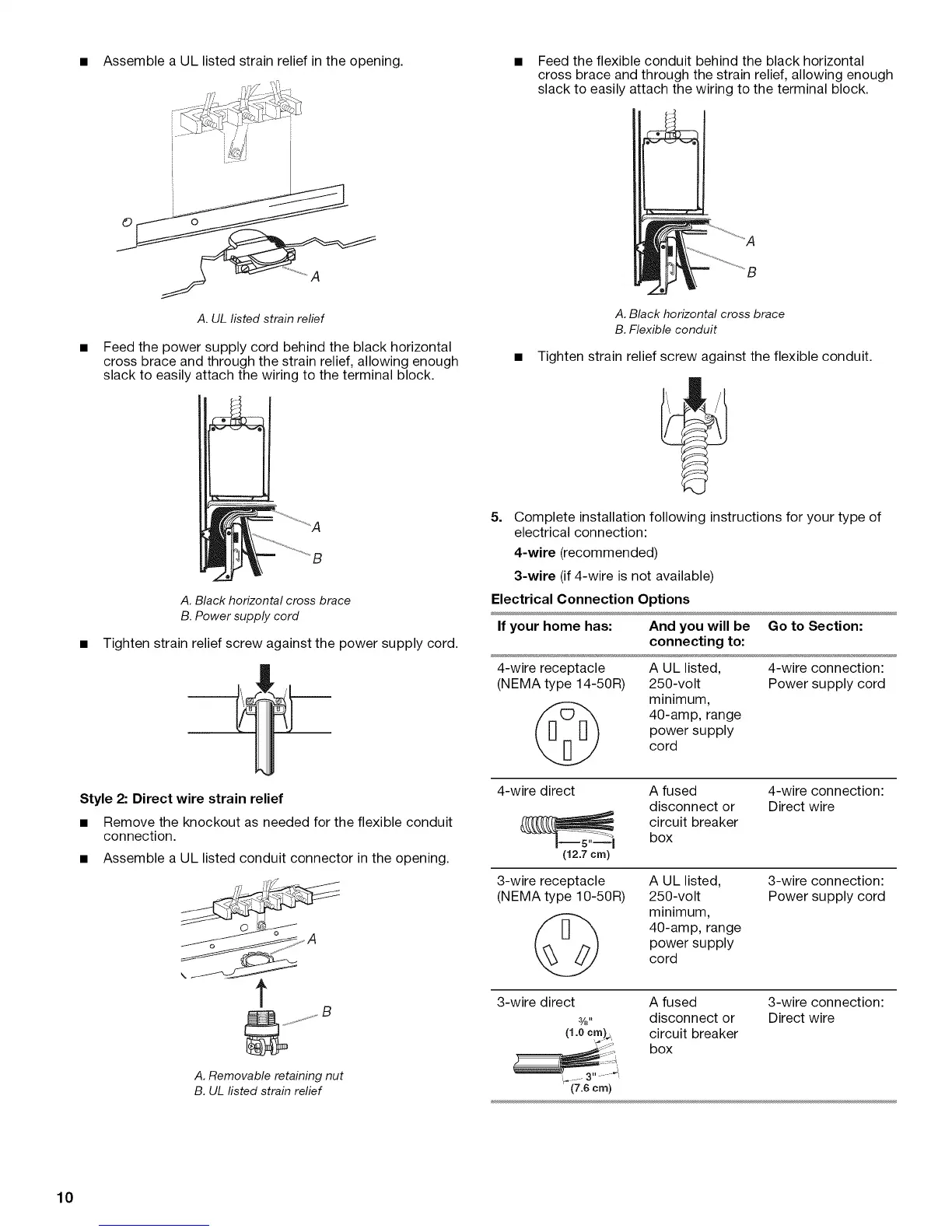

• AssembleaULlistedstrainreliefintheopening.
Feedtheflexibleconduitbehindtheblackhorizontal
crossbraceandthroughthestrainrelief,allowingenough
slacktoeasilyattachthewiringtotheterminalblock.
A
A. UL listed strain relief
Feed the power supply cord behind the black horizontal
cross brace and through the strain relief, allowing enough
slack to easily attach the wiring to the terminal block.
A. Black horizontal cross brace
B. Power supply cord
• Tighten strain relief screw against the power supply cord.
Style 2: Direct wire strain relief
• Remove the knockout as needed for the flexible conduit
connection.
• Assemble a UL listed conduit connector in the opening.
A. Removable retaining nut
B. UL fisted strain relief
A. Black horizontal cross brace
B. Flexible conduit
• Tighten strain relief screw against the flexible conduit.
5. Complete installation following instructions for your type of
electrical connection:
4-wire (recommended)
3-wire (if 4-wire is not available)
Electrical Connection Options
If your home has: And you will be Go to Section:
connecting to:
4-wire receptacle A UL listed,
(NEMA type 14-50R) 250-volt
minimum,
_ _j,,_ 40-amp, range
power supply
cord
4-wire connection:
Power supply cord
4-wire direct A fused
disconnect or
circuit breakerbox
(12.7 cm)
4-wire connection:
Direct wire
3-wire receptacle A UL listed,
(NEMA type 10-50R) 250-volt
minimum,
40-amp, range
power supply
cord
3-wire connection:
Power supply cord
3-wire direct
3/8"
(7.6 crn)
A fused
disconnect or
circuit breaker
box
3-wire connection:
Direct wire
10
