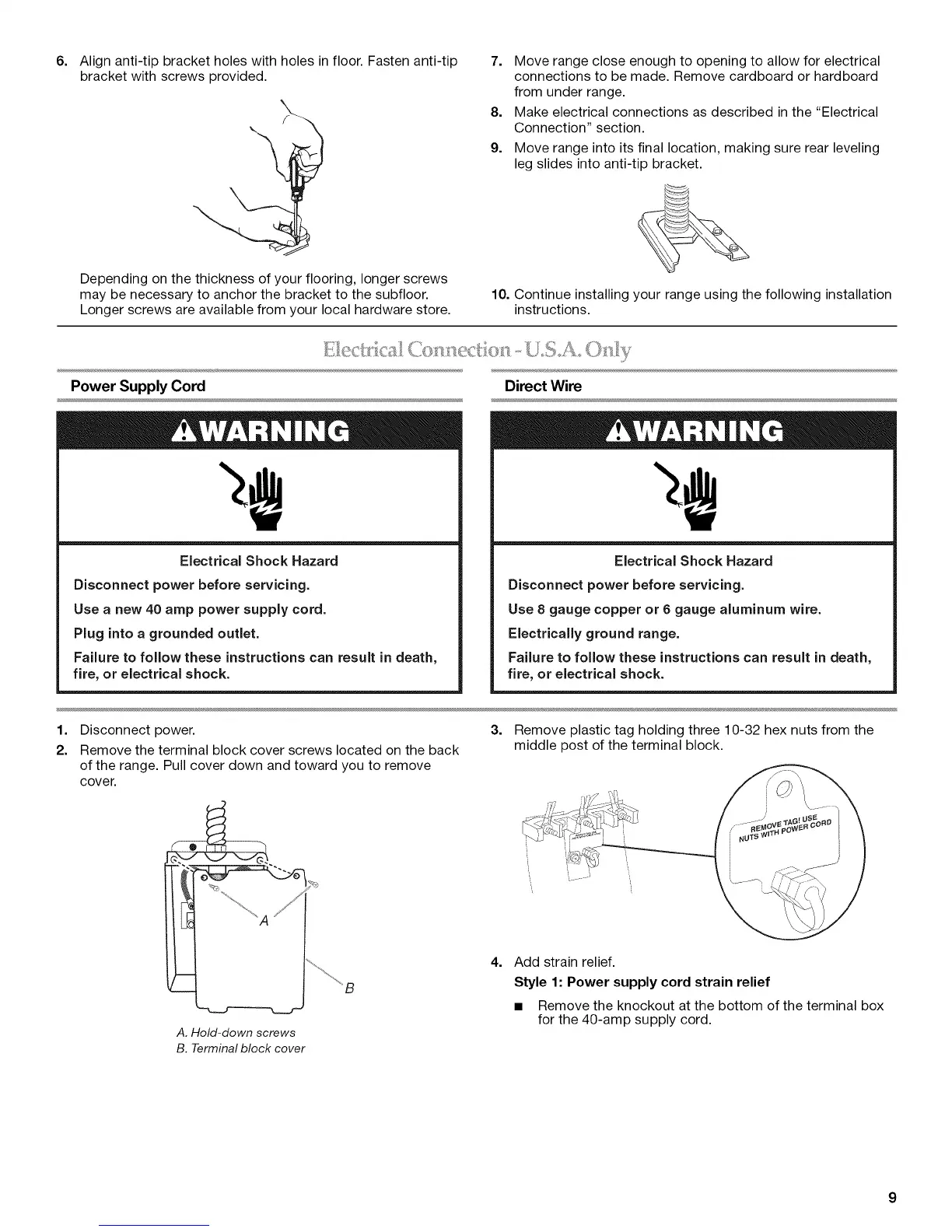

6.
Align anti-tip bracket holes with holes in floor. Fasten anti-tip
bracket with screws provided.
p
Depending on the thickness of your flooring, longer screws
may be necessary to anchor the bracket to the subfloor.
Longer screws are available from your local hardware store.
7. Move range close enough to opening to allow for electrical
connections to be made. Remove cardboard or hardboard
from under range.
8. Make electrical connections as described in the "Electrical
Connection" section.
9. Move range into its final location, making sure rear leveling
leg slides into anti-tip bracket.
10. Continue installing your range using the following installation
instructions.
Power Supply Cord
Electrical Shock Hazard
Disconnect power before servicing.
Use a new 40 amp power supply cord.
Plug into a grounded outlet.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Direct Wire
Electrical Shock Hazard
Disconnect power before servicing.
Use 8 gauge copper or 6 gauge aluminum wire.
Electricaly ground range.
Falure to folow these instructions can result in death,
fire, or electrical shock.
1. Disconnect power.
2. Remove the terminal block cover screws located on the back
of the range. Pull cover down and toward you to remove
cover.
%%%% / '
A. Hold-down screws
B. Terminalblock cover
3. Remove plastic tag holding three 10-32 hex nuts from the
middle post of the terminal block.
4, Add strain relief.
Style 1: Power supply cord strain relief
• Remove the knockout at the bottom of the terminal box
for the 40-amp supply cord.
